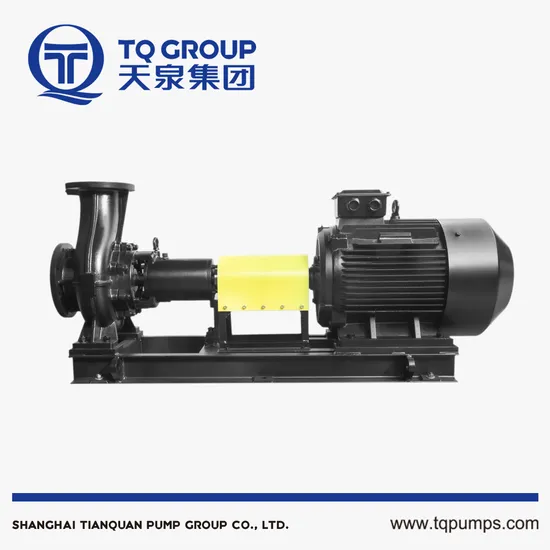

Tqpumps Twx Horizontal End Suction Centrifugal Pump Water Pump Long-Coupled DN300 Variants -1450rpm Nkg Substitutes 12inch

US$2,000.00-4,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
300TWX52-200/4
Max.Head
10-30m
Max.Capacity
300-400 L/min
Driving Type
Motor
Impeller Number
Single-Stage Pump
Influent Type of Impeller
Single Suction Pump
Position of Pump Shaft
Horizontal Pump
Mounting Height
Suction Centrifugal
Impeller
Closed
Usage
Pump, Pumps, Circulating Pump
Pump Case Material
Ductile Iron
Diameter of Suction
350
Iameter of Discharge
300
Standard
ISO2858
Transport Package
Wooden
Trademark
Tian Pump
Origin
China
HS Code
8413701010

Packaging & Delivery

Package Size
2890.00cm * 789.00cm * 670.00cm
Package Gross Weight
780.000kg

Product Description

Product Description
TQ PUMP TWX end-suction long-coupled pumps are non-self-priming, single-stage, centrifugal volute pumps with axial-suction port, radial-discharge port, and horizontal shaft. The structure is similar to Grundfo's NKG.
Application
Product Advantage
Product Structural Drawing
Hydraulic Coverage
Product Parameters
Type Capacity Head Speed Eff. Shaft
Power		 Motor Power (NPSH)r Weight
Q H n η Pa PM (m) (kg)
(m3/h) (L/s) (m) (r/min) (%) (kW) (kW)
300TWX38-110/4 560 155.6 43.7 1480 74 90.12 110 8 1520
680 188.9 41.6 79 97.58 8.2
800 222.2 38 81 102.27 9.1
880 244.4 35.1 80 105.21 9.8
960 266.7 32.2 77 109.40 10.5
300TWX42-132/4 616 171.1 47.7 1480 74 108.20 132 7.4 1620
748 207.8 45.6 79 117.65 8.2
880 244.4 42 81 124.34 9.5
968 268.9 38.9 80 128.26 10
1056 293.3 35.2 77 131.55 11
300TWX46-160/4 687 190.8 51.7 1480 73 132.58 160 7.2 2150
835 231.9 49.6 78 144.69 8.1
982 272.8 46 81 151.97 9.4
1080 300 42.9 82 153.97 10.3
1178 327.2 39.2 81 155.35 11.5
300TWX50-185/4 724 201.1 55 1480 77 140.92 185 7 2200
880 244.4 53.3 81 157.79 8
1035 287.5 50 83 169.90 9.3
1139 316.4 47 82 177.90 10.5
1242 345 44.6 81 186.35 12
300TWX52-200/4 766 212.8 57.6 1480 77 156.15 200 6.8 2220
930 258.3 56 81 175.21 8
1094 303.9 52 83 186.77 9.8
1203 334.2 50 82 199.89 11.2
1313 364.7 45 81 198.77 12.5
Detailed Photos
Product Attributes
Attribute Attributes Value Optional
Installation Inlet diameter (mm) DN350 /
Outlet diameter (mm) DN300 /
Direction of rotation Clockwise from the motor to the pump /
Entrance orientation level in /
Exit orientation level out /
Base form /
Motor Motor model
Number of motor phases 3 /
Rated voltage (V) 380
Power frequency (Hz) 50 60
Insulation class F
Protection class IP54 IP55
Installation Type
Energy efficiency rating IE3 IE4/IE5
Flange Grade GB/T17241.6/EN1092-2 PN16
