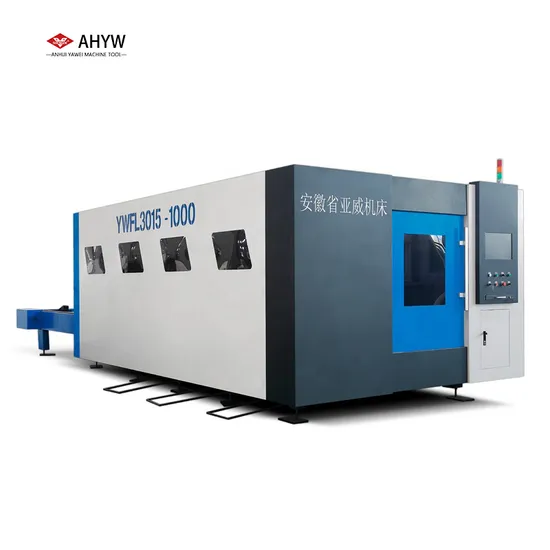

Ywfl 3015 1500W 3000W 6000W Enclosed Metal Sheet Fiber Laser Cutting Machine

Product Description

Note: Dear customers, machines due to different parameters, configuration and other requirements will produce different prices, please consult customer service.
To view more products, please click on product keywords...

Main Products
Press Brake	Laser Cutting Machine	Bending Center
Shearing Machine	Handheld Laser Welder	punch and shear machine
Rolling Machine	grooving machine	punching machine

AHYW Sheet Metal Fiber Laser Cutting Machine With Shuttle Table And Cover

YWFL Series Metal Sheet Laser Cutting Machine is a perfect laser machine with pallet changer and protective cover. You gain the best of both with the most up-to-date technology.
It adopts China famous Raycus laser device(option: IPG or nLIGHT brand). Equipped with efficient transmission system by Taiwan gear rack after grinding process and high-precision linear guide. Advanced automatic CNC system, group into high precised CNC fiber laser cutting machine.
Mainly applicable for carbon steel, stainless steel and aluminum alloy etc such metals' cutting and molding.With advantage of High speed, High precision, High efficiency and High cost performance.

Applicable	sheet metal cutting
Cutting size	3000*1500mm
Laser power	3000W
Loading	40 flat rack
Weight	5500kg
Unique features	unique shuttle table, machine bed structure and extrusion aluminum gantry, optimized control.

Sheet Metal Laser Cutting Machine Exclusive Features: 1.Unique leading climbing pallets ,synchronous exchanging tables and at same height. faster and better for cutting accuracy.
2.Fully enclosed cutting table with powerful blowser and Smart control exhaust system that create cleaner jobshop.
3.Thick sheet metal welded industrial grade machine tool bed ,true heat-treatment ,annealing machine bed, time aging, vibration residule stress relief ,unique"W"beams strengthened.
4.Aviation grade extruding aluminium beam, no any pinhole allowed.lighter in weight but more tough.
5.For high-power laser machine, exclusively using graphite sheet as dunnage to protect machine bed in case of heat damage.
LASER SOURCE OPTIONS
Raycus Max nLIGHT IPG



WORKING CAPACITY
Anhui Yawei sheet metal fiber laser cutting machines included many models according to your material requirements, available in working sizes 3015, 4020, 6020, up to 18m and with laser powers ranging from 1000W to 30000W Fiber Laser.
CONTROL SYSTEM
With Bochu Control system and software with English language, applicable insert files with DXF. Or AI format. Drawing in the software is also okay. Software with fly cutting mode for cutting same products for save time. With Nesting function, autonomic compose type for saving materials by saving spaces.

CUTTING HEAD
Quickly change the focusing mirror of different focal lengths, adapt to a variety of power processing, to meet the cutting of different thickness plates. Quickly and accurately focus work more time-saving and better.
HEIGHT CONTROLLER - BCS100 V3.0
BCS100 capacitive height controller is a high-performance control device which uses closed-loop control method. Adapt to any cutting head and nozzle. Support alarm while hitting the board and beyond the edge. Support leapfrogs and segmented piercing, Edge Seek function. Support functions to detect the head height in real time.
COOLING SYSTEM
When laser head cut metals, there will produce some hot energy in laser head and laser device. Water chiller is for cooling this two parts. Laser head part, mainly cooling the mirrors. Temperature in the water chiller is auto adjustment, mainly set up with 25 degree around. Water in chiller should be pure water.


MACHINE STRUCTURE
X-axis beam is Casting aluminum alloy structure, machine bed is casting structure, it can make sure long time machine bed not out of shape. Work stable is very important for the machine performance after long time using.A heavier frame means less vibration and better accuracy. Auto changing pallet system allows over 1800kg loading weight.
SHUTTLE TABLE
Automatic shuttle table for faster loading materials and offload finished parts, dramatically save overall cycle time without a laser sitting idle for prolonged periods, no need to wait for operators to load sheets and unload parts.


Applications


Application Material
Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet(tube), Mild Steel Plate(tube), Carbon Steel Sheet(tube), Alloy Steel Plate, Spring Steel Sheet(tube), Iron Plate(tube), Galvanized Iron(tube), Galvanized Sheet, Aluminum Plate(tube), Copper Sheet(tube), Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.
Application Industries
Fiber Laser Cutting Machine is widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc.
Technical Parameters

Machine model	YWFL-3015
Laser wavelength	1064-1090nm
Beam quality	M21.3, TEM00
Laser average power	10-750W
Water chiller power	3.8kW
X and Y axis working area	1500 x 3000
Consumption parts	Water, lens,auxiliary gas(N2/O2/compressed air)
Z axis movement length	100mm
X and Y location accuracy	+/-0.02mm
X and Y axis repeat location accuracy	+/-0.02mm
X and Y axis moving speed	23m/min
X and Y max cutting speed	15m/min
Min cutting width	0.05mm
Guider	Red pointer
Shielding gas form	coaxial
Control system	Bochu Fiber laser cuttings sysem
File format	DXF/PLT/AI
Driver	Controlled by servo motor
Continuously working time	suggest≤16Havailable working 24 hours
Max cutting speedcommon steel	depends on material type&thickness
Applicable cutting materials	Stainless steel, carbon steel and galvanized Sheet/Pipe
Machine occupy spaceL*H*W	10.0×5.0×1.8(m)
Voltage needed	Specific according to final user

Production Process

Packing&Shipping

PACKING
Size	(L) * (W) * (H)
Weight	T
Packaging Details	The normal package is water proof plastic package, the optional ply wooden case is after fumigation treatment. Needn't timber inspection, saving shipping time. If container is too tigher, we will use pe film for packing or pack it according to customers special request
