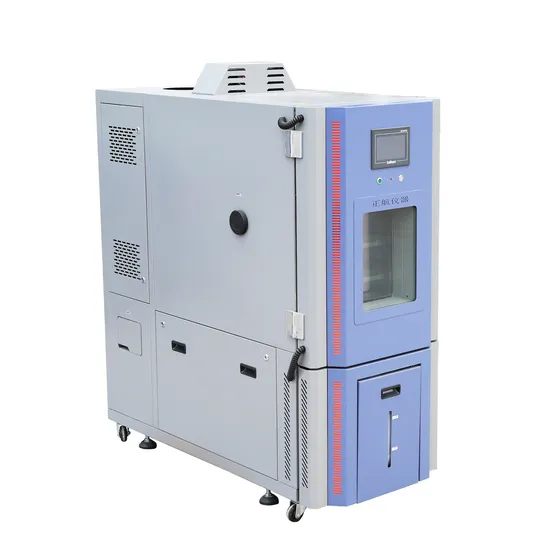

Environmental Chamber / Programmable High and Low Temperature Test Chamber

Product Description

Environmental Chamber / Programmable High and Low Temperature Test Chamber
Profile.
Programmable Environmental Temperature and Humidity Test Machine/ Climate Chamber are available as standard products in a variety of sizes to suit your needs. Our environmental test chambers are often used for steady-state stability testing, basic temperature cycling and accelerated stress testing. In keeping with the needs of today's lab, we designed these temperature and humidity test chambers to have a compact exterior that maximizes the interior workspace. Lowest temperature: -20 or -70°C (-4 or -100°F)
Highest temperature: 150°C (302°F)
Humidity range: 20% to 98% RH (or 5% / 10% to 98%RH)
Chamber size: 3.53 cubic feet
Touch-screen Watlow F4T programmer with Ethernet access
Narrow type / Case type, difference color can be customzied
Technical parameters.

Model	ZH-HS-80 (A~F)	ZH-HS-150 (A~F)	ZH-HS-225 (A~F)	ZH-HS-408 (A~F)	ZH-HS-800 (A~F)	ZH-HS-1000 (A~F)
Inner size: WHD(cm)	40*50*40	50*60*50	60*75*50	60*85*80	100*100*80	100*100*100
External size: WHD(cm)	105*165*98	105*175*108	115*190*108	135*200*115	155*215*135	155*215*155
Temperature range	(Low:A:+25ºC; B:0ºC;C:-20ºC; D:-40ºC;E:-60ºC;F:-70ºC) (High:+100ºC/+150ºC)
Humidity range	20%~98% R.H.(10%~98%R.H);(5%~98%R.His special optional condition)
Temp analytic accuracy/uniformity	0.1ºC/±2.0ºC
Temperature Fluctuation	±0.5ºC
Humidity analytic accuracy/ Humidity control accuracy	±0.1%;±2.5%
Heat; cooling time	Heat up about 4.0°C/min ; Cooling about 1.0°C/min
Inner and outer materials	SUS#304 Stainless steel for inner chamber ; Carton Advanced cold plate nano paint for outer
Insulation materials	Resistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials
Cooling system	Air cooling/single segment compressor(-40°C) ,air and water double segment compressor (-50°C~-70°C)
Protection devices	Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch, super humidity over-temperature protection switch, fuse, failure warning system
Parts	Watching window , 50mm testing hole , PL internal bulbs , Wet and dry bulb gauze , partition plate , castorx4,Foot Cupx4
Compressor	Original France"Tecumseh"brand
Controller	TEMI South Korea
Power	AC220V 50/60Hz & 1, AC380V 50/60Hz 3
weight (kg)	150	220	270	320	450	580

Core accessories.
Our company.
Workshop.
Manufacture process.
Features.
High performance and quiet operation (65 dBa)
Space-saving footprint, designed for flush installation to wall
Stainless steel exterior
Full thermal break around doorframe
One 50mm (2") diameter cable port on left, with flexible silicone plug(special requirement)
Three levels of overheat protection, plus overcool protection
Easy lift-off service panels, electrical access on left
Detachable eight-foot power cord with plug
Direct water supply connection for continuous operation (supply tank optional)
ETL listed electrical panel conforming to UL 508A
Our Factory.
Certifications.
Exhibitions and customers visit our factory.
FAQ.
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
Q: How to Choose a proper chamber?
A: Please let us know the product to be tested, include the max. size, the quantity per test, lowest shock temperature required and power-on test (mainly for electronic products or device) needed or not. We will provide several models to you for reference, the specification sheet in detail will be provided ASAP.
Q:Do you accept customization service?
A:Yes, of course, we can not only offer standard Environmental Chambers, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.
Q:How about your warranty?
A:Generally, our warranty is one year. Within the warranty period, we can offer technique support, Feedback to you within 24 hours and help you to repair your problem controller freely, even it's not from our factory
Q:Can we visit your factory before order?
A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: What's the delivery term?
A: If we don't have any units in stock. normally, the delivery time is 25 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
Q:How about the packing for machine, is it safely protected during transportation?
A: Testing Chamber is packed by standard export wooden box (fumigation-free wooden case) for outside package and stretch film for inner package, it won't be damaged. We've delivered many testing machines abroad by sea or by air without damage.
Q: Do you have any certificates for this chamber or for your company?
Yes, we got CE, RoHS and FCC certificates for the normal models. Sailham have also got the SGS and BV certificated, have passed ISO 9001: 2015.
