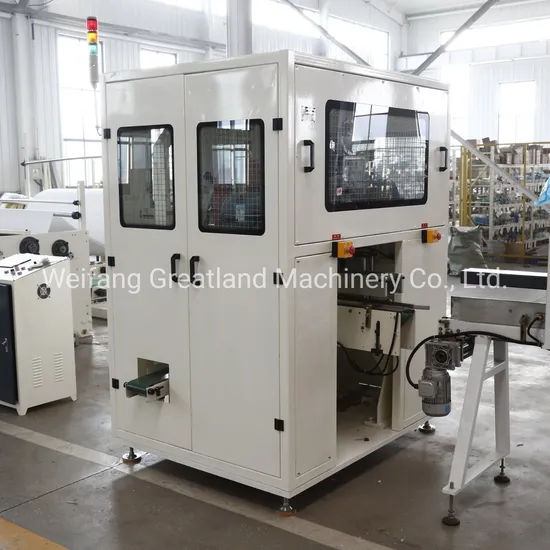

High Speed Automatic Log Saw Automatic Cutter

Product Description

High Speed Automatic Log Saw Automatic Cutter

Model	GLM200
Raw Paper Size	Max. 1500-3000mm (Adjustable)
Finished size	Dia. 90-125mm* length100-210mm
Capacity	150-220 cut/mint
Power	15kw
Blade outside diameter	φ610mm
Control System	PLC

GLM series High Speed Automatic Log Saw is one of the important equipment for the automaitcally continuous production line of toilet rolls and kitchen towels, greatly increasing the production automation and efficiency. The machine is characteristic of a strong, well built structure and perfect cutting action. The machine is equipped with the following:
1. Automatic blade sharpening unit complete with lubrication system.
2. Log accompaniment system.
3. Automatic approach of grinding wheels to cutting blade based on the blade wear.
4. Automatic trim eliminating device.
5. Two clamping systems for toilet rolls and kitchen towels. Short change over time.
Machine Details & Workshop
OUR SERVICE
Greatland has professional technical team for installation, commissioning, and related services, also has a very wholesome file system, contacts with the user regularly. Greatland will try best to solve the problems from the customer. Within the quality guarantee, Greatland settle the problems on site.
ABOUT US
GLM was founded in 2010, and is an integrated company dedicated to the pulp and paper industry associated with planning, design, research, development, producing, delivery, testing and training. Besides, GLM was funded by the Pulp and Paper Design Institute, Pulp Equipment Mill and Paper-making Machinery Company, and in turn gathers together talents from each part. Furthermore, an impressive result has been achieved in recent years.
F&Q
Q.:Are you a factory or trading company?
A.: We are a factory and manufacturer.
Q.:How does your factory do regarding quality control?
A.:We pay much attention on quality controlling from very beginning to the very end. Fully check and test takes before shipment.
Q.:Where is your factory located? How can I visit there?
A.:Our factory located at Shandong, China.You can fly to QINGDAO international airport directly. We will arrange to pick you up.
Q.:What's service or guarantee can you offer?
A.: One year guarantee for key parts of machine, Machine installing and worker training service, free technical support whole life.

---
