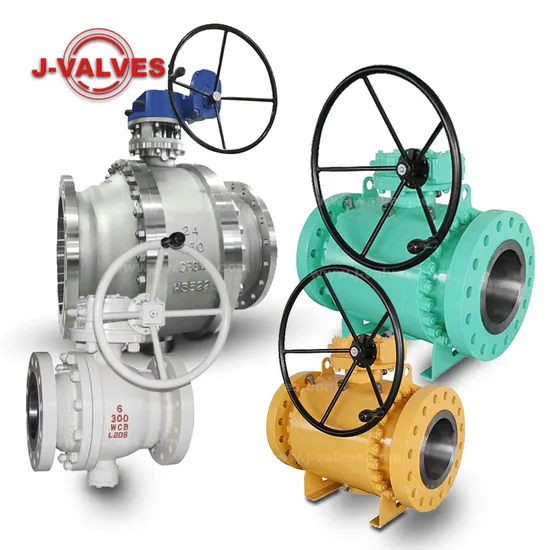

J-Valves API6d Cast Steel/Wcb/Carbon Steel/Stainless Steel CF8/CF8m/A105/F304/F316/ 2PC Flanged Pipeline Trunnion Mounted Ball Valve with Worm Gear

Product Description

Quick Detail

Product Name	2PC Carbon Steel Flanged Trunnion Mounted Ball Valve with Worm Gear
1. Material	Stainless Steel/Duplex steel/Aluminium Bronze/Nickel-aluminum Bronze/Titanium Alloy, etc.
2. Size	2''~48''( DN50~DN1200)
3. Port	Full Port/Reduce Port
4. Working Pressure	150LB~600LB
5. Connection Ends	RF, RTJ, BW
6. Working Temp.	-20ºC~200ºC for soft seat, -20ºC~400ºC for metal seat
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operated	Manual, Worm Gear, Pneumatic actuator, Electric Actuator
9. Features	Fire safe, anti-static device
10. Seat	PTFE, RPTFE, PPL, PEEK, Stellite metal seat option
11. Design standard	API6D/API608/API607
12. Inspection & Testing	According to API598
13. Brand	J-VALVES
Shipment
Delivery Time	15-30 Days
Package	Standard Exporting Plywood Case
Shipping Port	Ningbo/Shanghai sea port, China.
Shipping Terms	EXW, FOB, CFR, CIF, etc.
Payment Terms	T/T, DP, LC at sight
Payment condition	30% prepayment, 70% balance paid before shipping or against copy of BL
Country of Origin	China
Production Capacity	8000 Ton/year
Certificates	ISO, CE, TS, API6D
MOQ	10 PCS/size(Special material depends on)

Technical Specification

Design & Manufacture standard	API608/API6D/ASME B16.34
Pressure & Temperature standard	ASME B16.34
Face to face dimension standard	ASME B16.10
Ends Connection standard	ASME B16.47
Test & Inspect standard	API 598

Testing Pressure(Mpa):

Pressure	150LB	300LB	600LB	900LB	1500LB	2500LB
Strength Testing	3.0	7.5	15.4	23.0	37.5	63.0	Mpa
Seal Testing	2.2	5.5	11.2	16.9	27.5	46.2
Air Testing	0.6	0.6	0.6	0.6	0.6	0.6

Feature
2-Piece Bolted Body, Full Port Construction Fully Compliant to ASME B16.34 Fully Compliant to API 6D API 607 6th Edition Fire-Safe All Models are NACE MR0175 Compliant Submerged Packing System & Direct Mount Actuation Standard ISO Actuator Mounting Pads on All Sizes Second Generation PTFE Seats Provide Higher Operating Temperatures Standard Electrically Grounded Ball & Stem Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator. Orrosion allowance is left for the design of body thickness, the stem, ficed shaft, ball, seat and bottom cover of carbon steel valve are all chemical plated in surface to ASTM B733 and B656. Use of paint from international company to deal with all kinds of conditions Detail photos

Drawing
J-VALVE Note: All the data should be confirmed with the approved drawings of manufacturer.
Related Products
3PC Forged Steel Trunnion Mounted Ball Valve
Our Service:

On Samples	Buyer bear the air fee, but this fee will be reduced from order directly
On After Sales	Free replacement if there is any quality problem
On Delivery	Never delay delivery time
On Materials	Ensure material pure
Ensure material pure	Welcome

J-VALVES Product Flow
Packaging & Shipping
J-VALVES ADVANTAGE
J-VALVES FAQ
_____________________________________________________________________________
1. How to guarantee your quality? When we install, if there is some quality problems, how to solve it?
We have QC department, quality inspector will check every step when processing and make reports to clients for checking. If any quality problems, we will check and reply you within 24 hours to solve it. Please contact us for any quality problems.
2. What's the temperature and pressure for valves?
For metal seat, temperature range from -196ºC to 425ºC. For soft seat ball valve, temperature range from -29ºC to 200ºC. Pressure range from PN6 to PN420(150LB~2500LB).
3. What's the materials of valves?
Stainless Steel, Forged Stainless Steel, Alloy Steel, Duplex Steel, Titanium Alloy, Nickel-aluminum, Bronze Alloy, etc. Details materials requirements could consult us at any time.
4. How about delivery time?
Our factory is near to Ningbo & Shanghai seaport, generally speaking, export to Asia takes about 7-10 days, export to Europe, Middle East, Africa, North America, South America, etc. takes about 30-35 days by sea.
5. What's the medium for your valves?
Mostly are used in water, gas and oil. When inquiry, it is better to offer your medium, we could suggest materials and valves type for clients.
6. Can ball valves regulate medium?
No, ball valves only can not use for regulating, it is a kind of isolating valve.
7. What are the quarter turn valves?
Ball valve, Butterfly Valve, and Plug valve are rotary motion control valves. They just need a quarter turn to come into action.
8. What's the direction of valves?
Ball Valve and gate valve are bi-directional valves, globe valve, check valve and y strainer have arrow on valve body to indicate direction.
9. What's the difference between rising stem and non-rising stem of gate valve?
The rising stem gate valve can be seen from the appearance whether the valve is closed or open. The lead screw can be seen while the non-rising stem gate valve can not. Non-rising stem gate valve handwheel will go and up when rotate handwheel, rising stem gate valve will not. And The rising stem gate valve requires a larger installation space because of the stem; the height of the Non-rising stem gate valve is small, and it will not take up too much space during installation.
10. What's the difference of gate valve and globe valve?
Gate valve is bi-directional valve, globe valve in single way valve and has fixed direction when install. And globe valve has better sealing than gate valve, when globe valve close, fluid medium add pressure on disc to keep better sealing. Gate Valve wedge is parallel with flange, when close, both side fluid medium add pressure on wedge.
11. Check Valve Introduce.
Check Valve is unidirectional valve, also called one way valve, non-return valve. Because medium flow decide its direction. It has swing type, lift type(piston and ball), vertical type, butterfly type. Wafer type check valve has three types, spring return type, single disc type and double disc type. Anyway, could choose valve type according to medium, pressure and temperature. Masoneilan Valve will give you the best suggestions.
12. What's the type of butterfly Valve?
Generally speaking, for connection ends, butterfly valve has lug type, wafer type, double flange type; for design structure, butterfly valve has concentric type, double eccentric type, triple eccentric type.

---
