PVC Powder Hot and Cold Mixer Unit Machine

Product Description

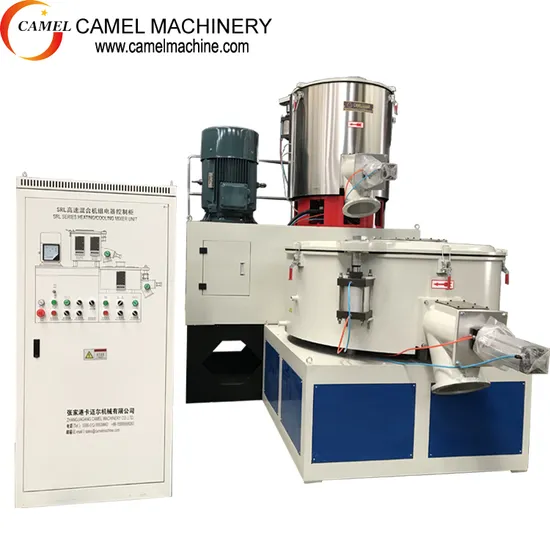

PVC plastic hot and cold mixer
Product Description The PVC plastic hot and cold mixer is widely used for mixing, drying, and coloring for all kinds of plastic resin, especially for large production capacity. This unit is composed of heating and cooling mixers. Hot material from heating mixer is fed into cooling mixer for cooling to eliminate gas and avoid burning. The structure of cooling mixer is horizontal type with spiral-shape stirring blades, without dead corner and prompt discharging within short time.
Technical data:

Model	SRL-Z100/200	SRL-Z200/500	SRL-Z300/600	SRL-Z500/1000
Total capacity(L)	100/200	200/500	300/600	500/1000
Efficient (L)	65/130	130/320	200/400	350/640
Motor power KW	14/22/7.5	30/42/11	40/50/15	47/67/15
Paddle Speed	650/130/180	475/950/130	475/950/130	430/860/60
Water consumption	3T/H	4T/H	4T/H	5T/H
Heat/cooling way	electric self-friction water cooling	electric self-friction water cooling	electric self-friction water cooling	electric self-friction water cooling
Mixing time(min)	8-10
Outline dimension mm	2500 ×2000×2200	4500 ×2200×2500	4500 ×2200×2500	4600 ×3000×4000
Weight kg	3T	3.5T	3.5T	4.5T

Technical Parameters of PVC horizontal mixer :

Model	SRL-W500/1600	SRL-W800/2000	SRL-W800/2500	SRL-W800*2/4000	SRL-Z1000/2500
Total cubage(L)	500/1600	800/2000	800/2500	1600/4000	1000/2500
Effective cubage(L)	330/1000	560/1400	600/1500	1120/2700	700/1750
Mixed speed(r/min)	430/860/70	330/660/55	330/660/60	350/700/65	350/700/50
Heating/cooling manner	Self-friction/water cooling
Mixed time(min)	8-12	8-12	8-12	8-12	8-12
Motor power(kw)	47/67/15	60/90/18.5	83/110/22	83/110*2/45	83/110/22
Discharge method	Pneumatic

we can custom make different size if customer has special requirement
FAQ Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 45-60 days if the goods are not in stock, it is according to what kind of machine you need

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: 30% T/T in advance ,70% balance before shipment or Negotiable
If you have another question, please feel free to contact us as below
Company Profile
We will test machines in our factory before delivery. Customer check machines running in our factory, after customer is fully satisfied with the quality, then delivery, when machines arrive in customer's factory, we will send our engineer to test the machine in customer's factory
We supply machines technical support, material formulation; guarantee machines and spare parts supply
