Food Grade Pet Bottle Recycling Hot Washing Machine Water Cola Plastic Pet Bottle Cleaning Washing Plant Line

Product Description

High Productivity Pet Bottle Recycling Hot Washing Machine Water Cola Plastic Bottle Cleaning Line with Zigzag Label Remover
Product Description
PET Recycling Machine is mainly working to recycling the waste PET bottles, water bottles, cola bottles, PET sheet and PET packing containers. The PET Recycle Line can easily remove the labels, caps, rings, glue, dirties and other impurities, finally you will get ideal PET flakes.
Moisture<1%, impurity-100PPMCapacity: 500-3000kg/h
Detailed Photos
Features
1. The material is mainly PET bottles, including water bottles, cola bottles…
2. The main parts of the PET washing recycling plant is label separating, crushing, cold and hot washing, caps separating, dehydrator and drying parts.
3. The capacity of the PET washing recycling plant is from 300kg/h to 3000kg/h.
4. There crusher is to crush the rigid material into small pieces with size from 1mm to 15mm depending on customers' need.
5. Mechanical label separator and zigzag label separator can ensure to remove the labels thoroughly.
6. Sinking swimming tank can not only remove dirties of the flakes, but also can remove the caps out.
7. High speed friction washer and hot sinking swimming tank can remove the strong dirties, like the grease, oil, glue.
8. By dehydrator and drying system, the final products plastic flakes moisture level can be lower than 1%.
9. The final products PET flakes, the PVC level is lower than 150PPM, the impurities level is lower than 100PPM.
10. The PET flakes can be taken directly to make the fibers, straps, and also can be granulated to be granules.
Product Parameters

No.	Name	Motor Power	Dimension	Weight	Necessity
1	Belt conveyer	1.5~2.2kw	4000*700*3000mm	450kg	Necessary
2	Mechanical label separator	18.5~22kw	3200*1200*2500mm	4000kg	Necessary
3	Manual sorting	1.5~3.7kw	6000*1000*1200mm	600kg	Optional
4	Metal detector	0.4kw	2000*1300*1600mm	350kg	Optional
5	Belt conveyer	1.5~2.2kw	4000*700*3000mm	450kg	Necessary
6	Wet crusher	22~90kw	1700*1600*3200mm	3500kg	Necessary
7	Screw conveyer	2.2~5.5kw	3300*450*2700mm	400kg	Necessary
8	Cold rinsing washer	3~5.5kw	5500*1900*2200mm	2300kg	Necessary
9	Screw conveyer	2.2~5.5kw	3300*450*2700mm	400kg	Necessary
10	Hot washer	3~7.5kw	1800*1800*2100mm	2500kg	Necessary
11	Screw conveyer	2.2~5.5kw	3300*450*2700mm	400kg	Necessary
12	High speed friction washer	22kw~37kw	3000*900*1700mm	2700kg	Optional
13	Screw conveyer	2.2~5.5kw	3300*450*2700mm	400kg	Necessary
14	Cold rinsing washer	3~5.5kw	5500*1900*2200mm	2300kg	Necessary
15	Screw conveyer	2.2~3.7kw	3300*450*2700mm	400kg	Necessary
16	Vertical dewatering machine	45~55kw/	1800*1800*2000mm	2200kg	Alternative
17	Drying system	22kw~30kw	3000*2200*1800mm	420kg	Optional
18	Air label separator	3kw~7.5kw	1800*1000*3600	900kg	Optional
19	Storage silo	---	1600*1600*3800mm	380kg	Necessary
20	Electric panel	Customized	3000*600*1500mm	170kg	Necessary

Certifications
Packaging & Shipping
Exhibition

FAQ
Q&A about recycling machines:
1. What is the function of the PET bottle washing recycling plant?
The PET bottle washing recycling plant is mainly used to process PET beverage bottles. The line includes two functions, one function is to separate the PE caps and PVC or PP caps out to get pure PET flakes finally. The other one function is to wash the PET flakes clean, at end to get clean flakes.
2. What are main parts of the PET bottle washing recycling plant?
The PET bottle washing recycling plant is mainly consists of:

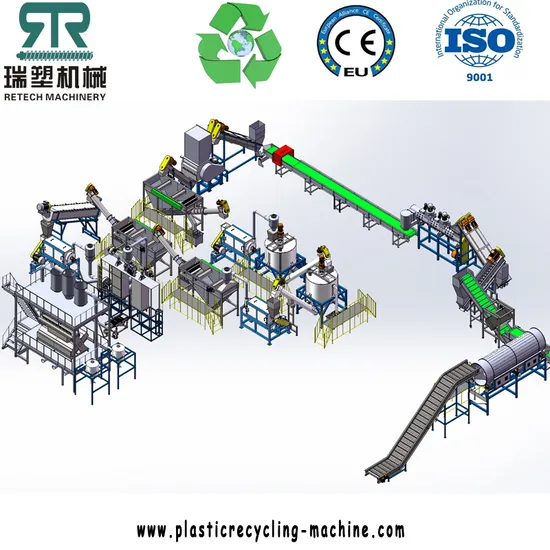

Belt conveyer--- bale opener--- belt conveyer-pre-washer--- belt conveyer--- mechanical label separator--- manual sorting--- metal detector--- belt conveyer--- crusher--- screw conveyer--- floating washer--- screw conveyer--- hot washer--- screw conveyer--- high speed friction washer--- screw conveyer--- floating washer--- screw conveyer--- vertical dewatering machine--- drying system--- zigzag label separator--- storage silo--- operating panel
The up structure of the flowing chart is just a standard we recommend, it can be adjusted due to the customers' material situation and requirements.
3. What capacity of the PET bottle washing recycling plant?
300-3000kg/h for single washing line
4. What power of the PET bottle washing recycling plant?
150kw~350kw
5. How much water does it need of the PET bottle washing recycling plant?
3~8T per hour
6. How large space does it need for a PET bottle washing recycling plant?
100~400 square meters
7. Do you offered training of the PET bottle washing recycling plant?
Yes, we can training your worker.
8. Can you send engineers to our factory to help us install the PET bottle washing recycling plant?
Surely it is no problem.
9. Do you offer all the documents for the PET bottle washing recycling plant? Such as the manual operating.
Yes, we will offer you the complete documents for the PET bottle washing recycling plant.
10. What is the situation of the final products from the PET bottle washing recycling plant?
The PET flakes from the PET bottle washing recycling plant moisture level lower than 1%, the PVC level lower than 200PPM, the dirties level lower than 300PPM.
11. What certifications do you have for the PET bottle washing recycling plant?
We have CE and ISO9001 certification for the entire PET bottle washing recycling plant.
12. What is material of the PET bottle washing recycling plant?
The parts contacted with water are made of stainless steel SUS 304 for the entire PET bottle washing recycling plant.
13. Does it easier and costly to maintenance for the PET bottle washing recycling plant.
It is easier and not costly. We will train your workers and offer the manual operating.
14. What about the electrics of the PET bottle washing recycling plant?
Our standard electric parts are famous brand, such as Siemens Contactor, Fuji inverter… and also they are customized for the PET bottle washing recycling plant.
15 workers needed for the PET bottle washing recycling plant?
4-12 people
Contacts US:
RETECH Machinery is an experienced and professional manufacturing for series plastic washing recycling machine/ plastic granulating recycling machine including PET bottle recycling machines, PE PP film recycling machines, plastic PE PP PS ABS PET PC PVC LD HD LLD BOPP granulating line, water treatment for the waste water from washing line, and auxiliary equipment for plastic recycling....
If you are interesting more details of our products, please contact with us no hesitation!
