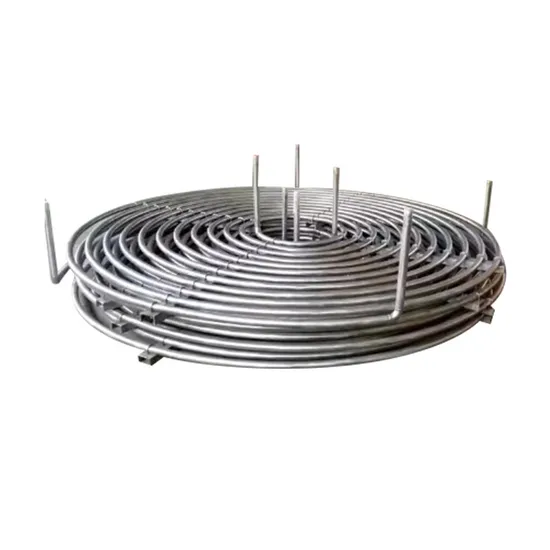

Titanium Cooling Tubes Pure Titanium Serpentine Coil for Titanium Coil Heaters Condensers and Heat Exchangers

Product Description

Product Description Pure Titanium And Titanium Alloy Sheet, Strip, Bar, Tube, Extrusion
We offers a complete range of titanium and titanium alloy mill products in sheet, strip, plate, billet, bar, rod, extrusions and tubulars. We also offer metal processing services including hot-forming (e.g super plastic forming), extrusion,seamless pipe production, water jet and saw cutting, and machining.

Product Name	Titanium
Titanium Bars/ Rods/Ingots	Ф3mm~Ф1020mm,the maximum weight is up to 12t
Titanium Slab	(80~400)mm×(~1500)mm×(~2600)mm
Titanium Forgings	Weight per piece≤2000kg
Titanium Hot-rolled plates	(4~100)mm×(800~2600)mm×(2000~12000)mm
Titanium Cold-rolled plates	(0.01~4.0)mm×(800~1560)mm×( ~6000) mm
Titanium Strips	(0.01~2.0)mm×(800~1560)mm×L
Titanium Tubes / Pipes	Ф(3~114)mm×( 0.2~5)mm × (~15000)mm
Standards	GB,GJB,ASTM,AMS,BS,DIN,DMS,JIS,ГОСт
Titanium Grade	GR1,GR2,GR3,GR5,GR7,GR12 BT1-00,BT1-0,BT1-2 BT6 BT5-1 3B BT6c TA0,TA2,TA3,TA5,TA6,TA7,TA9,TA10,TB2,TC1,TC2,TC3,TC4

Chemical Composition

Titanium	Composition Requirements, weight percent
Grade	C	O	N	H	Fe	Al	V	Pd	Ni	Mo
1	≤0.08	≤0.18	≤0.03	≤0.015	≤0.20	-	-	-	-	-
2	≤0.08	≤0.25	≤0.03	≤0.015	≤0.30	-	-	-	-	-
3	≤0.08	≤0.35	≤0.05	≤0.015	≤0.30	-	-	-	-	-
4	≤0.08	≤0.40	≤0.05	≤0.015	≤0.50	-	-	-	-	-
5	≤0.08	≤0.20	≤0.05	≤0.015	≤0.40	5.5~6.75	3.5~4.5	-	-	-
7	≤0.08	≤0.25	≤0.03	≤0.015	≤0.30	-	-	0.12~0.25	-	-
9	≤0.08	≤0.15	≤0.03	≤0.015	≤0.25	2.5~3.5	2.0~3.0	-	-	-
11	≤0.08	≤0.18	≤0.03	≤0.015	≤0.20	-	-	0.12~0.25	-	-
12	≤0.08	≤0.25	≤0.03	≤0.015	≤0.30	-	-	-	0.6~0.9	0.2~0.4
16	≤0.08	≤0.25	≤0.03	≤0.015	≤0.30	-	-	0.04~0.08	-	-
17	≤0.08	≤0.18	≤0.03	≤0.015	≤0.20	-	-	0.04~0.08	-	-
23	≤0.08	≤0.13	≤0.03	≤0.0125	≤0.25	5.5-6.5	3.5~4.5	-	-	-

Tensile Requirements

Titanium	Tensile Strength	Yield Strength	Elongation	Bend Test(Radius of Mandrel)
Grade	ksi [MPa]	0.2% offset, ksi [MPa]	in 2", %	t<1.8 mm	1.8 mm≤t<4.75 mm
1	≤35 [240]	20~45 [138~310]	24	1.5T	2T
2	≤50 [345]	40~65 [275~450]	20	2T	2.5T
3	≤65 [450]	55~80 [380~550]	18	2T	2.5T
4	≤80 [550]	70~95 [483~655]	15	2.5T	3T
5	≤130 [895]	≤120 [828]	10	4.5T	5T
7	≤50 [345]	40~65 [275~450]	20	2T	2.5T
9	≤90 [620]	≤70 [483]	15	2.5T	3T
11	≤35 [240]	20~45 [138~310]	24	1.5T	2T
12	≤70 [483]	≤50 [345]	18	2T	2.5T
16	≤50 [345]	40~65 [275~450]	20	2T	2.5T
17	≤ 35[240]	20~45 [138~310]	24	1.5T	2T
23	≤120 [828]	≤110 [759]	10	4.5T	5T

Main Products

Category	Material	Dimension(mm)	Specification
Ti & Alloy ingots & bars	CP Ti, Ti-6Al-4V, Ti-6Al-4V Eli, Ti-3Al-2.5V, Ti-5Al-2.5Sn, Ti-5Al-2.5Sn Eli, Ti-0.05Pd, Ti-0.2Pd, Ti-6Al-7Nb, Ti-13Nb-13Zr, Ti-0.1Ru, Ti-3Al-8V-6Cr-4Mo-4Zr, Ti-6Al-4V-0.1Ru, etc.	Standard Or Customized	GB/T 2965, ASTM B348
Ti & Alloy castings			GB/T 6614, ASTM B367
Ti & Alloy forgings			GB/T 25137, ASTM B381
Ti & Alloy plates			GB/T 3621, ASTM B265
Ti & Alloy strips & foils			GB/T 3622, ASTM B265
Cold rolled Ti & Alloy strip coils			GB/T 26723, ASTM B265
Ti & Alloy wires			GB/T 3623, ASTM B863
Ti & Alloy seamless tubes			GB/T 3624, ASTM B861
Ti & Alloy welded tubes			GB/T 26057, ASTM B862
PM Ti & Alloy components			GB/T 6887, ASTM B817

Detailed Photos Company Profile
Equipment and Process Application Packaging

---
