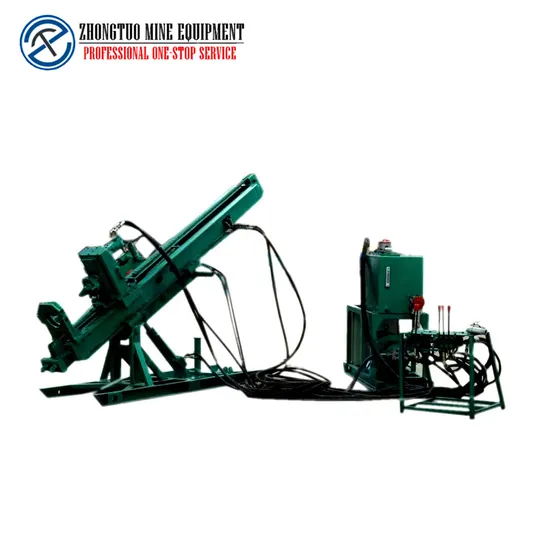

Hydraulic Deep Hole Drill Rig Anchor Rig

Product Description

Drilling diameter	ф150-ф250(mm)
Drilling depth	130-170(m)
Final hole diameter	75mm
Drill pipe diameter/casing diameter	Ф73,ф89,ф102,ф114(mm)
Drilling angle	0-90(° )
Rotator output speed	10/20/30/35/40/60/65/70/85/130/170(r/min)
Rotator Output Torque	7500(N.m)
Rotator travel	3400(mm)
Rotator lift force	70(kN)
Rotator lift speed	0-5 adjustable /7/23/30(m/min)
Rotor pressure	36(kN)
Rotary press speed 0-10 adjustable	0-10 adjustable /14/46/59(m/min)
Walking way	crawler walking
Climbing angle	25(° )
Crawler ground pressure	36(kpa)
Walking speed	20(km/h)
Rotary mode	the whole machine manual rotation (automatic rotation optional)
Rotary structure	slewing bearing
Positioning	Positioning Pins
Input power (motor)	55+18.5(KW)
Shipping status (degrees x width x height)	5400x2100x2000(mm)
Weight	6000(kg)

Shaanxi Zhongtuo Mining Equipment Co., Ltd. is a global supplier that specializes in bridge stretching
equipment, downhole drill series, steel processing machinery, rock splitting equipment, grouting equipment, and pavement processing equipment. After years of hard work and development. We have established a
solid foundation for providing quality services with many years of experience in mechanical equipment
manufacturing. Our high-quality bridge equipment and mining machinery products such as bridge
stretching equipment, downhole drill series, steel processing machinery, rock splitting equipment,
grouting equipment, and pavement processing equipment have been well received by users. In recent years
we have begun to focus on the development of international markets. ?With the continuous improvement of
high-quality products and high-quality services, our products are highly appreciated by customers in the
international market. Due to the excellent performance of the products and professional after-sales service, our products have been sold to Romania, Bulgaria, Albania, Colombia, Brazil, Peru, Uruguay, Saudi Arabia,
Kuwait, United Arab Emirates, Oman, Turkey, Israel, Kazakhstan, Sudan, Madagascar, etc. We have been
focusing on high-quality mechanical equipment and construction products for more than 20 years, and are
widely used in mining, construction and water conservancy projects, railway
FAQ: Q1: Are you a factory or trade company? A1: We are a factory. And we have ourselves trading company. Q2: What is the exact address of your factory? A2: No.27, Beichen Village Industrial Park, Weiyang District, Shaanxi Province China. Q3: Warranty terms of your machine? A3: One-year warranty for the machine and technical support according to your needs. Q4: Will you provide some spare parts for the machines? A4: Yes, of course. Q5: What about the voltage of products? Can they be customized? A5: Our standard voltage is 380V, 50HZ, and 3phase. The voltage can be customized according to your equipment. Q6: Which payment term can you accept? A6: 100% T/T( Decide according to actual situation) Q7: How long will it take to arrange production? A7: we can deliver the normal goods within 7-15 days. Other nonstandard electrical items we will deliver within 25-30 days. Q8: Can you accept OEM orders? A8: Yes, with a professional design team, OEM orders are highly welcome. Q9: Which trade term can you accept? A9: Available trade terms: FOB, CIF, CFR, EXW, etc. Q10: Do you provide samples? Is it free or extra? A10: Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of the freight. Q11: What are your terms of payment? A11: We accept T/T, Western Union, Money Gram, Paypal, L/C, etc.

---
