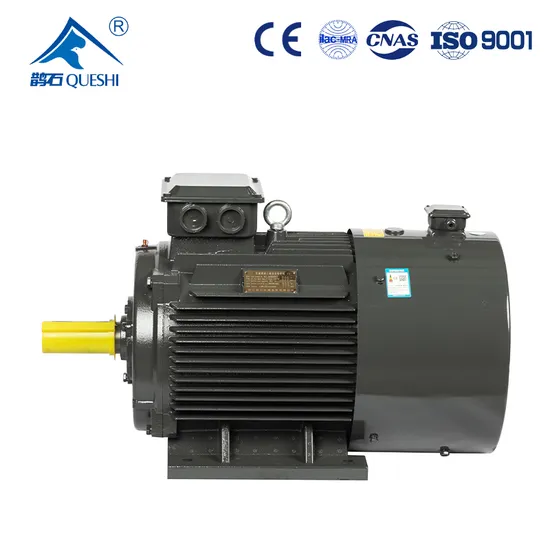

Frequency Conversion Electrical Motor Adjustable Speed AC Asynchronous Motor

Product Description

YE4 series super efficient three-phase asynchronous motor
PRODUCT OVERVIEW YVP series frequency-variable and speed-adjustable three phaseasynchronous motor aresuitable for running in frequency changeand speed regulation system which the power issupplied by a frequency converter. This new series of product desingned unitedly in the countrycan be mated with all kinds of SPWM frequency changer and speed regulation devices andis equipped with a separate cooling fan which ensure the motor for good cooling at variousspeed,They can be used in machine tool,metallugic industry,textile,printing and dyeing,transportation,chemical industry,mine and for seep regulation of fans and pumps.
Operating conditions
Ambient temperature:-15°C≤0≤40°C
Altitude:not exceeding 1000m
Rated voltage: 380V or any voltage between 220-760V
Ratedfrequency:50Hz,60HZ
Protectionclass:lP55
Insulation class:F,H
Coolingmethod:lC0141
Duty:Sl(continuous)
Connection: Star-connection for up to 3kw,
delta-connection for 4kw and above. Zhejiang Queshi Explosion Proof Motor Co., Ltd. Factory shoot
Product parameters

Type No.	Rated Power(KW)	Speed	Currentin	Efficiency	POWERFACTOR	Rated Current Ist/IN	Rated farqueTst/TN	Rated torqueTmaxTN
YE3-80M1-2	0.75	2830	1.77	80.7	0.83	6.1	2.2	2.3
YE3-80M2-2	1.1	2830	2.5	82.7	0.84	7.0	2.2	2.3
YE3-90S-2	1.5	2840	3 34	84.2	0.84	7.0	2.2	2.3
YE3-90L2	2.2	2840	4.73	85.9	0.85	7.0	2.2	2.3
YE3-100L2	3	2870	6.19	87.1	0.87	7.5	2.2	2.3
YE3-112M-2	4	2890	8.05	88.1	0 88	7.5	2.2	2.3
YE3 132S1-2	5.5	2900	10.9	89.2	0 88	7.5	2.2	2.3
YE3-132S2-2	7.5	2900	14.7	90.1	0 88	7.5	2.2	2.3
YE3-160M1-2	11	2930	21.0	91.2	0.89	7.5	2.2	2.3
YE3-160M2-2	15	2930	28.4	91.9	0.89	7.5	2.0	2.3
YE3-160L2	18.5	2930	34.4	92.4	0.9	7.5	2.0	2.3
YE3-180M-2	22	2940	40.7	92.7	0.9	7.5	2.0	2.3
YE3-200L1-2	30	2950	55.1	93.3	0.9	7.5	2.0	2.3
YE3-200L2-2	37	2950	67.5	93.7	0.9	7.5	2.0	2.3
YE3-225M-2	45	2970	81.8	94.0	0.9	7.5	2.0	2.3
YE3-250M-2	55	2970	99.6	94.3	0.9	7.5	2.0	2.3
YE3-280S-2	75	2970	135	94.7	0.91	7.5	2.0	2.3
YE3-280M-2	90	2970	160	95.0	0.91	7.5	2.0	2.3
YE3-315S-2	110	2980	195	95.2	0.91	7.1	1.8	2.2
YE3-315M-2	132	2980	233	95.4	0.91	7.1	1.8	2.2
YE3-315L1-2	160	2980	279	95.6	0.92	7.1	1.8	2.2
YE3-315L2-2	200	2980	348	95.8	0.92	7.1	1.8	2.2
YE3-355M2-2	250	2980	435	95.8	0.92	7.1	1.6	2.2
YE3-355L-2	315	2980	548	95.8	0.92	7.1	1.6	2.2

---
