1bjx-1.7 Middle-Duty Disc Harrow

Product Description

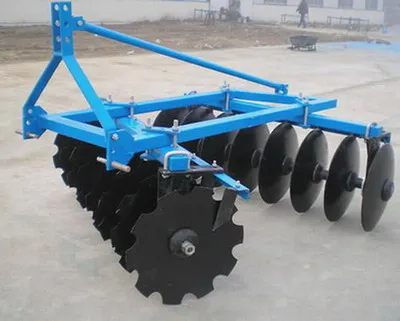

The 1BJX series Middle-duty Disc Harrow
The 1BJX series Middle-duty Disc Harrow's front gangs are assembled with scalloped disc, and rear gangs with plain disc. The harrows are adopted a whole frame made of quadrangular steel tubes by welding, So their structures are simple and reasonable, strong and durable. Their processes are perfect. The bearing is ball bearing with sphere-outside and square-inside, its rated load is large, trailing resistance is small, sealing is good. They're convenient to operate and maintain. Efficient in pulverizing and penetrating into the soil and leaves the land with a smooth, even tilth. All these satisfy the agricultural requirements of intensive cultivation.
The 1BJX series Disc Harrow are suitable for pulverized and loosening clods on sticky heavy clay soil after ploughing and for planning the land before sowing. On cultivated land, the machines can make soil and fertilizer mix up, and clear away the stump of plants and be used instead of plough on light or medium soil and preparing seed bed for planting.
Its main features are wide space operation, harrow space transportation, reliable structure with specially-used rolling bearing, easy maintenance, high productivity.
The 1BJX series Middle-duty Disc Harrow could be used with from 35HP to 120HP type tractors.
The middle disc harrow is composed of the following parts: (1)harrow frame assembly(2)scraper(3)scraper cross beam(4)cross draw rod(5)turning-axle pressing(6)pressing plate(7)supporting frame welded joint(8)suspension pin(9)disc assembly(10)U-type bolt(11)front and rear disc assemblies(12)the axle with square cross section(13)disc(14)spacer spool(15)bearing spacer spool(16)internal washer(17)external washer(18)nut M27(19)bearing assembly.
1BJX series hanging middle harrow:This series are used for crushing clods after tillage, preparing soil before seeding, loosening the soil, combining the soil and fertilizer, and cleaning away stubble of plants in light soil field.
The 1bjx series agricultural machinery mounted disc harrows are suitable for cleaning away stubble of plants before ploughing, or crushing soil after ploughing on dry cultivated land leveling land before seeding, they can be used instead of plough on light soil land, The front gang is assembled with scalloped disc, the rear with plain disc.

Type	1BJX-1.7
Working width(mm)	1700
Working depth (mm)	140
No.Of disc (pc)	16
Dia.Of disc (mm)	560
Weight(kg)	420
Linkage	Type II three point mounted
Matched power (hp)	45
Package size (mm)	2050*800*600

---
