1bzx-2.0 Hydraulic Pressure Offset Heavy Disc Harrow

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.

1BZX-2.0

Application Field

Agriculture

Farming Policy

Dry Cultivating Machinery

Power Source

Tractor

Operation

Soil Preparation Machinery, Continuous Running Operation

Traction Type

Traction

Drive Type

Gear Drive

Arbor Configuration

Horizontal Axis

Certification

Color

Red

Warranty

1year

Number of Disc

Diameter of Disc(mm)

660*6

Working Width(mm)

2200

Disc Spacing

9"(230mm)

Axle Size

Square or Round 1.4/7"(40mm)

Depth Cut

7"-8.5/8"(180-220mm)

Bearing Assembly

Grease or Oil Bath

Trademark

Yuntai

Origin

China

HS Code

8432210000

Production Capacity

1000

Product Description

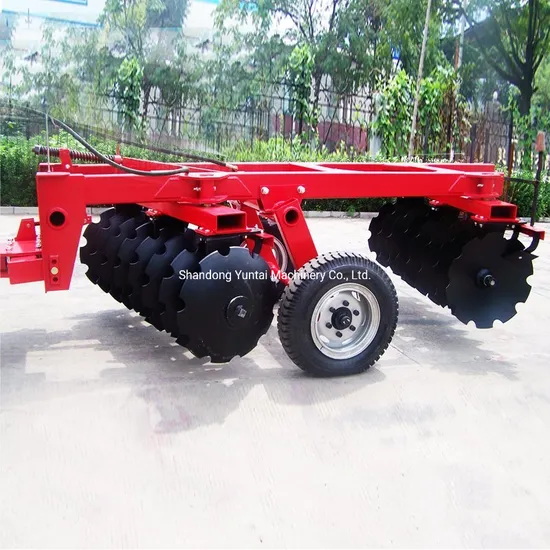

1BZX HYDRAULIC PRESSURE OFFSET HEAVY DISC HARROW This harrow has high harrowing capacity with reasonable utilization of power, great ability to cut and shatter the soil, level soil surface and loosen soil after harrowing, being well adaptable for heavy clay soil wasteland and weedy fields as well. This harrow has been adopted combined structure whose rigid frame is welded with rectangular tube, equipped with hydraulic up and down road wheel spring leveling device and tapered roller bearings and square/round inner hole special for disc harrow. Therefore this machine is easy to move with small turning radius simple to be adjusted and maintained.

Model	1BZX-2.0	1BZX-2.2	1BZX-2.35	1BZX-2.5	1BZX-3.0	1BZX-3.5
Number of disc	18	20	22	24	28	32
Diameter of disc(mm)	660*6
Working width(mm)	2000	2200	2350	2500	3000	3500
Weight (kg)	1740	2050	2150	2250	2450	2950
Tractor(hp)	85-95	95-100	100-130	130-160	140-180	180-250
Disc spacing	9"(230mm)
Axle size	Square or round 1.4/7"(40mm)
Depth cut	7"-8.5/8"(180-220mm)
Bearing Assembly	Grease or oil bath
