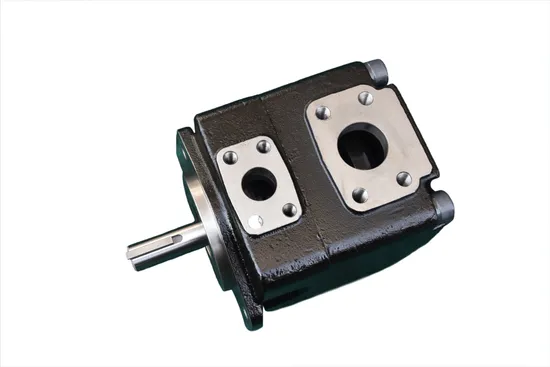

Chinese Factory High Pressure Single Stage for Veljan Vane Pump T6c, T6d, T6e Oil Pump

Product Description

All of our products certificate with ISO9001. High pressure and high performance dowel pin type vane pumps T6 T7 are widely used for plastic machinery, casting machinery, metal machinery, pressing machinery, refining machinery, construction machinery, marine machinery , heavy machinery and transportation field.
Shape and introductionHigh pressure and high performance dowel pin type vane pumps are widely used for plastic machinery, casting machinery, metallurgy machinery, pressing machinery, refining machinery, construction machinery, marine-MachineryThe main features are:1. With dowel pin vane structure, it can work in high pressure, low noise and long lifetime.2. This vane pump can fit wide viscosity hydraulic medium and be started at low temperature and work at high temperature.3. As the vane pump adopts bilabial structure vane, it has high oil polution resistance and wide speed scope.Model descriptions:

T6C	-17	-1	R	0	-A	1
Code of series	Flow code	Shaft type	Direction of rotation	Outlet Positions	Designing No.	Sealing Level
T6C	03,05,06,08,10,12,14,17,20,22,25,28,31	See of shaft	(viewed fiom shaft end of pump) R-right hand for clockwise L-left hand for counter clockwise	(viewed from shaft end of pump) 00-Opposite inlet port O1-Inline with inlet 900°CCW from inlet 900°CW from inlet	A	NBR Nitrile rubberFluororubber
T6D	14,17,20,24,28,31,35,38,42,45,50,61
T6E	42,45,50,52,57,62,66,72,85

Technical parameters

series	Flow code	Geometric	Max. pressure						Max speed		Min
	(USgpm)	displacement	Mpa						(r/min)		speed
		(mL/r)	Antiwear		General		Water		General	Water	r/min
			hydraulic		hydraulic		glycol		hydraulic	glycol
			oil		oil or		fluidor		oil or	fluid
					phosphate		water-oil		antiwear	or
					eater		emulsions		hydraulic oil	phosphate
					fluid					eater
										fluid
										or
										water-oil
			Instant	Continuous	Instant	Continuous	Instant	Continuous		emulsions
T6C	3	710.8	28	24.5	21	17.5	17.5	14	2800	1800	600
	5	17.2
	6	21.3
	8	26.4
	10	34.1
	12	37.1
	14	46
	17	58.3
	20	63.8
	22	70.3
	25	79.3							2500
	28	88.8	21	16		16
	31	100
T6D	14	47.6	24.5	21	21	17.5	17.5	14	2500	1800	600
	17	58.2
	20	66
	24	79.5
	28	89.7
	31	98.3
	35	111
	38	120.3
	42	136							2200
	45	145.7
	50	158	21	16		16
	61	190.5	12	8	8	8	8	8
T6E	42	132.3	24.5	21	21	17.5	17.5	14	2200	1800	600
	45	142.4
	50	158.5
	52	164.8
	57	179.8
	62	196.7
	66	213.3
	72	227.1
	85	269	9	7.5	7.5	7.5	7.5	7.5	2000

workshop Exhibition

FAQ
Payment term
1.30%deposit ,and 70%blanced by T/T before delivery
2.L/C at sight
Trade term
EXW,FOB Shanghai/Ningbo
PACKAGING
1.Brand "KST",neutral or the label as customers required.
2.Neutral carton with polyfoam, or packaging as customers required.
3.shipped with pallet. Before delivery,we will check each item one by one.
Delivery Time
We have large quantity stock of pump,cart kit and spare parts,the leading time will be in 3 days
And the detail leading time depend on the quantity.

---
