Product Description
Product Description

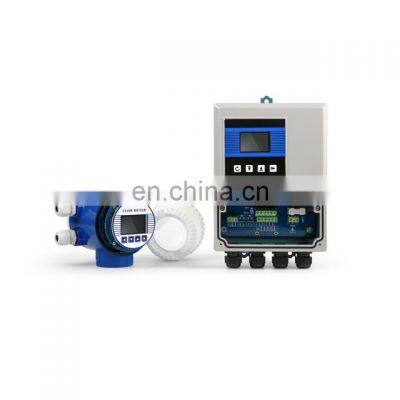

Flow meter PCB board electromagnetic flow meter converter FT8210H Transmitter outline dimension and typeAccording to the size of the sensor, we offer four kinds of transmitter housing, As shown in the figure below, please note: the PCB board, software and menus and functions are be the same, only the size of housing and shape of the housing is different. Language And LCD DisplayEnglish ,With LCD,display flow rate , total flow , velocity etc three internal accumulator, record positive total flow and reverse total flow and net total 3.6V battery power emf type with backlight. Nonlinear Correction Function:Multi segment linear correction,suitable to variety of sensorsAutomatic Zero Calibration FunctionQuick Response, Response time of 0.3 secondsElectrode Self-Cleaning Function Transmitter outline dimension and typeAccording to the size of the sensor, we offer four kinds of transmitter housing, As shown in the figure below, please note: the PCB board, software and menus and functions are be the same, only the size of housing and shape of the housing is different.Suitable to Size of the Sensor (mm):1,2,3,6,8,10,15,20,25,32,40,50,65,80,100,125,150,200,250,300,350,400,450,500,600,650,700,800,900,1000,1100,1200,1300,1400,1500,1600,1700,1800,2000,2200,2400,2600,2800,3000 Power SupplyPower supply :85VAC --- 265VAC or or 110VAC to 420VAC or 24VDC or 3.6v lithium battery Requirement For Sensor And Excitation (AC and DC power supply type) Excitation current can be set to 125mA,160mA,250mA 250mA excitation current is suitable to the resistance of two coil: 35~ 65ohm125mA excitation current is suitable to the resistance of two coil: 65 ~ 120ohmexcitation frequency:25HZ;12.5HZ,6.25HZ,3.125HZ CommunicationRS485 (standard),HART (option) MODBUS interface:RTU format,Physical interface:RS-485,Electrical isolation:1000V; HART interface:Support standard HART protocol CertificationsHow to place order?Our Services1. 18 Month's Warranty.2. Delivery time:3-7 working days after payments received3. MOQ:1 set.4. Service express company:TNT/DHL/FedEX.5. We accept T/T, Western Union, PayPal & Secure Payment. Packaging & ShippingPackaging Detail:CartonDelivery Detail:In 7 working days after payment receivedAccording to purchases Qty,can choose by air or seaWe can delivery via TNT or DHL or other express Contact UsFor more information please contact us by mail ndt at Or by Skype:tmeasurement01 Or by Whatsapp:18840951958 Or by Phone: 86-411-39685079 Or by Mob:86-18840951958Welcome to our Website! : http://tmeasurement.en.china.cn/ Other products we salemagnetic flowmeterUltrasonic flowmeterTDS-100M modular ultrasonic flow meterTDS -100F1 Wall mount ultrasonic flow meter TDS-100H Hand held ultrasonic flow meter
>>
