Customizable 2.5X Times Suction Force Magnetic Lifter

Product Description

Product Parameters

Rated specification	Maximum specification	Net weight(kg)	dimension(mm)
100kg	250kg	3.1	130*66*75
200kg	500kg	4.1	155*66*75
400kg	1000kg	9	200*92*98
600kg	1500kg	19	250*112*118
1000kg	2500kg	33	300*132*144
1500kg	3750kg	38	330*132*144
2000kg	5000kg	63	390*156*170
3000kg	7500kg	80	480*156*170
5000kg	12500kg	175	573*236*227

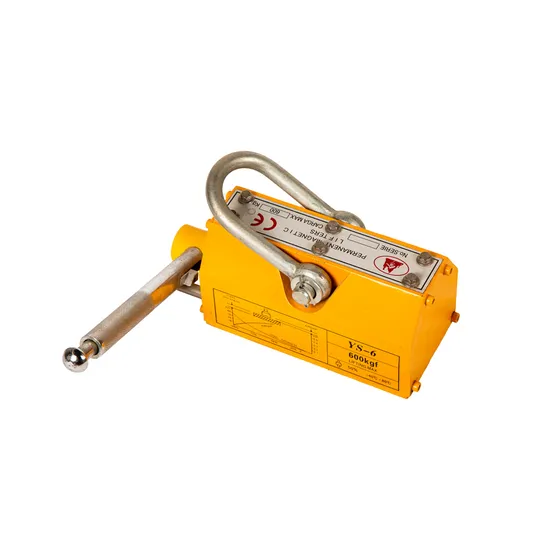

The permanent magnetic lifters are mainly used for lifting the steel plate and round steel, because of the light weight, ease of operation and powerful suction, magnetic lifters are widely applied in ship engineering, warehouse, transportation and machinery manufacturing. Features for magnet lifter:
1. Permanent magnetic lifter is widely used as lifting tools in factory terminals and warehouse. 2. Safe and reliable, easy to operate, can be used single or combined with other machines to move long and big magnetic iron steels. 3. Using high-performance permanent magnet, ensure the power and high safety. 4. Maintain constant and reliable magnetism without electricity, residual magnetism approach naught. 5. The maximum pull-off force as 3.5 times as rated lifting force which contribute to improve the working conditions of loading operation and labor productivity. 6. The lifting have high resistance to demagnetization, the lifting value will keep constant and stable.
Detailed Photos
Company Profile
Certifications
Packaging & Shipping

FAQ
Q1: Are you a manufacturer?
A1:Yes, we have been offering specialized products in this field for 22 years.
Q2:How do you pack these products?
A2:Usually packed according to export standard or your requirement.
Q3:Is it customizable?
A3:Yes, according to your requirements.
Q4: After-sales service
A4:24-hour technical support by phone, email .
Q5:What is your lead time?
A5:Spot goods usually take 7-10 days, and customization takes 15-25 days

---
