Basic Info.
Model NO.
fr-bio200 Standalone Access Control System
Communication Mode
TCP/IP
Fingerprint Capacity
1000
Display
2.8 Inch TFT Screen
Communication
TCP/IP,USB-Host
Standard Functions
Work Code, SMS, Dst,Self-Service Query, Automatic
Access Control Functions
3rd Party Electric Lock, Door Sensor, Exit Button,
Languages
Chinese, English, Persian,Arabic,Thailand, Indones
Dimension
184*136*37.6mm(Length×width×thickness)
Transport Package
Neutral Packing
Production Capacity
10000PCS/Per Month

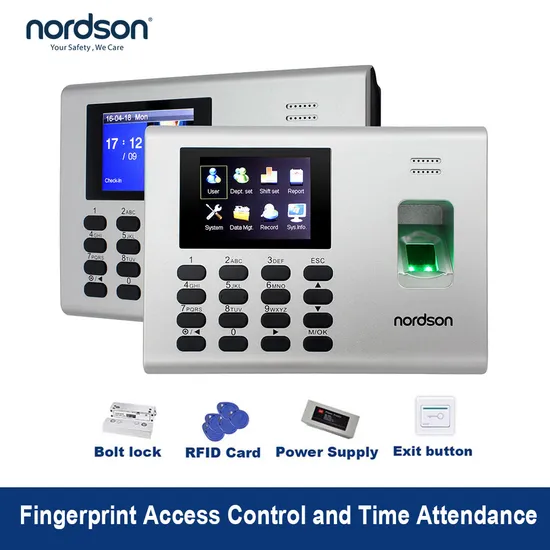

Product Description
Self-Service Report Built-in Battery RFID Card Face Zksoftware Wifi Rfid Face Recognition Biometric Access Control Fingerprint Time Attendance Terminal Machine
FR-BIO200 SSR Standalone fingerprint Time Attendance System with Access Control Built-in Battery,TCP/IP & USB designed especially for the purpose of popularizing the fingerprint products.It could store 1000 fingerprint templates and 80000 transaction records. High speed and reliable fingerprint matching, it can match 1000 fingerprint templates within 2 seconds.
Specification:
Fingerprint Capacity | 1000 |
Record Capacity | 80000 |
Display | 2.8 inch TFT screen |
Communication | TCP/IP,USB-Host |
Standard Functions | Work code, SMS, DST,Self-Service Query, Automatic Status Switch,Built-in Backup Battery |
Optional Functions | ID/Mifare, Webserver, 9 digit user ID, Extensible barcode,Scheduled-bell, and Wi-Fi, ADMS,GPRS |
Access Control Functions | 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell |
languages | Chinese, English, Persian,Arabic,Thailand, Indonesia, Spain, France, Portugal, Germany, Russian,Turkey, Iran, Iraq,Korea |
Power Supply | DC 12V |
Verification Speed | ≤0.5 sec |
Operating Temp. | 0°C- 45°C |
Operating Humidity | 20%-80% |
Dimension | 184*136*37.6mm(Length×Width×Thickness) |
Gross Weight | 1.5kg |
Main Features:
1.Fingerprint capacity:1000;ID Card:1000
2.Verification Method:Fingerprint,RFID,password or any combination
3.Self-Service report in excel forms
4.Display:2.8-inch TFT Screen
5.Embedded Linux OS
6.Record capacity:80000
7.Communication:TCP/IP, USB-host
8.Access control interface for 3rd party electric lock,door sensor,exit button,alarm,door bell
9.Work Code, SMS, DST, Self-Service Query,Automatic Status Switch, Scheduled-bell, T9 Input, 9 Digit User ID, Built-in Battery
10.Optional language:English,Portuguese, Arabic, Persian ,Spanish etc.
11.Dimension:184*136*37.6mm
12.Gross weight: 1.5kg
>>
