Automatic Metal Slitting Machine Steel Coil Slitting Line Slit to Length Line

Product Description

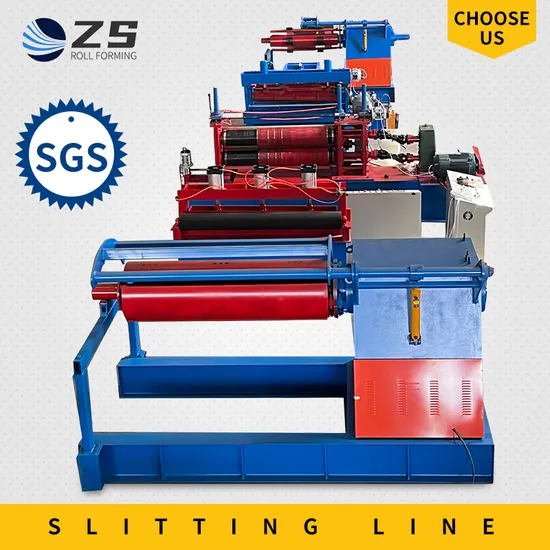

Automatic High Speed Slitting Line

Slitting line is mainly used for metail coil shear from decoiling,feeding, head shear, loop, slitting to recoiling.
Its function is to shear wide metal coil longitudinlly into narrow coils, many kinds of material are availble to shear, such as,

cold rolled plate, electrolytic galvanized plate, hot dip galvanized plate, color-coated plate, stainless steel plate, aluminum plate,
cooper plate etc.

No.	Item	Spec.	Details
1	Hydraulic Decoiler	Capacity of un-coiler	10T
		Width of steel coil	1500MM
		Inner diameter of steel coil	508-630mm
		Outer diameter of steel coil	1500MM
		Material of main shaft	40Cr
		Decoiler motor	7.5KW
		Hydraulic motor power	4kw
2	Flattening -slitting	Coil material	Galvanized sheet, PPGI, GI
		Thickness of material	0.3-3.0mm
		Width of material	1250-1500mm
		Slitting speed	10-50m/min
		Slitting width tolerance	±0.1mm
		Diameter of shaft	200mm
		Minimum width	20mm
		Power of slitting	30kw
		Material of blade	6CrW2Si
3	Hydraulic Recoiler	Active re-coiler	active to recoiling
		Capacity of un-coiler	10T
		Width of steel coil	1250-1500mm
		Inner diameter of steel coil	508-610mm
		Outer diameter of steel coil	1500mm
		Material of main shaft	40Cr
		Recoiler motoe power	30kw
		Hydraulic motor power	4kw

Slitting Line Layout :
Detailed Photos
10 tons Hydraulic decoiler with car
Active un-coiler: active to uncoiling.
Capacity of un-coiler: 10 tons
Width of steel coil: 1250mm
Inner diameter of steel coil: 508-610mm
Outer diameter of steel coil: φ1300mm
Material of main shaft: 40Cr
Decoiler motor:5.5kw
Hydraulic motor power: 4kw
Uncoiling speed: 10-30m/min

Flattening -slitting oil material: Galvanized sheet, PPGI, GI
Thickness of material: 0.3-3.0mm;
Width of material:1250mm;
Slitting speed:10-30m/min;
Slitting width tolerance: ±0.1mm
Work pressure of hydraulic system: 12Mpa;
Diameter of shaft:200mm
Minimum width:20mm
Power of slitting:22kw

Tension unit & Scrap Winding:
This system can stamping strip steel afer slitting and feeder them into the decoiler.

10 tons with car hydraulic recoiler with pressing arm
Active re-coiler: active to recoiling.
Capacity of un-coiler:10tons
Width of steel coil: 1250mm
Inner diameter of steel coil: 508-610mm;
Outer diameter of steel coil: φ1300mm
Material of main shaft: 40Cr
Recoiler motoe power:15kw
Hydraulic motor power: 4kw
Pneumatic damp pressing arm
Recoiling speed: 10-30m/min
