Perfect Laser- 1000W 1500W 2000 Watts Portable Handheld Metal Fiber Laser Welding Soldering Welder Machines

Product Description

Perfect Laser- Factory1000w 1500w 2000 Watts Portable Handheld Metal/Stainless Steel/Iron/Aluminum/Copper/Brass/SS/MS Fiber Laser Welders Welding Machines
(Model:PE-W1000G)
Product Description

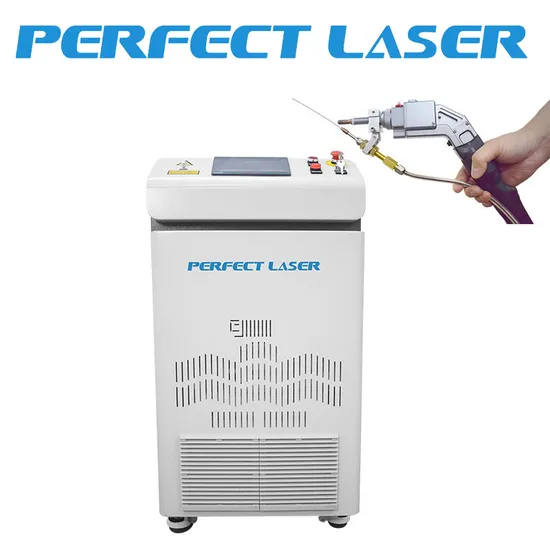

The PE-W1000G portable fiber laser welding machine adopts continuous fiber laser source. It's a fiber and metal welding machine.
Adopting industrial integrated design, the structure is compact and beautiful, laser beam mode is good and can make the energy concentrate. So the machine's performance is stable and reliable, with long lifespan consumables.
The fiber laser welding head adopts water-cooled design, so it won't get over-heated during welding, small diameter, easy for hand-holding.
This laser soldering machine can also match different materials.
Application
1.Applicable materials
This portable laser welding machine is used for welding of various 3mm thin metal materials.
2.Applicable industry
This laser soldering machine is widely used in the advertising industry, such as LED letters, advertising signs and other industries.
Product Features
1. This portable laser welding machine is mainly for welding 3mm thin metal sheet. Unlike traditional YAG welding technology, it's easier to deform the thin plate metal welding.
2. The laser mode of this fiber welding machine is in continuous light mode, so the welding surface is smooth.
3. Users can quickly learn to operate this laser welding machine china, it saves technical labor costs.
4. A variety of hand-held laser welding heads are available for this portable laser welding machine china. Different hand-held welding laser heads can be selected for various requirements such as metal parts, internal welding, right-angle welding, narrow-side welding, and large spot welding.
5. Heat affected zone is small and the deformation of the laser soldering machine due to heat conduction is also lower.
6. Higher efficiency. Traditional welding adopts arc welding, the work efficiency is low. This portable laser welding machine china breaks through the traditional practice and adopts directional point-to-point welding, which is 10-15 times faster than ordinary welding method, thus, has higher working efficiency.
Product Parameters

Product Name	Portable Laser Welding Machine
Model	PE-W1000G
Input Voltage	220V / 50HZ / 20A
Maximum Input Power	3.5 KW
Fiber Laser Source	1000 W
Welding Thickness	3mm
Welding Head Configuration	QBH + double water cooling inside
Laser Mode	Continuous / Modulation
Laser Wavelength	1070nm
Beam Divergence Angle	≤1.2mrad/m
Welding Interface	QBH
Fiber Cable Length	10m
Laser Spot Diameter	0.2-2mm,adjustable
Targeting	Red light
Cooling System	1000w water cooler inside,double circulation system, Heat-exchange titanium tube,over-heat alarm, flow protection, water level protection
Machine Size	1030x600x1200mm
Whole Weight	260 KGS

Machine Details

After Sales Service
Training&Service:
1. 12months Gurantee Period;
2. Free Online Consulting Service
3. Free Operation Tranining in our factory;
4. Detailed Operational Manual &Traning CD in English Version
Guarantee of Quality and After Sales-Service:
The guarantee period of quality shall be 12 months counting from the date on which the commodity arrives at the port of destination. Except the artificial damage and wearing parts, we are responsible for offering the fittings free of charge during the guarantee period, but you must send the damaged fittings to us by courier with your charge before we send back the alternative fittings to you. After the guarantee of quality period, the parts required to repair or change, if any, shall be paid
Remark:
1. Payment terms: T/T, L/C, West Union
2. Delivery lead time: 7-10 working days after receipt of the advance payment.
3. Delivery method: by sea or air shipment.
4. Packing: compound wooden cases with exporting standard
Company Profile
We, Perfect Laser, As a 25years history industrial equipment manufacture in laser field, with CE/ISO/FDA, we aims to make high quality products, and also our products have been exported to more than 180 different countries and areas.
Contact

Perfect Laser Co., Ltd. (China)
Contact: Cindy / Sales Department
MP: 0086 136 5989 7768 Tel: 0086-27-86791986
Fax: 0086-27-8678 3982
Add: HengRuichuangzhi Technology Park, No.13 YangQiaohu Road, Jiangxia District, Optical Village, Wuhan, Hubei, China(430200).

---
