High-Quality Expanded Metal Mesh Machine for Slope Protection for Black Iron Sheet, Security Fencing, and Construction Reinforcement

Product Description

Product Description

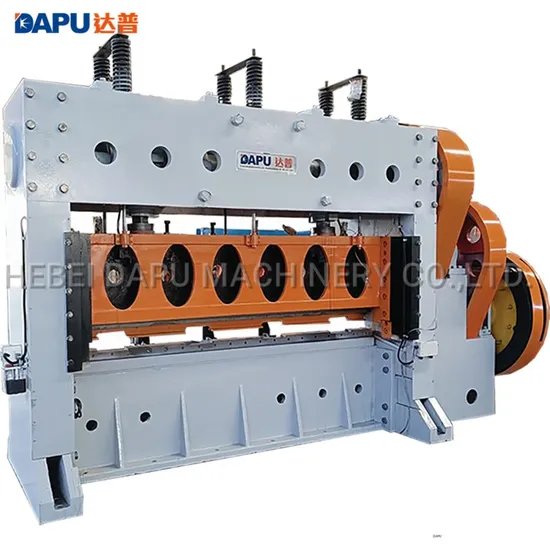

Expanded metal mesh machine

1. Product Description
Expanded metal mesh machine can produce expanded metal mesh which is widely used in construction, hardware, window and door, machine protection etc.
Raw material can be low-carbon steel plate, stainless steal plate, aluminum plate, copper
plate, etc.
Our machine can be produced max. 3200mm and thickness of metal sheet max. 8mm.The material for expanded metal sheet mesh making machine can be low carbon steel plate, stainless steel plate, aluminum plate, copper plate and so on.
2.Technical Parameter:

Model	DP25-16	DP25-25	DP25-40	DP25-63	DP25-100	DP25-160	DP25-260
Material Thickness(mm)	0.1-1	0.1-1.5	0.1-2.5	0.5-3	0.5-5	0.5-8	0.5-10
Material Max.width(mm)	1000	1250	1500	2000	2000/2500	2000/ 2500/ 3200	2000/ 2500
Speed (times/min)	220	200	110	75	60	50	45
Feed Distance(mm)	0-2.2	0-3	0-6	0-6	0-10	0-10	0-12
Mesh opening Size LWD(mm)	≤25	≤30	≤80	≤150	≤180	≤200	≤150
Motor(kw)	5.5	5.5	11	11	18.5/22	30	55
Weight(T)	2.2	3	7	11	13/15	18/20/26	26/ 29
Size(mm)	1.1×1.7×2	1.5×2.1×2	1.8×3.2×2.1	3.4×3.4×2.35	3.4×3.6×2.65	3.5×3.7×2.65	3.7×4.9×2.7

We can design the machine according to your metal materials and metal thickness. 3. Advantages

1	Steel metal cover for rotating wheels to ensure safety operation.
2	Alloy cutter mold can be made of Cr12#1 or YG-8 hardened tool steel, life up to one year.
3	Cast steel base and unit, shock-resistance and working smooth.
4	Central lubrication system to decrease machine wearing out and make maintenance easily.
5	Pneumatic clutch brake + step motor. Pneumatic cluth brake to stop the machine, more fast
6	Electric and pneumatic system PLC +Text screen control, easy to operate, one worker is ok

4. Related machinery. - Hebei Jiake Welding Equipment Co.,LTD
Mesh welding machine series:
Reinforcing mesh welding machine, fence mesh welding machine, animal cage welding machine, steel grating welding machine, electric welded wire mesh machine, wedged wire screen welding machine, wire straightening and cutting machine etc.
Mesh weaving machine series:
Chain link fence machine, barbed wire machine, razor barbed wire machine,wire drawing machine, expanded metal mesh machine, grassland wire mesh machine, gabion mesh machine, hexagonal wire mesh machine,steel fiber making machine etc.
4.1 Concertina razor barbed wire machine
Razor barbed wire machine, also called Concertina razor barbed wire machine, Razor wire making machine, Razor wire fence machine, is used to make razor barbed wire for security use.

		Punching machine -- from YANGLI			Coiling machine-- Inverter controlled
Speed		220-280m/h			800 kgs/ 8hours
Raw material		Galvanized steel sheet; Or Stainless steel			Galvanized wire
Thickness		0.5±0.05mm			2.5-3mm, 2.5mm is popular
Motor		2.2kw/ 4kw/ 5kw			1.5kw
Voltage		Customized as request			Customized as request
Weight		2200/3300/ 4500Kgs			300kgs
Dimension		1325×990×2140 mm			1100*750*1200mm
Razor model	Barb Length (mm)	Barb Width (mm)	Barb Spacing (mm)	Illustration		Punch Capacity (strips)
						By 25T	By 40T	By 63T
BTO-22	22±1	15±1	34±1			9	9	11/13
BTO-65	65±1	21±1	100±1				5	9
Our machine can make other razor models. Please contact us for more information:

4.2 Expanded metal mesh machine
Expanded metal making machine is to make expanded metal sheet for construction, protection fence, isolation mesh, decoration mesh, industrial filtering.

Model	DP25-100T
Raw material	low-carbon steel plate, stainless steel plate, aluminum plate, copper plate, etc.
Material width	Max.2000mm
Material thickness	0.5mm-4mm
Stroke per minute	65times/min
LWD of mesh opening	Max.150mm
Distance of feed	0-10mm
Motor	18.5kw
Overall dimension	3300×3700×2500mm
Net weight	12T
We have 16T, 25T, 40T, 63T, 100T, 160T, 260T for different specifications.

4.3 Hinge joint knot fence machine
Hinge joint knot fence machine, also called Field fence Machine, Grassland fence machine or Cattle fence machine, Farm fence machine. Field fence machine adopts a frequency-adjustable-motor to drive the machine and uses a counter to calculate woven fence, easy operation.

Model	CY2000
Fence roll length	Max.100mtrs, popular roll length 20-50m.
Fence height	Max. 2000mm
QTY of Horizontal wire	18
Distance between vertical wires	50-500mm adjustable, popular 150mm
Processing way	Cell is processing in height.
Inner wire diameter	1.9-2.5mm
Side wire diameter	2.0-3.5mm
Horizontal wire distance	6*75mm+11*100mm + 3*150mm = 2000mm
Max. work efficiency	Max.45rows/min; Max. 405m/h
Motor	5.5kw
voltage	according to client's voltage
Dimension	3.4×3.2×2.4m
Weight	4T
We can customize machine as your request.

4.4 Hexagonal mesh machine
Reverse twisted hexagonal wire mesh machine, also called chicken cage machine, double twisted hexagonal mesh machine, is used to make hexagonal mesh for fences of farmland and grazing land, chicken husbandry, reinforced ribs of building walls and other nets for separation.

Raw material	Galvanized steel wire, PVC coated wire.
Wire diameter	0.4-0.9mm	0.4-1mm	0.55-1.1mm	0.7-1.7mm	0.7-2.0mm
Mesh size	1/2"	3/4"	1"	2"	3"
Mesh width	2600mm	3300mm	3300mm	3300mm	3300mm
Working speed	80-100m/h	90-110m/h	100-120m/h	160-180m/h	190-220m/h
Motor	10.5KW	10.5KW	10.5KW	10.5KW	10.5KW
Machine Dimension	6.5*3.3*1.6M	6.5*4.5*1.6M	6.5*4.3*1.6M	6.5*4.3*1.6M	6.5*4.3*1.6M
Machine Weight	3T	3.5T	3.2T	3.4T	3.4T
Note: 1. One hexagonal mesh machine can only make one hole size. 2. Special hole size can be customized as your request.

4.5 High speed barbed wire machine
Barbed Wire Making Machine produces barbed wire. Barbed wire is used for protection use, in playground fence, livestock feeding or national boarder, in national defense, agriculture, animal husbandry, expressway, etc.

Model		CS-A	CS-B	CS-C
Motor power	KW	2.2	2.2	2.2
Main drive shaft speed	r/min	402	355	355
Strand wire diameter	mm	1.6-3.0	2.0-3.0	1.6-2.8
Barb wire diameter	mm	1.6-2.8	1.6-2.8	1.6-2.8
Barb pitch	Inch	3", 4", 5", 6"	3", 4", 5", 6"	4", 5", 6"
Twisted number		3-5		7
Raw material		Galvanized steel wire or PVC coated wire.
Production		70kg/h, 20 meters/minute	40kg/h, 17 meters/minute	40kg/h, 16.5 meters/minute
Total weight	KG	1200	1000	1000
Dimension	mm	1950×950×1300	3100×1000×1150	3100×1000×1150

4.6 Chain link fence making machine
Full auto chain link fence machine, also called diamond mesh machine, rhombus wire machine, Chain link fence making machine. Chain link fence is extensively used for fence in the playground, residence, power station, airport, mining spot, etc.

Model	DP25-80, double wire feeding.
Capacity speed	120 to 180 square meters/hour.
Wire diameter	1.8-4mm
Mesh opening	25-85mm
Weaving width	Max. 4m
Weaving length	30m, adjustable freely as your request.
Raw material	Low carbon wire like Galvanized wire, PVC Coated wire. Tensile strength 350-600MPA.
Electric system	Japan Mitsubishi PLC origin + Delta Servo motor + French neider components.
Weight	3900kg
Dimension	Main machine: 6700*1430*1800mm

4.7 Fence mesh welding machine Fence mesh welding machine is also called fence mesh welding line, security fence machine, anti-climb fence welding machine, and fence panel machine. It is used to make fence mesh, road mesh, reinforcing mesh, shelf, explosion-proof wall etc.

Model	DP-FP	Wire diameter	2.5-6mm
Line wire pitch	50-300mm	Welding torch	48pcs
Cross wire pitch	Min.12.7	Welding speed	Max.80 times/min
Welding width	Max.3m	Welding transformer	150kva*6/10pcs
Mesh length	Max.4m	Mesh type	panel mesh

4.8 Welded wire mesh machine in roll
Welded wire mesh machine, also called welded roll mesh machine, electric welded mesh machine, electric mesh welding line.
It's used to make construction mesh, wall mesh, animal cage, mining etc.

Model	DP-DNW	Wire diameter	0.65-2.5mm
Line wire pitch	6.25-150mm	Cross wire pitch	6.25-150mm
Mesh width	0.9-2.5mm	Main motor	2.2kw/4kw/5.5kw/7.5kw
Welding transformer	60-80kva*3/4/5/7/8pcs	Welding speed	Max.60-180 times/min
Weight	2T/2.5T/3T/3.5T/4T	Mesh type	roll mesh

4.9 Roll BRC mesh welding machine Roll mesh welding line,also called automatic welded mesh machine,welded wire mesh roll machine,used to make road mesh,reinforcing mesh,construction mesh etc.

Model	DP-FP-2500BN	Wire diameter	2.5-6mm
Line wire pitch	50-300mm	Cross wire pitch	Min.50mm
Welding width	Max.2500mm	Roll length	Max.100mm
Welding speed	Max.75 times/min	Welding torch	48pcs
Welding transformer	150kva*6pcs	Mesh type	roll mesh

4.10 Pneumatic reinforcing mesh welding machine Reinforcing mesh welding line,also called BRC mesh welding machine,construction mesh welding machine.with more than 20 years experience on desgin and manufacture,our BRC mesh welding machine is featured by high capacity,easy operation and precise control.

Model	DP-GW-2500	Wire diameter	3-12mm
Line wire pitch	50-300mm	Cross wire pitch	Min.12.7/25mm
Mesh length	Max.12m	Mesh width	Max.3000mm
Welding torch	Max.24/30/48/61pcs	Welding transformer	150kva*6/8/12/15pcs
Welding speed	Max.80 times/min	Mesh type	panel mesh

4.11 Chicken cage mesh welding machine
Chicken cage mesh welding machine,also called poultry cage mesh welding machine,breed aquatics welding machine.
It's used to make breed aquatic mesh,poultry mesh,coop,pigeon mesh,rabbit mesh etc.

Model	DP-AW-1600E	Wire diameter	2.2-3.5mm
Mesh width	Max.1600mm	Line wire pitch	Mostly 50-300mm
Welding speed	Max.1200 times/min	Cross wire pitch	Min.20mm or custom
Welding torch	25/30/32pcs	Welding transformer	125kva*3/4pcs
Weight	2.5T/3T/3.2T	Mesh panel	panel mesh and roll mesh

6. Loading photos.- Hebei Jiake Welding Equipment Co.,LTD
Jiake machine has been managed by the standard of ISO9001 International Quality Management System. We have built good reputation among our customers with excellent quality products, reliable services and credit. We have been supplying the domestic market and also have exported to more than 100 countries and regions including: Middle East, Kazakhstan, Vietnam, Philippines, India, Thailand, South Africa, Sudan, Polynesia, Russia and other countries and regions. 7. FAQ to Hebei Jiake Welding Equipment Co.,LTD
Q1: Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q2: How many years are your company engaged in the wire mesh machines?
A: More than 25 years. We have our own technology develop department and testing deparment.
Q3: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.
Q4: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q5: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, passport, SGS report etc, your customs clearance will be no problem.
8. Our factory - Hebei Jiake Welding Equipment Co.,LTD
Hebei Jiake Welding Equipment Co., Ltd., founded in 2000, is located at the junction of Bejing, Tianjin and Shijiazhuang - Anping county, which is famous as "Hometown of wire mesh" in China. We are a professional manufacturer of wire mesh machinery. Our company has been developing smoothly and quickly and now we have more than 100 employees. We have our own wire mesh machinery and several pilot plants with strong technical force and advanced production and checkout equipment.
Our main products: 3D panel production line, steel bar mesh welding machine, CNC fence mesh welding equipment, EPS panel production line, 3D panel wire mesh machine (bevel inserting combination joint machine), reinforcing construction mesh (heat separate mesh) welding machine, welding equipment of mine sieve mesh, breed aquatics mesh welding machine, floor warming mesh welding machine, steel grating welding equipment, hexagonal mesh weaving machine, expanded metal machine, razor wire machine, Diamond mesh machine, pneumatic spot welding machine and straightening & cutting machine.
9.Our customers - Hebei Jiake Welding Equipment Co.,LTD
We stick to the business principle of "Favorable comments from high quality product and service", and thus we supply a whole-process service from product designing, developing, producing, installing and after-sales service for the clients with first-class techniques top-grade products. Our company has been awarded the title of "Credible and Reliable Product & Service Supplier" by numerous users. We also keep developing on basis of superexcellent management level and advanced development consciousness so as to bring our machinery to both domestic and overseas markets.We sincerely look forward to your cooperation in future and warmly welcome your arrival to build our common beautiful future.
10. Contact Us:
Mr. Polar
Sales Manager
Mobile: +86 13739793015
Web: mesh-welding-machine.en.made-in-china.com

---
