Hx2110 Model 200kw Hydraulic Drum Wood Crusher Machine Wood Chipper Wood Chipping Machine to Make Small Wood Chips for Biomass Pellet Production

Product Description

Product Description

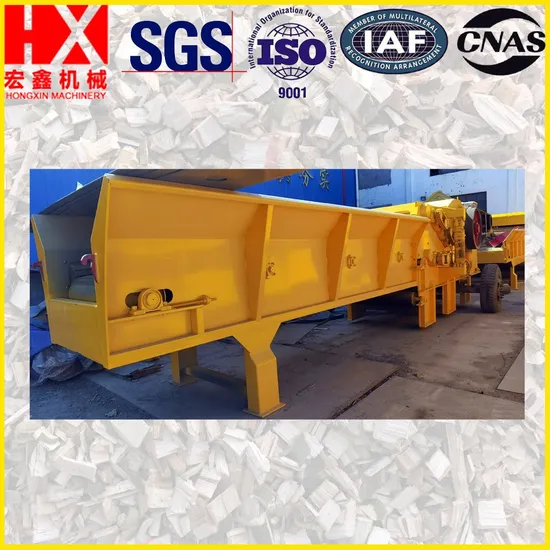

Drum wood chipper is a specialized machine for producing wood chips in wood factory, and widely used for preparing raw material in chipboard plant, fiber board plant and paper-making plant.
Raw material of wood chipper are mainly undersized log, wood cutting residue (branch, twig) and wood processing residue (slab, batten, wood core, and waste veneer), as well as non-wood material (such as waste of flax, cotton stalk, reed and bamboo.)
Product Structure
Wood chipper is composed of engine base, knife roller, upper and below feeding mechanism, feeding conveying device, discharging conveying device, hydraulic buffer system and electrical control system. Detailed Photos
Product Parameters

No.	Item name	Specification	HX2110
1	Feed system	Input size	1050 x 700 mm
2		Feed chute length	5 m
3		Feed chute width	1050 mm
4		Feed coveyor type	Belt conveyor
5		Feed roller quanity	4+4
6	Main machine	Body thickness	25 mm
7		Rotor diameter	1000mm
8		Rotor length	1150mm
9		Max wood diameter	450 mm
10		Main motor	200 kw
11		Feed motor	11 +7.5kw
12		Discharge motor	5.5 kw
13		Oil pump motor	4 kw
14		Rotation speed	550 rpm
15		Rotor type	4 Blade rotor, 8pcs of blades
16		Screen mesh size	60 x 60 mm
17	Dsicharge system	Output size	30-50mm
18		Produciton capacity	10-15
19		Discharge conveyor	5.5kw, 10m
20	Control system	Control system	Soft starter + inverter + remoter control
21	Main machine diemension		9.5 x 2.28 x 2.32m
22	weight		16t
23	Container delviery		1x40OT
