Textile Machinery Spare Parts Thread Yarn Screw Loop Al2O3 Coil Winding Machine Double Flanged Ring Guides 95% Alumina Ceramic Eyelet

Product Description

Textile Machinery Spare Parts Thread Yarn Screw Loop Al2O3 Coil Winding Machine Double Flanged Ring Guides 95% Alumina Ceramic Eyelet

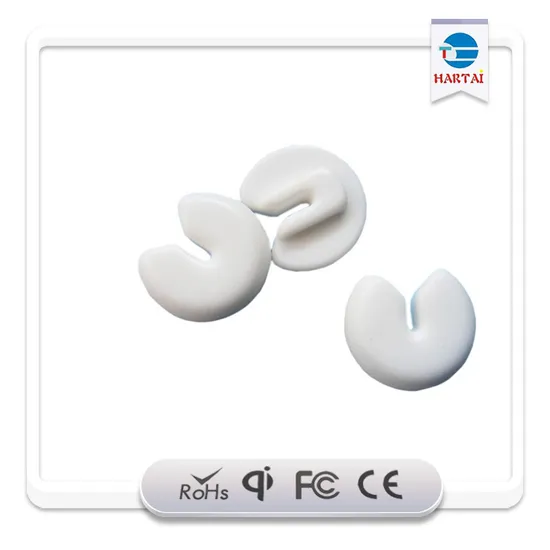

95% Alumina Ceramic Eyelet (Double Flanged Ceramic Ring, Ceramic Trap Guides)
Ceramic eyelet guides (Ceramic ring ) and zirconia ceramic eyelet are applied to the coiling machine and spinning and weaving machinery, it is in common use fault silk another piece, is used to demand no high fault silk occasion. Silk thread slides when the job, in China eye outside, for reducing friction, must raise material hardness, smoothness and form. Our company selects and uses 99%'s Al2O3, hardness greater than HRa88, density 3.85, surpasses essence throwing Ra0.2.
The alumia ceramic (Textile ceramic eyelet) Zirconia ceramic eyelet is used to set less (friction is also less) location of pressure right. For cost reduction, according to using a request, smoothness polishing handicraft is allotted being (0.8 throw Ra) roughly, is throw (Ra accurate 0.4), surpasses essence throwing (Ra0.2). Be that single face is super-accurate at the same time mark throw and two-sided super-accurate throw. Specification of China eye many, select and use specification listing in common use in sopport a customer the day afer tomorrow now, also may demand making to order according to the customer. The alumina ceramic eyelet(zirconia ceramic eyelet) is one of our feature products with competitive price.
Please notice that we can offer different types of ceramic eyelets, you can turn to our website to see what kind of eyelets do you want or you can contact us by our web: http://hartai.en.made-in-china.com.Thank you.

Art.No	A	B	d	D	E
JL0195-11444	2.6	1.8	0.8	11.5	1
JL0199-11562	2.6	1.8	0.8	2	0.4
JL0195-11878	2.6	1.85	1.3	8	1
JL0195-11443	2.5	1.95	1.1	16	1
JL0195-11399	3	2	1	5	1
JL0100-11489	3.1	2	1	5	1
JL0195-11903	2.75	2	1.3	98	0.8
JL0195-22929	3	2	1	12	1
JL0195-11468	2.8	2.1	1.2	9.6	0.8
JL0195-11442	3	2.3	1.3	10.5	1
JL0195-11494	3	2.3	1.3	14	1.5
JL0199-11522	3.8	2.3	1.3	6.1	1.3
JL0195-11924	3.1	2.3	1.5	5	1
JL0100-11933	3	2.3	1.3	7.2	1.1
JL0195-11177	3.8	2.5	1.5	3.6	1
JL0100-11177	3.8	2.5	1.5	3.6	1
JL0100-11204	4	2.5	1.5	6.8	1.3
JL0100-11239	3.8	2.5	1.5	5	1
JL0100-11257	3.5	2.5	1.8	1.5	1
JL0100-11324	3.8	2.5	1.5	5.9	1.2
JL0199-11474	3.5	2.5	1.4	4	1
JL0195-11487	3	2.5	1.5	2.5	1
JL0195-11514	.8	2.5	1.5	6.7	1.2
JL0195-11515	3.8	2.5	1.5	5.2	1.2
JL0195-11516	3.8	2.5	1.5	4.2	1.2
JL0195-11517	3.8	2.5	1.5	3.2	1.2
JL0100-11568	3.8	2.5	1.5	4	1
JL0100-11881	3.8	2.5	1.5	6.8	1.3
JL0100-11882	3.8	2.5	1.5	5.3	1.3
JL0195-11923	3.3	2.5	1.6	11	1
JL0195-11925	3.8	2.5	1.5	15	1
JL0195-11926	3.8	2.5	1.5	8	1.3
JL0195-11930	3.5	2.5	1.6	11	1
JL0199-11511	4.5	2.7	0.9	3	1
JL0195-11182	4	2.8	1.2	4.2	1.2
JL0100-11187	4.8	2.8	1.2	4.2	1.2
JL0195-11199	4.8	2.8	1	3	2
JL0100-11240	4.8	2.8	1.5	4	1
JL0100-11310	4.8	2.8	1.5	3	1
JL0100-11353	4.8	2.8	1.2	3.2	1.2
JL0195-11495	3.5	2.8	1.8	13	1.5
JL0100-11500	4.8	2.8	1.7	4	1
JL0197-11535	4.4	2.8	1	2.9	1
JL0100-11119	4.2	2.9	1.7	4.2	1.2
JL0195-11184	4.9	2.9	1.5	4.2	1.2
JL0100-11208	4.9	2.9	1.6	3.1	1.1
JL0195-11258	5.8	2.9	1.5	3	1
JL0199-11185	4.2	3	1.5	3	1
JL0195-11186	4.2	3	1.7	4.2	1.2
JL0100-11205	5	3	1.8	2.1	1
JL0100-11206	4.2	3	1.8	4.2	1.2
JL0100-11241	4.2	3	1.7	2	1
JL0100-11242	4.2	3	1.7	3	1
JL0199-11277	4.2	3	1	4	1
JL0100-11440	4.3	3	1.7	4.35	1.2
JL0195-11447	4.2	3	2	5	1
JL0195-11473	4.2	3	1	3	1
JL0195-11493	3.5	3	1.3	13	1.5
JL0199-11851	4	3	2	3	1
JL0199-11890	4	3	0.8	3	1
JL0199-11897	4.2	3	1.6	3.2	1.1
JL0195-11922	4.5	3	1.8	15	1
JL0195-11927	4.2	3	1.7	8	1
JL0195-11955	4	3	1.8	15.5	1.5
JL0195-11103	4.2	3.1	1.7	4.2	1.2
JL0100-11118	4.4	3.1	1.4	3.9	1.5
JL0100-11898	4.8	3.1	1.6	4.1	1.1
JL0100-11209	4.5	3.2	1.7	5	1
JL0100-11210	4.5	3.2	1.2	5	1
JL0100-11211	4.5	3.2	1.5	5	1
JL0100-11267	5.7	3.3	1.7	3.4	0.9
JL0100-11465	4.8	3.3	1.5	5	1.2
JL0100-11884	4.9	3.3	1.5	5	1.2
JL0100-11266	4.6	3.4	2.1	3.6	1
JL0199-11298	4.5	3.5	2	3.2	1.2
JL0195-11463	4.8	3.5	1.8	3.2	1.2
JL0199-11559	6	3.5	1.6	4.5	1
JL0199-11573	5	3.5	2.4	3.6	1
JL0195-11956	4.5	3.5	1.6	3.8	1.2
JL0199-11181	6	3.6	2	5	0.8
JL0100-11450	6	3.6	1.7	5	1
JL0100-11251	7	3.7	2	4	1.5
JL0195-11327	6	3.7	2.4	23.3	1.3
JL0195-11356	4.7	3.7	2	4.7	1.7
JL01997-11251	7	3.8	2	4	1.5
JL0199-11251	7	3.8	2	4	1.5
JL0100-11256	5.5	3.8	1.9	3	1.5
JL0100-11311	5.5	3.8	1.5	4.5	1.5
JL0195-11848	5.5	3.8	1.9	6.4	1.4
JL0199-11510	6	3.8	1.8	3.5	1
JL0195-11855	7	3.8	2	4.3	1.3
JL0199-11883	6.4	3.8	1.8	1.8	1
JL0100-11947	7	3.8	2	4	1.4
JL0195-11391	5.5	3.9	1.8	3.8	1.3
JL0100-11471	5.5	3.9	1.5	5.5	1.5
JL0195-11492	5.7	3.9	2.3	4	1.4
JL0199-11570	5.7	3.9	0.55	4.1	1.1
JL0199-11584	5.7	3.9	0.35	4.1	1.1
JL0199-11894	6.4	3.9	2	1.8	1

JL0195-11909	5.9	3.9	2.2	4.5	2
JL0199-11144	6	4	2.5	6	1
JL0100-11150	5	4	2.5	5	1.1
JL0100-11227	5	4	2.7	4
JL0195-11315	5.9	4	2	8	1.2
JL0195-11331	6	4	2	8	1.3
JL0195-11351	5	4	2.5	5	1
JL0195-11392	6	4	2.5	5	1.4
JL0195-11422	5	4	2.5	4	1

---
