US$1.323-3.897
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
Mini 1X8 PLC Splitter
Model Numbe
Mini 1X8 PLC Splitter
Operation Temperature
-40~+85
Connector Type
Sc/APC or Sc/Upc
Transport Package
Plastic Box/Suitable Quantity in One Carton
Origin
Zhejiang, China (Mainland)
Production Capacity
100000 Piece/Pieces Per Month
Product Description
★Description

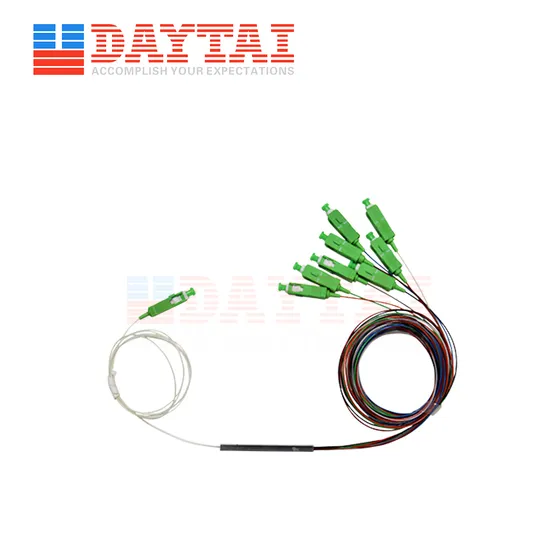

★SC/APC 1x8 Fiber Optic Splitter
1x8 PLC Splitter Mini type,12 Standard Color,SM fiber,fiber optic cable OD:0.9mm pigtail,1m length, with SC/APC connector.
★Features
⊙FTTH
⊙Reliable
⊙Monitoring
⊙Smaller size
⊙CATV System
⊙Good Uniformity
⊙Network Protection
⊙Low Polarization loss
⊙Access/PON Distribution
⊙Not Sensitive to wavelengths
★Product Specification
Category | Specification | Remarks |
Fiber Type | G657A or G652 | |
The 0.9mm Tube | Outer Diameter | 900um | |
| Material | Hytrel | |
| Colour | Translucentc | Multicolor |
| Length | L1±50mm | L≥0.3M |
Connector type | SC,FC,LC | |
Number tube NO: | IN/Input No./Output | |
Category | Specification | Remarks |
Working Wavelength | NM | 1260~1650 | |
Test Wavelength | nm | 1310&1490&1550 | |
Insertion Loss | exclude connector | dB | ≤10.5 | |
| With connector | dB | ≤11.0 | |
Channel Uniformity | dB | ≤0.8 | |
Polarization Dependent Loss-PDL | dB | ≤0.2 | |
Directivity | dB | UPC≥50;APC≥55 | With connector |
Return Loss | dB | UPC≥50;APC≥55 | With connector |
Operating Temperature | ºC | -40~+85 | |
★Pictures
