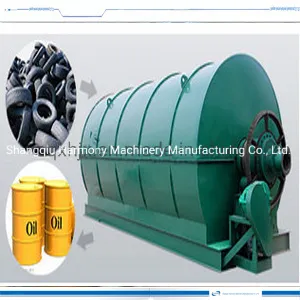

Pyrolysis Rubber to Oil Refining Plant 12ton

Product Description

1.Plant technical parameter

Machine type	Environmental friendly
Daily capacity	10Ton
Working pressure	normal
Working Tem	0-500ºC
Machine weight	35000kgs
Voltage	380v
Power	20KW
Ractor size	2600*6600mm
Working round area	600 square meters
Labours required	1
Reactor material	Q345R/stainless steel
Dedust system	High-class
Used for	Waste engine oil/waste lube/fuel oil
Out put	Base oil/diesel
Oil rate	70-85%
Feeding way	Auto and non-stop
Oil cooling way	Water cooling
Water consumption	500-1000kgs
Heating way	direct /indirect way
Heating fuel	Wool.coal,gas,oil

2.About oil rate for different material

Oil yied/day	Waste tire/ rubber	Big tyres	45%--50%
		Car tyres	40%
		Bicycles and motorcycles tyres	30%--35%
	Waste plastic	Fishing net	45%--50%
		Safety net , farm-oriented film
		Conwenient bags , weave bags	40%
		Off cut of recycled paper mill	20%--30%

3.Major parts
loading plastic into reactorheating reactor after heating , solid plastic converted to oil gasoil gas go into oil-gas separator ,heavy oil deposit and go to heavy oil tank, light oil gas go to cooling systemafter cooling ,light oil gas change to liquid oil and go into light oil tanknon-liquid oil gas will to water sealing tank, then back to combustor burning to heat reactor as fuelsmoke produced by heating reactor will go to dedust system, after dedust system treatment , smoke change to white clean waster steam ,then go to sky through chimney.
4.Work-flow
5. About us
Shangqiu Harmony Machinery Manufacturing Co.,LTd. is a professional manufacturer engaged in the research, development, production, sale and service of Environmental machines, waste tire/rubber/plastic pyrolysis equipment, waste oil distillation machines, etc. We are located in Economic and development Zone ,shangqiu city, Henan province, China, transportation convenient.
We have rich experience(8 years experience) in making and installation. Dayi is the top 10 enterprise in disposing waste rubber and plastic and has been cooperated with one South Korea company to dispose waste plastic . The company has gained rich experience and achievement in processing waste solid. This project in dealing with city living waste has been approved by South Korea government and the continuous equipment has been under testing in Korea. The production line of processing level 2 waste tyre with automatic control has been under testing in Hong Kong.
Our company is about 133400 square meter ,and the workshop is 58000 squremeter ,we have lathes ,milling machines,grinding machines and planders , broaching machines ,pucnhing machines,NC lathes,CNC miling machies,digital control drill and other testing device.We have more than 100 workers including 3 high-class engineers,10 professors ,and 40 technicists.Our Machine have been sold to India, Malaysia, Pakistan, Bangladesh, Lebanon, Mexico, Europe ETC.
6.Tire Oil Paramter

Item	Tire Oil
Density g/cm3	0.90-0.92
Freezing Point oC	-10
flash point oC	50
Kinematic viscosity mPa.s	6
Combustion valuekJ/kg	10500

---
