Gang Saw for Cutting Marble Block Stone Machine

Product Description

Eaststar marble gang saw with the best quality and good structures, The structure of eaststar gang saw with a middle connecting beam is connected with four vertical columns to ensure the maximum stability and the sustained mechanical pressure in the intensity-resisting operation process. Only one accurate and precision optimal solution for acceleration is to make connecting rods move horizontally together with saw blades along one axis. This means that mechanical thrust is centralized in the same direction, and is not dispersed to other directions. Marble blocks are fixed on a lifting platform. The lifting platform operates on two flat and two rhombus vertical guide rails. The flat and rhombus rails prevent the vertical surface from being deviated or inclined. An encoder controls the horizontal surface of the lifting platform.
Our gang saw with high capacity, the cutting speed can be 50-1000 mm/ hour.(Depend on stone type). Our after sale service team provide service 24 hours, with after sale office in Shengyang, Anhui, Guangxi, and oversea countries like,Vietnam, India , Turkey.
As a professional stone machine manufacturing enterprise with SGS certificate, eaststar gang saw manufacture in one completed steel piece instead welding two part, make sure the good function and safety,The beam casting by completed mould,The big wheel of gang saw we use stable structure,and compose two semicircle together. widely running in global stone enterprise, such as Turkey, Iran, vietnan, Oman, Brazil, etc.
You are wamly welcome to inspect our factory loacated in China biggest stone industry zone-Shuitou town, only 40 km from Xiamen airport.
Parameters of gang Saw

NO.	major parameters of the equipment	Unit	G-2250
	max dimensions of blocks can be processed	mm	3200*2250*2050
	Main motor power	KW	110
	equipment dimensions	mm	12425*4950*3800
	sawing speed	mm/h	50-1000
	range of the saw	mm	800
	specification of the saw	mm	4400(or4350)*(≥1.5)
	water consumption	L/Min/Pcs	11
	saw installation quantity	piece	100-120
	weight	Ton	58

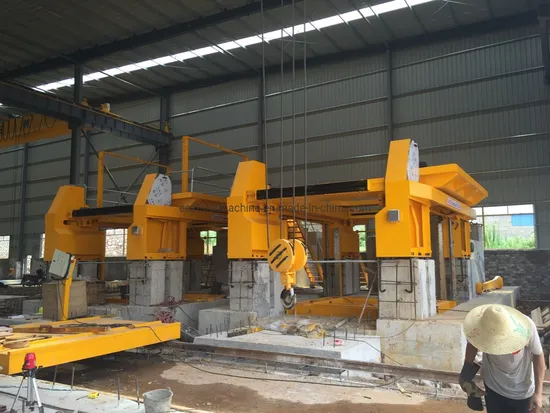

Manufacturing Factory photo :

---
