Capillary Tube Mats China Supplier
Product Introduction

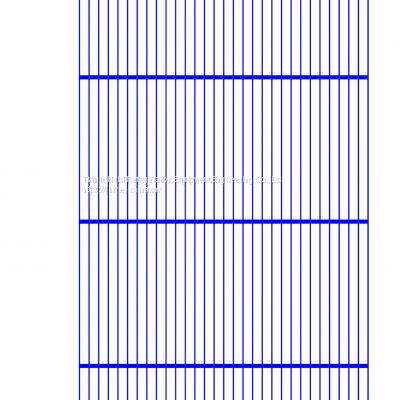

Capillary Tube Mat Introduction:
Capillary tube mat is consist of inlet and return water main tube and many capillary branch tubes. It is new energy-saving heating and cooling exchange system. Working principle of capillary tube mat is similar with the body’s blood circulation system. The water is flow in the capillary tube mat to achieved high efficiency of cooling and heating exchange. Supply the cooling and heating for the room. It is a kind of temperature control product of high efficiency, energy saving, environmental protection. Like this, it provide comfortable and healthy environment.
Capillary tube mats are used mainly in radiation systems like cooling & heating ceilings in property construction, convective cooling shafts and cooler columns, as flooring and wall systems for heating and cooling in living houses(primarily single-family homes) as well as ground collectors in conjunction with heat pumps.
Product Description
Main Parameters:
Product
| Capillary Tube Mat
|
Material
| PP-R, PE-RT
|
Main tube size
| 20*2.0mm
|
Capillary tube size
| 4.3*0.8mm
|
Capillary tube space
| 10mm, 20mm, 40mm,etc
|
Length (L)
| 500mm~12000mm
|
Width (B)
| 1000mm
|
Weight
| 290~870 g/m2
|
Water content
| 0.16~0.57 L/ m2
|
Total weight with water
| 320~1440 g/m2
|
Connection method
| On both sides of the hot melt welding and splice
|
Test Pressure before leave factory
| 20 bar
|
Hot Sales Models for your choose :
Product Details Show
Capillary tube mat Details:
Capillary tube mat Installation:
1. We are the verified first and largest manufacturer of capillary mats with a tradition of over 15 years
2. We use only the best quality PPR raw material with more outstanding performance!
3. All the sinolanc mats are produced on special advanced machines in strict accordance with quality standards and high precision and safety.
Every working step in the manufacturing process is monitored and recorded
4. Sinolanc mats have exported to 50 countries and established distributors in some European countries
and working with experienced installers can provide efficient technical and construction support overseas.
Such as Poland, Germany, Romania, Slovakia, Latvia, Lithuania, Netherlands, Switzerland, Italy, etc.
>>
