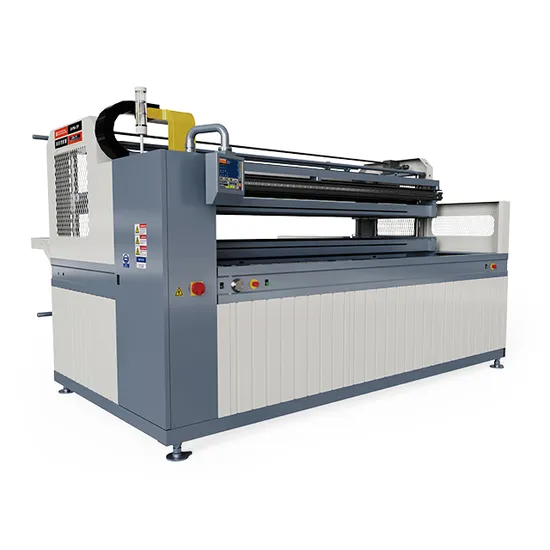

LR-PSA-75P Semi-automatic Mattress Pocket spring Assemblly Machine
| character model | LR-PSA-75P |
| Production capacity | 5-6strings/min. |
| Hot melt application system | Nordson (the USA) or Robatech ( Switzerland) |
| Capacity of glue tank | 7kg |
| Gluing method | Continuous gluing mode/interrupted gluing mode |
| Operation and application | Feed the pocket spring strings manually |
| Control of assembling platform | Electronic control |
| Possibility of assembling zoned tape | Possible |
| Possibility of assembling zoning mattress | Possible |
| Air consumption | 0.1m³/min. |
| Air pressure | 0.6-0.7 mpa |
| Power consumption in total | 6.5KW |
| Voltage | 3AC 380V |
| Frequency | 50/60 Hz |
| Working temperature | 5ºC--45ºC |
Cable section
| 3*6mm2+2*4mm2 |
| Weight | 2600Kg |
| Non-woven fabric | |
| Fabric density | 65~80g/m2 |
| Fabric width | 450-2200mm |
| Inner dia. of fabric roll | Min.60mm |
| Outer dia. of fabric roll | Max.600mm |
| Hot melt glue |
| Shape | pellet or pieces |
| Viscosity | 125ºC---6100cps |
| 150ºC---2300cps |
| 175ºC---1100cps |
| Softening point | 85±5ºC |
| Working range(mm) |
| | Spring Waist Diameter | Pocket Spring Height |
| Option-01 | Φ45-75 | 100-300 |
| Option-02 | Φ30-75 | 65-200 |
