E6250f 25ton Medium Size Hydraulic Compact Crawler Mining Excavator for Sale

Product Description

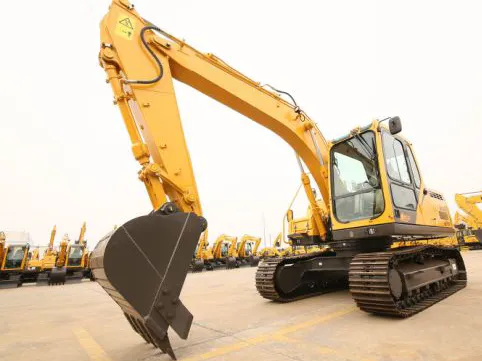

E6250f 25ton Medium Size Hydraulic Compact Crawler Mining Excavator for Sale

Product Description

E6250F is a core product that is developed by after fully researching the Chinese market. It features a high-strength chassis, heavy-duty working units, and an optimized matching hydraulic system and is suitable for tough conditions.
Product Parameters

Overall width of upper assembly	2890mm
Overall width	3190mm
Overall height	3040mm
Tail swing radius	2940mm
Overall height of engine hood	2370mm
Ground clearance of counterweight	470mm
Wheelbase	3850mm
Crawler length	4650mm
Crawler gauge	2590mm
Crawler pad width	600mm
Min. ground clearance	470mm
Overall length	10205mm
Overall height of boom	3430mm
Overall parameters
Bucket capacity	1.2m³
Overall operating weight	24400kg
Max. excavation force	176KN
Slew speed	11.3r/min
Traveling speed (low/high)	3.3/5.5km/h
Average ground pressure	48.5kPa
Max. digging radius	10260mm
Max. digging depth	6980mm
Max. digging height	9690mm
Max. dumping height	6800mm
Min. front slewing radius	3890mm
Engine
Model	SD70B
Type	Four-stroke,inter-cooled, supercharged
Rated Power@Revolution Speed	138kW
Displacement	7146mL
Cylinder bore × stroke	108*130mm
Emission standard	GB20891-2014 China Phase III
Rated fuel consumption	206g/kw.h
Max. torque	870N.m
Traveling/swing system
Qty. of carrier rollers (single side)	2
Qty. of track rollers (single side)	9
Traveling brake type	Wet disc brake
Swing mode	Hydraulic drive internal tooth single-row ball-bearing
Swing brake type	Wet disc brake
Hydraulic system
Hydraulic control type	Pilot proportional control valve
Hydraulic system type	Dual pump constant power negative flow control system
Max. flow	2*240+18L/min
Operating pressure	330kgf/cm2
Fill capacity
Fuel	380L
Engine oil	32L
Hydraulic oil	330L
