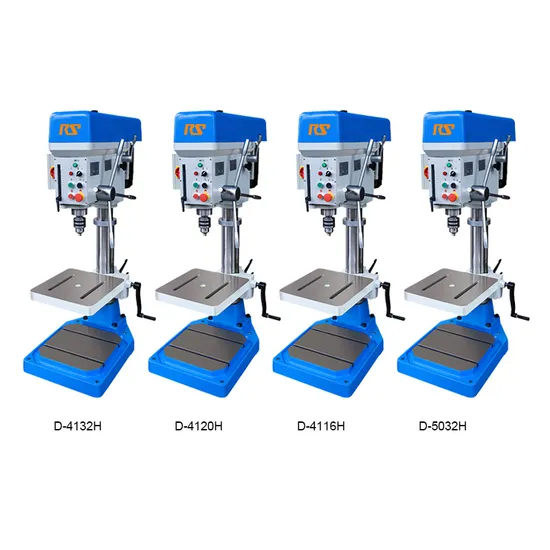

up Down Worktable 32mm Capacity Strong Vertiacl Drilling Machine

Product Description

Product Features
. Driling and Tapping
. Attractive and well placement design
. Solid structure, high rigidity
. Work table can turn 360°
. Long spindle travel
. Wide machining range
Product Parameter

Model	D-4132H	D-4120H/D-4116H	D-5032H/D-5032HP	D-4006H
Max.Drilling Capacity (mm)	31.75	20/16	31.75	6
Max.Tapping Capacity (mm)	M20(steel)	M20(cast iron)/M16(steel) M12(cast iron)/M10(steel)	M20(steel)	/
Distance spindle axis to column genetating line (mm)	265	240/193	265	140
Spindle travel (mm)	150	135/100	150	65
Max.Distance spindle nose to table (mm)	390	365/330	820	/
Max.Distance spindle nose to base (mm)	745	675/610	1235	215
Diameter of column (mm)	100	85/70	100	55
Spindle speeds range (r/min)	320-1820	340-2180/320-2730	320-1820	2000-12000
Spindle taper	MT3	MT2	MT3	B10
Dimension of worktable surface (mm)	380*400	300*320/265*285	380*400/330*330	/
Motor (kw)	1.5(6P)	1.1(6P)/0.75(4P)	1.5(6P)	0.37(2P)
Net weight (kg)	225	170/145	310	55
Packing dimension (mm)	1040*640*1510	990*560*1400/850*540*1280	1040*640*2050	640*350*580

FAQ
1.What models do you have?
There are many types of drilling machines, and we can recommend them according to your needs.
The best-selling series is Bench Drilling Machine and Bench Auto Feed Drilling Machine.
2.Do you have CE certification?
Yes, we have CE . The quality of the machine is guaranteed.
3.Can you accept OEM orders?
Of course, we can accept OEM with your trademark printed on the machine and pack it according to your design.
4.What products does your company provide?
Main products is riveting machine,tapping machine,drilling machine,self-clinching fasteners and so on.

---
