German 5 Axis 6 Axis Slant Bed Type CNC Lathe

Product Description

German 5 axis 6 axis Slant Bed Type CNC Lathe

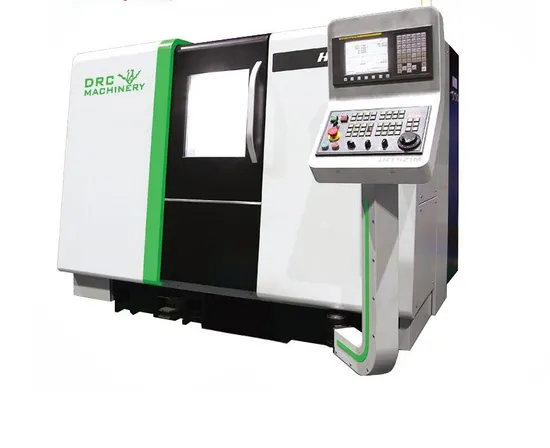

Machine Description HT5MY CNC lathe is a four-axis linkage, fully closed-loop CNC machine tool. The machine machine-electric-hydraulic integrated layout adopts a fully enclosed protective cover, the door opens to the left, and the operating table is located on the right end of the fixed protective cover, and the ergonomic swing design makes the operation more convenient. Each servo feed shaft adopts high-speed silent ball screw, elastic coupling is directly connected, fast moving speed, low noise, high positioning accuracy and repeated positioning accuracy; the servo motor is equipped with an absolute value encoder, no cumulative error, no memory, No need to find a reference point, the position information will not be lost after the power is cut off. The machine tool has strong functions, high precision, reasonable layout, beautiful appearance, easy operation and convenient maintenance.
iHT series lathe Product Application The IHT series has an excellent rigid structure and a modern control system. IHT has an excellent price/performance ratio, a user-friendly design and a rich configuration. The series uses a self-developed spindle structure to achieve better performance. The fuselage structure is optimized for integration, high rigidity, high efficiency, and high cutting capacity.
Tuning lathe machine with FANUC control system, Included Standard Equipment and Standard Control System Functions. Integrally molded low center of gravity casting bed, 30 ° saddle through optimized design, It has a large shock damping and a smaller amount of deformation, the main axle box, turret. Providing high-rigidity structure basis. 30 ° slant bed design to facilitate the operator upper and lower parts, but also to ensure. Smooth chip evacuation.
iHT series cnc lathe Main Features Compact design, HT300 grade gray cast iron bed
Best of proximity and operating depth
Ideal tool for training, covers an area of only 3.5m2, spindle operating depth of only 350mm
Achieve higher productivity by up to 12 driven tools (optional)
The latest CNC technology: FANUC 0i-TF produced the latest operating system with 10.4 "control panel (optional) or
SIEMENS 828D CNC system (840D optional)
Using self-developed spindle structure
Achieve better performance
iHT 516 / iHT 521 / iHT 1025
cnc turning milling machining center
iHT series lathe of technology
By rail HT300 is equipped with four solid material gray cast iron bed to achieve
Maximum stability and perfect machining results
In the process, the Φ32 mm by 360mm and a ball screw drive
Widely spaced rails for maximum stability
(IHT 1025: 400mm and Φ40 mm)
The maximum internal diameter of up to 100mm spindle bearings
(IHT 1025 as a Φ140 mm), and an optional linear encoders, these ligands
Set so that the aircraft has the highest accuracy and stability
12 tool turret VDI 30 or VDI 40 (BMT optional), standard hydraulic control
System tailstock
Standard hollow hydraulic clamping system (solid optional)
Mobile center frame (optional) and servo-driven tailstock (optional)

Technical date
Spindle head	Type	FL 140 h5
Spindle maximum speed	rpm	5000
Max. Torque	N×m	112
Spindle power	kW	7.5-11 / (11)
Chuck diameter	mm	210
Spindle bore	mm	74
Front bearing diameter	mm	100
Spindle bearing lubrication	Type	Grease
Linear motion lubrication	Type	Oil
Speed range	rpm	1-5000
Working are
Center distance	mm	674
Maximum swing over bed	mm	500
Maximum cutting diameter	mm	390
Maximum swing over cross slide	mm	240
Suggest cutting diameter	mm	200
Maximum bar capacity	mm	51(65)
Travel Z/X	mm	525/225
Ball screw
X/Z axis ballscrew DxP	mm	32 x 10
Feed
Rapid traverse Z/X	m/min	30/30
Feed force
Feed force X/Z	N m	4500
Number of axies		2
Measuring system
X/Z axis measuring system		Absolute rotative
(X / Z);VDI/DGQ 3441 Positioning	mm	0.008/0.010
(X/ Z);VDI/DGQ 3441 Repeatability	mm	0.004/0.005
Tailstock (option)
Stroke	mm	312
Tailstock moving	Hydraulic	CNC
Pressure	N	4000
Centre location	Type	MK 4
Tool attachments
Electric turret	Type	PRAGATI BTP-100
No. of tool stations Driven tools	-	12
Tool attachment	-	Trench cutter
OD tool size	mm	25
Electrical specifications
Voltage	V	380 ±10%
Frequency	Hz	50 ± 1%
Max. installed power	KVA	20
400v lie protection fuses	A	50
400v line automatic circuit breaker	A	33
Connection cables section	mm2	4 x 10
Hydraulic unit
Max. working pressure	bar	55
Reservoir capacity	l	30
Pump flow	I/ min	24
Oil-based coolant system
Capacity with tank	l	120
Pump delivery	l /min	30
Pump pressure	bar	5
Noise level
Less than	dB (A)	≤80
Control system
FAUNC		0iTF
Net weight	kg	3200
Slant angle, Material	°	30°, HT300

---
