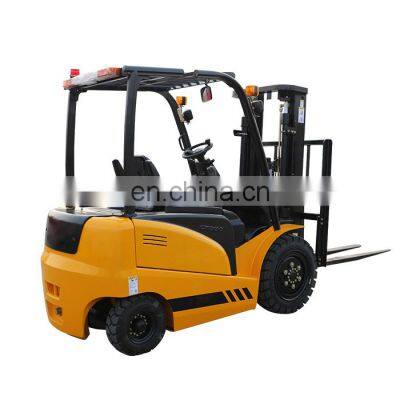

CE standard electric forklift Chinese good quality 3ton four wheels small electric forklift price
Integrated central control box the reliability of electric system
Ergonomical design ensures best operation
Energy-saving hydraulic system decreases fuel consumption
High-quality hydraulic hoses, no oil leakage
Wide-view mast design improves the productivity and safety
Model
| CPD30
|
Operation type
| Drive in seat
|
Load capacity
| 3000KG
|
Load center
| 500mm
|
Weight with battery
| 4950kg
|
Tire Type,Driving wheel/Load wheel
| Pneumatic Trie
|
Main Information
|
|
|
|
1.1
| Brand
|
| WMTCNC
|
1.2
| Model
|
| CPD30
|
1.4
| Operation type
|
| Drive in seat
|
1.5
| Load capacity
| kg
| 3000
|
1.6
| Load center
| mm
| 500
|
2.1
| Weight with battery
| kg
| 4950
|
Tire,chassis
|
|
|
|
3.1
| Tire Type,Driving wheel/Load wheel
|
|
|
Size
|
|
|
|
4.1
| Mast tilt,Forward/backward
| α/β（°）
| 6/12
|
4.2
| Mast height after mast fall
| mm
| 2025
|
4.3
| Free lift height
| mm
| 150
|
4.4
| Standard Mast height
| mm
| 3000
|
4.7
| Overhead guard height
| mm
| 2092
|
4.8
| Overall length
| mm
| 2507
|
4.9
| Vehicle width
| mm
| 1220
|
4.1
| Fork size
| mm
| 1070*122*45
|
4.12
| Channel width
| mm
| 4105
|
4.13
| Turning radius
| mm
| 2360
|
Performance
|
|
|
|
5.1
| Walking speed,loaded/withoutload
| km/h
| 14/15
|
5.2
| lifting speed,loaded/load
| m/s
| 300/400
|
5.3
| Dropping speed loaded/without load
| m/s
| 390/260
|
5.6
| Maximum traction,loaded
| N
| 20000
|
5.8
| Max grade ability,loaded/without load
| %
| 14/15
|
Drive
|
|
|
|
6.1
| Drive motor power
| kw
| 16.6
|
6.2
| Drive motor power
| kw
| 13.5
|
6.4
| Level voltage/Capacitance
| V/Ah
| 80/500
|
Others
|
|
|
|
7.1
| Drive System
| AC
|
|
7.2
| Electrical control system
| Curtis from America
|
|
Electric Warehouse Forklift detail:
As a professional manufacturer of forklift, we also can offer you customized service,
The following items are optional:
Container mast, for example, 2-stage full free mast of 3m, 3-stage full free mast of 4.5m/ 4.8m
Side shifter, fork positioner, longer forks, fork extension
For the details of customized configurations and options, please contact with us.
WMT CNC professional service will be impressed on you.
Detailed Images
WMT CNC Forklift is widely used in the warehouse ,mini enterprise port, wharf, industrial, station, and others.
The quality of our Vmax forklift has been recognized by our customers from all over the World
Main part
Name:Lead acid batteryBrand:Torch
Original:China Shangdong
1500times full charging low main tenance,short time charing,etc...
Main part
Name:TransmissionBrand:Zheng cung
Original:China
China top prefessional transmissiun,precise,
gear and long life usage
Main Part:Name:Operation type
Easy opreating steering wheel,fast electronic shift,convenien handel,micro brake& foot brake with hydraulic pedal etc.
Main Features:
Name:Wide view mastBrand:WMTCNC
Original:China
sTRONG U-STEEL,lifting cylinder chain,dearing,etc
