Basic Info.
Automatic Grade
Automatic
Name
Rubber Vulcanizing Press
Color
as Customers′ Requirements
Working Layers
1, 2, 4, as Customers′ Requirements
Man Power
1 Person for 1 Set of Rubber Vulcanizing Press
Outline Dimension
2920X1300X3880
Delivery Time
Within 30 Working Days After Receiving The Deposit
Transport Package
Standard Export Packing
Specification
weight: about 5200kgs
Production Capacity
50 Sets Per Month
Packaging & Delivery
Package Size
100.00cm * 100.00cm * 100.00cm
Package Gross Weight
4000.000kg
Product Description

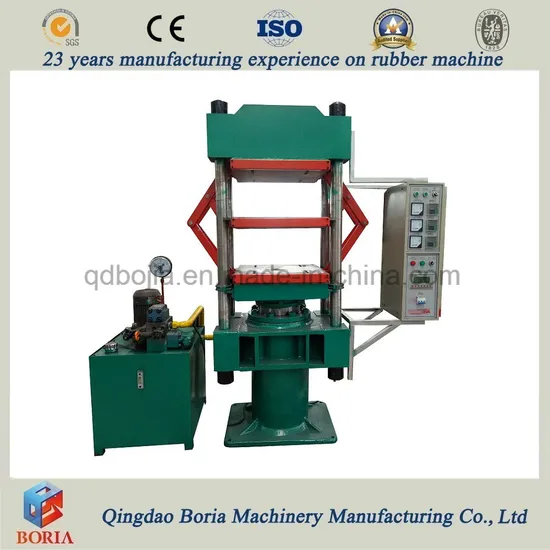

Heating Platen Hydraulic Vulcanizing Press Machine
I. Features of rubber plate vulcanizing press
1. Fame structure
2.This press with PLC control, high production efficiency.
3. The presses heating method with steam heating or electrical heating we can as our clients required to design.
4. Press with automatic warning device, high safety and convenient.
5. The machines used for rubber vulcanization are known as rubber vulcanizing machines.
6. This rubber vulcanizing machine strengthens raw rubber by chemically treating it and make rubber harder and stronger.
This vulcanization machine is extremely useful for testing strength of rubber and find applications in numerous industries.
II. Technical parameter
Parameter \ Type | XLB240× 240×2 | XLB350× 350×2 | XLB400× 400×2 | XLB500× 500×2 | XLB600× 600×2/4 | XLB700 ×700×2 | XLB750 ×850×2/4 | XLB900 ×900×2Q |
| Total Pressure (MN) | 0.15 | 0.25 | 0.5 | 0.63 | 1.00 | 1.20 | 1.60 | 2.00 |
| Plate Distance (mm) | 125 | 125 | 125 | 125 | 125 | 125 | 200 | 300 |
| Working Layer NO. | 2 | 2 | 2 | 2 | 2-4 | 2 | 2-4 | 2 |
Unit Area Pressure of Hot Plate(Mpa) | 2.60 | 2.04 | 3.13 | 2.52 | 2.77 | 2.45 | 2.51 | 2.47 |
| Plunger Stroke (mm) | 250 | 250 | 250 | 250 | 250/400 | 250 | 400 | 400 |
| Heating Mode | Electricity | Electricity | Electricity/ Stream | Electricity/ Stream | Electricity/ Stream | Stream | Electricity/ Stream | Stream |
| Motor Power (KW) | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 3 | 5.5 |
| Size:(L×W×H)(mm) | 1200×350 ×1300 | 1400×480 ×1380 | 1600×500 ×1480 | 1750×600 ×1540 | 1880×720 ×1680 | 2000×850 ×1750 | 2250×1200 ×2200 | 1400×900 ×2400 (Mainframe) |
Detailed Photos
III. Our machine list
Our company professional manufacture rubber vulcanizing press (frame type,four column type,lab press and so on), rubber mixing mill, batch off cooler, rubber extruder, rubber strip making machine and tire recycling equipment.
IV. Our service
1. Test running: The above machines are all passed inspection of 3~5 hours of full load operation before leaving our factory. And we will take the video and send it to you for inspection. You can use it directly thus saving the time of test-run and expense. And we also warmly welcome to our factory to inspect and test running.
2.Warranty: 12 months after installation, if our machines have any problems, please feel free to contact me. We will solve it for you as soon as possible, and give you the best services.
>>
