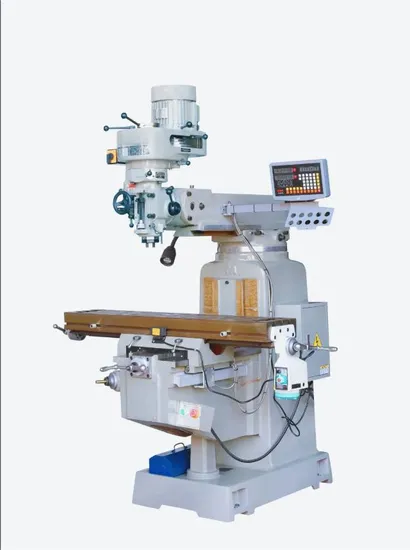

4m Lifting Table Vertical Milling Machine with R8 Spindle Universal

Product Description

Introducing the 4s Vertical Lifting Table Milling Machine – a remarkable Metal Milling Machine crafted in Taiwan, known for its precision and durability. This machine redefines excellence in metal milling with unparalleled performance.
Product Description
Mechanical characteristicCrafted from Meehanna cast iron, our casting boasts remarkable rigidity, ensuring no deformation and unmatched stability, making it the backbone of any milling operation.The spindle is equipped with a sophisticated precision bearing combination, delivering formidable cutting force and impeccable accuracy for superior performance.Our end milling head features an innovative inverted hanging design, offering precision, effortless operation, and easy braking. Tailor your machine with special function products to meet your specific needs.The three-axis screw incorporates advanced phosphorus meter copper nuts, ensuring excellent wear resistance and an impressively long service life.Following high-frequency ripening treatment, the XY shaft slide exhibits outstanding tail wear resistance, significantly enhancing service life and ensuring enduring reliability.A state-of-the-art lubrication system ensures that every slide operates with seamless fluidity, enhancing overall machine performance.
Product Parameters
1.Milling Machine Rotation Speed
The rotation speed of our milling machine is a crucial factor influencing processing efficiency and cutting force magnitude. Generally, higher rotation speeds translate to stronger cutting abilities, improved surface quality, and reduced residual stress.
Milling Machine Cutting Speed Cutting speed is pivotal for both processing speed and quality. Optimal speed is determined by factors like material hardness and milling cutter type. An incorrect speed can lead to subpar results, so it’s essential to tailor it to the task. Milling Machine Processing Accuracy Processing accuracy is a key performance metric that affects machining and part quality. Factors like cutting force, tool and machine rigidity, and clamping precision all play significant roles in ensuring high machining accuracy. Milling Machine Precision Stability Precision stability ensures accuracy during operation. Factors such as machine tool initial error, thermal deformation, and tool wear can impact it, potentially leading to machining errors and affecting part quality.

Product Name
Product Name	Milling machine
Product model	4S
Product technical parameters
dimension	Table size	1270*254MM
journey	Left and right stroke(X)	720MM
	Front and rear stroke(Y)	380MM
	Up and down stroke(Z)	320MM
	Arm reach	520MM
	Distance from spindle end face to table surface	50-490MM
Principal axis coefficient	Spindle taper	R8
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	3HP
Milling head	Milling head tilt Angle	180° around / 45° front and back
Machine profile dimensions	T-slot (Number * Size * Spacing)	3-15.88*65MM
	Machine size (L * W * H)(MM)	1750*1700*2200MM
	Approximate machine weight	1280kgs
The configuration is as follows	Accessories name and specification	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1
Special parts for machine tools	7,Two axis electronic ruler	1
	8, X-axis automatic feed	1
	9, 6 "flat pliers	1
	Clamp plate	1
	11, chuck	1

Detailed Photos
Packaging & Shipping
Professional Team
FAQ
1. What are the Payment Terms?
A: We accept T/T payments, requiring a 40% initial deposit upon ordering and the remaining 60% balance to be paid before shipment. This payment structure ensures a smooth transaction and timely processing of your order.
2. What are your trade terms?
A: We offer flexible trade terms including FOB, CFR, and CIF, giving you the freedom to choose the option that best suits your logistical needs and preferences.
3. When is the delivery time?
A: For our standard Vertical CNC Drilling Machine Center, we guarantee delivery within 30 days. For custom or specialized machines, additional time may be required. Please align your order placement with our provided delivery schedule to ensure timely receipt.
4. What is your minimum order quantity and warranty?
A: Our minimum order quantity is one set, ensuring accessibility for all customers. We also offer a comprehensive one-year warranty, reflecting our commitment to quality and customer satisfaction.
5. How are the machines packaged?
A: Each machine is meticulously packed in a robust wooden case, guaranteeing it arrives in pristine condition, ready for immediate use upon receipt.
6. How can I choose the most suitable machines?
A: Provide us with your specific requirements, and we will recommend the most suitable model tailored to your needs. Alternatively, you may select your desired model directly from our extensive range of options.
Alternatively, you can send us your product drawings, and we will identify the ideal machine configuration for your specific applications, ensuring optimal performance and efficiency.

---
