High-Precision Bead Mill for Nano Grinding of Paints, Pigments, Pesticides, and Battery Components

Product Description

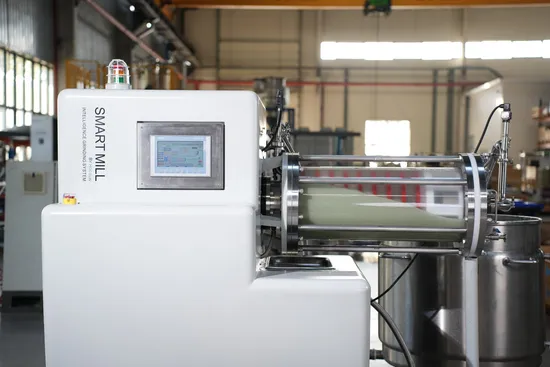

Product Description: Introducing the Hoosun Precision SMD (Smart Mill Disc Style) Nano Grinding Bead Mill, an advanced solution designed for high-precision grinding and milling of paints, pigments, pesticides, batteries, dyes, and inks. Specifically engineered for processing micron and nano materials, this bead mill ensures the highest standards of accuracy and efficiency in your production processes. The Hoosun Precision SMD guarantees consistent and reliable results, meeting the most stringent quality requirements.
Performance Advantages: High Precision Grinding:
Our mill features advanced grinding technology that delivers a uniform and smooth surface finish, which is critical for the performance and reliability of SMD components. Automated Process Control:
The integrated automated control system greatly simplifies operation and reduces the potential for errors, ensuring high accuracy and stability in the production process. Customizable Settings:
Users can easily adjust grinding parameters such as pressure, speed, and duration to meet various material requirements. This allows the mill to be tailored to the specific needs of each client. Durable Construction:
Constructed from high-quality materials, our mill ensures longevity and resistance to wear, providing reliable operation even in the most demanding production environments. User-Friendly Interface:
The intuitive control panel enables operators to manage the machine with ease, reducing the learning curve and enhancing productivity. The user-friendly interface facilitates quick mastery and efficient operation. High Productivity:
With a production capacity ranging from 200 to 3000 liters per hour, our mill offers high efficiency and throughput, making it an ideal choice for large-scale manufacturing. Technical Specifications: Fineness: 1-50 µm Zirconia Bead Diameter: 0.1-0.4 mm Separation System: Sieve Separation Optional Materials: Tungsten Carbide, Polyurethane, Zirconia, Silicon Carbide, Silicon Nitride Efficiency Highlights: High throughput, energy efficiency, consistent particle size distribution Applications: Paints Pigments Pesticides Batteries Dyes Inks Nano New Materials MLCC (Multilayer Ceramic Capacitors) Lithium Batteries Silicon Carbon Cathode Electrodes Alumina Ceramic Inks Why Choose Hoosun? Superior Precision and Control:
Achieve the highest levels of precision and control in your grinding and milling processes with our advanced technology. Customizable and Versatile:
Easily adapt the mill to a wide range of materials and requirements, ensuring it meets your specific production needs. Durability and Reliability:
Built with high-quality materials for long-lasting performance, even under the most demanding conditions. User-Friendly Design:
Simplified operation with an intuitive control panel, allowing for quick learning and efficient management. High Efficiency:
Maximize your production capacity with high throughput and energy-efficient operation. Proven Performance:
Trust in the proven reliability and performance of Hoosun's precision engineering, backed by extensive industry experience. Technical Parameter

Model	Chamber	Rev.	Motor Power	Bead Dia.	Bead Rate	Batch Capacity
SMD10	10L	0-15m/s	13.5/15KW	0.2 - 2.0mm	80 - 85%	50 - 250L
SMD25	25L	0-15m/s	18.5/22KW	0.2 - 2.0mm	80 - 85%	100 - 700L
SMD50	50L	0-15m/s	45KW	0.2 - 2.0mm	80 - 85%	200 - 1500L
SMD100	100L	0-15m/s	55/75KW	0.2 - 2.0mm	80 - 85%	<2500L
SMD150	150L	0-15m/s	75KW	0.2 - 2.0mm	80 - 85%	500 - 3500L
SMD200	200L	0-15m/s	75/90KW	0.2 - 2.0mm	80 - 85%	1000 - 5000L
SMD300	300L	0-15m/s	90/110KW	0.2 - 2.0mm	80 - 85%	>7500L
SMD600	600L	0-15m/s	250KW	0.2 - 2.0mm	80 - 85%	>10000L
SMD1200	1200L	0-15m/s	355/450KW	0.2 - 2.0mm	80 - 85%	>20000L
