Product Details
Product Description
Product Description

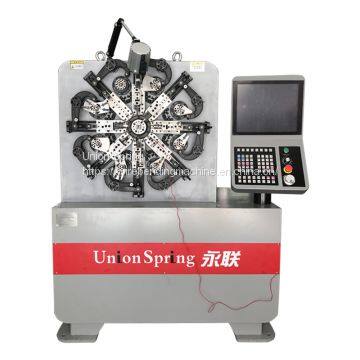

Machine description:
1. The machine adopts computer control system imported from Taiwan and servo motor imported from Japan.
2. The four axis of the machine are cam axis, wire feeding axis, rotary quill axis, and spinner axis(optional accessory). The four axis can be operated synchronously.
3. The position of each axis, the length of the wire feed, the production speed, and the number of production can be displayed on the screen. According to the working conditions on the display, the outer diameter and angle of the product can be modified at any time. It is equipped with precision detection and tracking equipment, which can automatically stop the machine if there are unqualified products.
4, The machine is suitable for the production of double torsion springs, straight springs, tower springs, tension springs, rectangular springs, vortex springs and various fancy springs and shaped springs.
Specification:
Model
| US-20
| US-35
|
Axis
| 3/4
| 3/4
|
Wire Diameter
| 0.3-2.5mm
| 0.8-4.0mm
|
Wire Wheel Sets
| 2Sets
| 3Sets
|
Cam Axis
| 2.7KW
| 5.5KW
|
Wire Feeding Axis
| 2.7KW
| 5.5KW
|
Rotary Quill Axis
| 1KW
| 1KW
|
Spinner Axis
| 0.4KW
| 1KW
|
Machine Size
| 1350*750*1650mm3
| 1550*850*1850mm3
|
Machine Weight
| 850kg
| 1800kg
|
Sample
Appearance Design Certificate
Our Service
1.Professional and patient consulting service to help clients find the suitable solution.
2.Provide the technical details, machine configuration, price basis, payment term and delivery time.
3.Powerful control of the machine production schedule and quality, and Update posted about details in time.
4.Free training, photos and video of the machine and package for your confirmation before shipment.
5.For technical support, we can help you online, we can send technicians to your factory if necessary.
Shipping
FAQ
1. Q: How about the after service?
A: We have a strong team, special for after service. We can arrange engineers to do service for you.
2. Q: Are you factory or trading company?
A: We are a factory in this field nearly 20 years
3. Q: Where is your factory located? How can I visit there?
A:Our factory is located in Shenzhen City. Guangdong province. When you arrive Shenzhen you can contact me,I will pick you up .
4. Q:How does your factory do regarding quality control?
A:Quality is priority. From material selection to machine completion, we will spend a lot of time to strictly monitor the operation of the machine. If the machine does not meet the quality we require, we will not ship it.
>>
