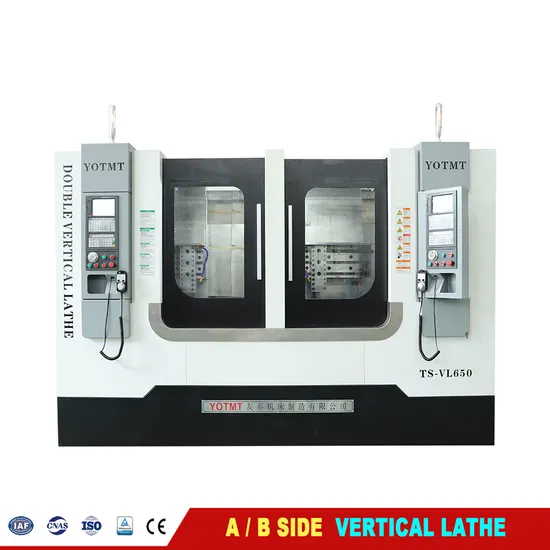

2-in-1 Twins Lathe Vertical CNC Lathe Machine with Double Spindle CNC Controller

Product Description

high-end supplier from China
2-in-1 twins lathe vertical cnc lathe machine with double spindle
Product Description

parallel vertical CNC lathe with twin-spindle dual-system advantages and features:
- It can perform various automatic systems, such as front-back synchronous machining, left-right synchronous machining, and multi-process automatic machining, achieving great integration of processes.
- It can perform turning and milling hybrid operations, achieving composite machining functions.
- It adopts a high-rigidity structure design, reduces cutting resonance, improves cutting reliability, roundness and surface roughness.
- It adopts a high-speed and high-precision turret tool change system, shortens tool change time, and improves machining efficiency.
- It adopts a parallel vertical twin-spindle structure, which can effectively reduce the turret interference and meet the precision cutting requirements of various large-size disc-type workpieces.
The specific application for twins vertical lathe CNC:
- Automatic batch production of various disc-type, short-axis-type workpieces.
- Precision machining of various parts such as hubs, gears, bearings, etc..
- Composite machining of various complex-shaped parts
Product Parameters
| ARGUMENT

ITEM	UNIT	TS-VTL550	TS-VTL750
MAX. SWING DIAMETER	MM	470	600
MAX. TURNING DIAMETER	MM	400	500
SPINDLE SPEED	RPM	1000/2000	1000/2000
X/Z AXIS STROKE	MM	220/760	340/780
X/Z AXIS FAST MOVE SPEED	MM	24000
REPEAT POSITIONING ACCURACY	MM	0.005/0.008
ACCURACY POSITIONING	MM	0.008/0.01
SPINDLE MODEL		A2-6, A2-8,A2-11
SPINDLE POWER	KW	15	18.5
CHUCK SIZE	10INCH	10	18/21
CHUCK TYPE		hydraulic
TOOLING TYPE		SERVO TURRET / ROW TYPE/SPECIAL TOOL
PROCESS ACCURACY		IT5-IT6	IT5-IT6

Detailed Photos
| DETAIL PRESENTATION

STRUCTURAL DESIGN

THREE- JAW CENTERING CHUCK

Using servo turret/tailstock, the left and right sides of the HIWIN linear guide use independent control systems. Firm clamping, high-pressure chip punching, equipped with chain-type chip removal system, excellent chip removal performance.

FULLY STAINLESS STEEL INTERIOR PROTECTION

Large torque, large chip margin of about 7mm on average according to different materials, high-efficiency processing while ensuring accuracy and stability.

THICK AND WIDENED LINEAR RAIL SCREW

Heavy-duty host structure design, precision bearings, and ultra-high rigidity ensure stable precision.


CNC SYSTEM OPTIONAL
Tight stainless steel internal protection, 45-degree tilted base chip removal design, and high-pressure chip punching ensure a comfortable use experience.

High-rigidity heavy-duty structure, large cutting volume processing,robot automation adaptation,
vertical lathe cnc series,
focusing on buil ding strong stability, rigorous structural design and material usage.







Certifications
| CERTIFICATES & ACTIVITIES


Recognized as China's leading manufacturer of CNC machine tools for double-sided processing,
backed by hundreds of technical patents, specializing in drilling, milling, and turning shaft parts with exceptional precision.
Our high-quality positioning machine tool products are highly esteemed by users in developed countries worldwide.
Company Profile


|ABOUT FACTORY
Shandong Youtai Machine Tool Manufacturing Co., Ltd. is proudly situated in Tengzhou City, a hub famously known as the "Capital of Small and Medium-sized CNC Machine Tools in China." This historically rich city is home to renowned figures such as philosopher Mozi and craftsman Lu Ban. Nestled near the cultural site of Confucius' three holes, our location is a beacon of cultural heritage and a modern sanctuary for metalworking excellence, significantly contributing to the global machinery manufacturing industry.
Since our inception in 2011, Shandong Youtai Machine Tool has been at the forefront of innovation in efficient machining equipment for shaft parts. As a technology-driven enterprise, we focus on crafting high-end CNC machine tools and specialized machines for diverse industries. Spanning over 50 acres, our facilities include over 30,000 square meters of cutting-edge workshops and offices. We boast sophisticated precision machines like gantry machining centers and CNC guide rail grinders, paired with high-precision measuring equipment, ensuring superior product quality.
Our team comprises over 100 dedicated professionals, including more than 30 skilled technical experts and an equal number of engineering specialists. We engage in profound collaborations with over ten custom part enterprises. Through our independent R&D efforts, we have developed an array of machines, including milling end face drilling center hole tools, double-side lathes, and twin-head horizontal machining centers designed for cylinder barrels. Our portfolio spans more than twenty series and over fifty distinct products, successfully exported to developed nations across Europe and Asia, solidifying our reputation as a prestigious domestic brand in the industry.
