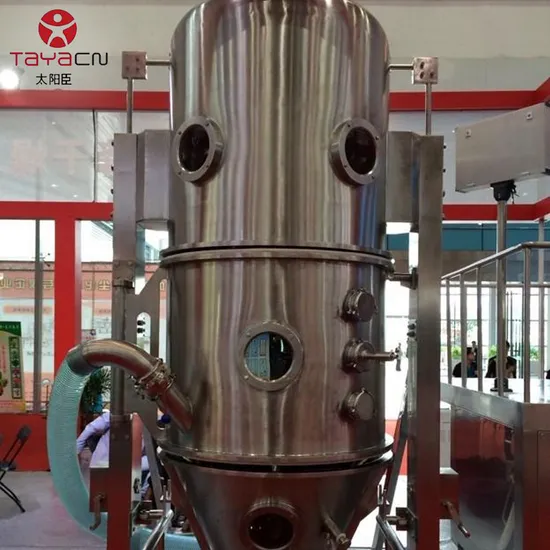

FL Series Fluid Bed Granulating Machine Fluidized Bed Granulator

Product Description

Work Principle: After purifying and heating the air in drafted by draft fan to the lower part of the drier then through the air distribution plate, making the materials powder fluidized in circular flow; Adhesive solution atomized by nozzles, the small droplet from the nozzle gathers a number of particles together as cumularspharolith. As the drying of the material, the cumularspharolith water evaporation and adhesive solution solidified. This process repeats, creating the ideal, even and porous spherical particles. Product Characteristics: 1. Through the powder granulation improves liquidity and reduces dust emissions. 2. Through the powder granulation improves their dissolving performance. 3. Mixing, granulation, drying processes accomplished once in the same equipment and improving the thermal efficiency. 4. Frequency Control device is used, Hopper used inflatable seal, sealed and reliable. 5. Excellent speed controlling performance, set up pressure relief hole, the safety of using. 6. No dead angle, material loading and unloading fast, easy cleaning, meeting GMP standards Material to be dried: 1. Medicine: Radix isatidis, Andrographolide, Allicin, Protease, Angelica, Compound Paracetamol and Amantadine Hydrochloride Capsules, Radix Astragali, Xantinol Nicotinate, Bezoar Tablet, Chlorphenamine Maleate Tablets, Qingxue-Bawei Capsule, Gentamicin, Cactus Wei Kang Capsules. 2. Food and feed additives: Glucosamine hydrochloride, Effect of Apramycin, TP, spectinomycin, aspartame, guitar adriamycin, Colistin of sulfuric acid, cellulose, xylanase, Metalor Streptozotocin, Thailand Miao streptozotocin, streptomycin, phytase.Technical Parameter:

Specification	FL-5	FL-15	FL-30	FL-45	FL-60	FL-90	FL-120	FL-150	FL-200	FL-300	FL-500
Volume(L)	22	45	100	155	220	300	420	530	660	1000	1500
Capacity(kg/per time)	4/6	10/20	15/45	25/65	40/80	60/120	80/160	90/200	100/300	150/450	300/300
Power of fan(kw)	3	4	5.5	7.5	11	15	18.5	18.5	22	30	37
Consume steam 0.4MPa(kg/h)	23	42	70	99	141	169	211	251	282	366	451
Consume compressed air m3/min	1.3	0.3	0.4	0.4	0.6	0.6	0.9	0.9	0.9	1.3	1.5
Noise,db(A)	(fan is installed separately)≤75
Overall dimension(m)	1.2x 0.6x2.1	1.25x 0.9x2.1	1.6x 0.9x2.3	1.65x 1.1x2.4	1.85x 1.25x3	1.85x 1.25x3	2.2x 1.65x3.1	2.27x 1.72x3.1	2.34x 1.9x3.5	2.8x 1.9x3.8	3x 2.55x4.2

Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year. Our company is near Shanghai.It only takes you about 1 hour to get to Changzhou. Or we can visit you in Shanghai.

Q: What's the quality of your products?
A: Parts of our products come with the best quality, We already exported to lots of countries around the world, such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely
Q: What to do if the machine has a problem?
A:24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
Q: How long is the warranty of your equipment?
A: Our warranty period is one year generally.

Q: What is your payment term
A: Our usual payment term is: 30% TT in advance, 70% TT before shipment. Other ways can also be received after both sides discuss and agree.

Q: Does your price include freight?
A: Our usual price is based on FOB Shanghai, if you request CIF, please give us your delivery port, and we will give you the CIF price.

---
