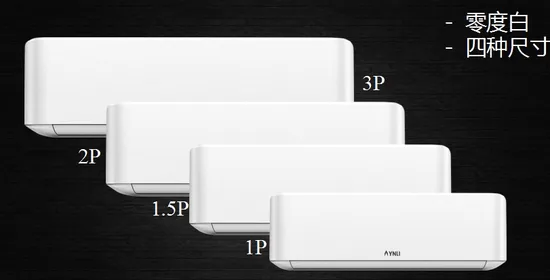

Home Appliances Residential on-off and Inverter R410A Split Air Conditioner

US$145.00
134-326 Sets
US$139.00
327+ Sets

Basic Info.

Model NO.
GSC-09C(H), 12k, 18k, 24k/A SERIES can be offered
Usage
Room
Indoor Machine Noise
24-35dB
Certification
CE, CCC
China Energy Efficiency Standard
Level 3
Cooling/Heating
Cooling/Heating
Power Source
Electrical
Power Type
AC
Condition
New
Design
Elegant and Attractive
Price
Competitive
Environment Friendly
Self Cleaning
Packing Choice
Foam and Pearl Cotton Packing for The Choice
Transport Package
Carton Box
Trademark
ARISA
Origin
Made in China
HS Code
8415102100
Production Capacity
4, 000, 000units Per Year

Product Description

Detailed Photos
Product Parameters
Reverse Cycle Fixed Speed Models Specifications
Model 7K 9k 12k 12k 18k 24k 30k
GSC-07HA GSC-09HA GSC-12HA/A GSC-12HA/B GSC-18HA GSC-24HA GSC-30HA
Type heating pump heating pump heating pump heating pump heating pump heating pump heating pump
Control type remote remote remote remote remote remote remote
Rated cooling capacity Btu/h;W 7000;2050 9000;2640 12000;3520 12000;3520 18000;5280 24000;7030 30000;8800
Rated heating capacity Btu/h;W 7500;2200 9500;2800 12500;3700 12500;3700 18500;5420 24500;7200 30500;8940
EER for cooling W/W 10.98;3.22 10.98;3.22 10.95;3.21 10.95;3.21 11.02;3.23 10.98;3.22 10.65;3.12
Class in Cooling A A A A A A A
COP for heating W/W 3.61 3.61 3.62 3.62 3.61 3.63 3.53
Class in Heating A A A A A A A
Moisture removal Liters/h 0.8 1 1.2 1.2 2 2.2 2.4
Pressure High(DP) MPa 4.5 4.5 4.5 4.5 4.5 4.5 4.5
Low(SP) MPa 1.9 1.9 1.9 1.9 1.9 1.9 1.9
Indoor noise level(S/H/M/L/Mute) dB(A) 35/33/29/27/25 35/33/29/27/25 43/40/37/33/31 43/40/37/33/31 43/40/38/37/37 43/43/38/37/37 51/46/41/37/37
Outdoor noise level dB(A) 50 50 52 52 55 55 62
Electrical Data
Power supply 220-240V~/50Hz/1P 220-240V~/50Hz/1P 220-240V~/50Hz/1P 220-240V~/50Hz/1P 220-240V~/50Hz/1P 220-240V~/50Hz/1P 220-240V~/50Hz/1P
Voltage Range V 198~264 198~264 198~264 198~264 198~264 198~264 198~264
Rated current Cooling A 2.95 3.8 5.1 5.1 7.6 10.1 13.1
Heating A 2.83 3.6 4.7 4.7 7 9.2 11.7
Rated input Cooling W 640 820 1100 1100 1640 2180 2820
Heating W 610 775 1020 1020 1500 1985 2530
Annual energy consumption(cooling) kwh 350 410 550 550 820 1090 1360
Max Current Cooling A 4.6 4.9 6.6 6.6 9.9 13.1 16.7
Heating A 4.6 4.9 6.6 6.6 9.1 12 15.3
Max Power input Cooling W 1000 1060 1430 1430 2130 2830 3660
Heating W 1000 1060 1430 1430 2130 2580 3300
Refrigerating&Fan System
Refrigerant/Charge kg R410A/0.380 R410A/0.420 R410A/0.630 R410A/0.630 R410A/0.930 R410A/1.300 R410A/1.600
Compressor Type ASN82V1UDZ ASN86V1UDZ ASM135V1VDZ ASM135V1VDZ PA190M2AS-4KUL1 ASH232MV-C7EU1 ATH345MV-C9EU
Model GMCC GMCC GMCC GMCC GMCC HIGHLY HIGHLY
Brand Rotary Rotary Rotary Rotary Rotary Rotary Rotary
Expansion device Capillary tube Capillary tube Capillary tube Capillary tube Capillary tube Capillary tube Capillary tube
Indoor air circulation(Cooling/Heating) m3/h 560 560 650 650 1100 1100 1500
Indoor fan motor type Cross flow Cross flow Cross flow Cross flow Cross flow Cross flow Cross flow
Output W 13 13 21 21 25 25 45
Capacitor uF 1.2 1.2 1.5 1.5 1.5 1.5 3
Indoor fan speed H/M/L Cooling rpm 1250\1150\1050\950\900 1250\1150\1050\950\900 1250\1150\1050\950\900 1250\1150\1050\950\900 1250\1150\1050\950\900 1250\1150\1050\950\900 1250\1150\1050\950\900
Heating rpm 1250\1150\1050\950\900 1250\1150\1050\950\900 1250\1150\1050\950\900 1250\1150\1050\950\900 1250\1150\1050\950\900 1250\1150\1050\950\900 1250\1150\1050\950\900
Dry rpm 900 900 900 900 900 900 900
Sleep rpm 900 900 900 900 900 900 900
Evaporator a.Number of rows 1 1 2 2 2 2 2
b.Fin spacing mm 1.3 1.3 1.4 1.4 1.4 1.4 1.4
c.Tube outside dia.and type mm Φ7,innergroove tube Φ7,innergroove tube Φ7,innergroove tube Φ7,innergroove tube Φ7,innergroove tube Φ7,innergroove tube Φ7,innergroove tube
Outdoor fan motor type Propeller fan Propeller fan Propeller fan Propeller fan Propeller fan Propeller fan Propeller fan
Output W 25 25 25 25 55 55 85
Capacitor uF 2.5 2.5 2.5 2.5 5 5 5
Speed r/min 860 860 860 860 850 850 840
Condenser a.Number of rows 1 1 1 1 1 2 2
b.Tube pitch(a)x row pitch(b) mm 25×22 25×22 25×22 25×22 25×22 25×22 25×22
c.Fin spacing mm 1.3-7U 1.3-8U 1.4-10U 1.4-10U 1.3-11U 1.4-22U 1.4-26U
d.Fin type Louver Fin Louver Fin Louver Fin Louver Fin Louver Fin Louver Fin Louver Fin
e.Tube outside dia.and type mm Φ7.94,innergroove tube Φ7.94,innergroove tube Φ7.94,innergroove tube Φ7.94,innergroove tube Φ7.94,innergroove tube Φ7.94,innergroove tube Φ7.94,innergroove tube
Connections
Connecting Pipe Gas mm Φ9(3/8'') Φ9(3/8'') Φ9(3/8'') Φ9(3/8'') Φ12(1/2'') Φ15.88(5/8'') Φ15.88(5/8'')
Liquid mm Φ6(1/4'') Φ6(1/4'') Φ6(1/4'') Φ6(1/4'') Φ6(1/4'') Φ6(1/4'') Φ9(3/8'')
Connecting Wiring Size x Core number 3×1.0;2×0.75 3×1.0;2×0.75 3×1.5;2×0.75 3×1.5;2×0.75 3×1.5;2×0.75 3×1.5;2×0.75 3×1.5;2×0.75
Others
Suitable area m2 10~15 15~20 15~23 15~23 25~35 30~40 30~40
Max. refrigerant pipe length m 15 15 15 15 15 15 15
Max. difference in level m 5 5 5 5 5 5 5
Operation temperature range ºC 16~31 16~31 16~31 16~31 16~31 16~31 31~50
Ambient temperature range Outdoor ºC Cooling:15-43/Heating:-7-24 Cooling:15-43/Heating:-7-24 Cooling:15-43/Heating:-7-24 Cooling:15-43/Heating:-7-24 Cooling:15-43/Heating:-7-24 Cooling:15-43/Heating:-7-24 Cooling:15-43/Heating:-7-24
Indoor ºC Cooling:17-32/Heating:0-27 Cooling:17-32/Heating:0-27 Cooling:17-32/Heating:0-27 Cooling:17-32/Heating:0-27 Cooling:17-32/Heating:0-27 Cooling:17-32/Heating:0-27 Cooling:17-32/Heating:0-27
Net dimensions
(W x D x H)		 Indoor mm 750*262*195 750*262*195 840*290*198 807*288*211 970*308*200 970*308*200 1072*318*210
Outdoor mm 630*236*500 630*236*500 730*280*550 730*280*550 790*372*598 790*372*598 890*396*700
Net weight Indoor kg 7.5 7.5 8.5 8.5 10.5 10.5 17
Outdoor kg 24 25 30 30 35 37 48
Packing dimensions
(W x D x H)		 Indoor mm 835*333*273 835*333*273 912*345*263 879*343*266 1035*378*278 1035*378*278 1035*378*278
Outdoor(w/i pipe) mm 760*348*525 760*348*525 847*371*602 847*371*602 941*412*663 941*412*663 1011*455*763
Gross weight Indoor kg 8.5 8.5 9.5 9.5 11.5 11.5 18
Outdoor(w/i pipe) kg 29 30 35 35 41 43 53
Loading Capacity w/i pipe 40'HQ 325 325 253 252 187 187 144
