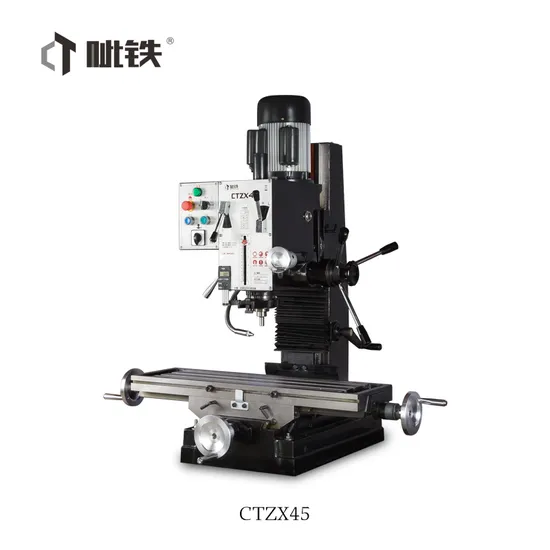

Drilling Milling Machine Ctzx45 Knee-Type Milling and Drilling Machine

US$1,730.00
1-4 Sets
US$1,661.00
5-9 Sets
US$1,592.00
10+ Sets

Basic Info.

Model NO.
CTZX45
Type
Tool Milling Machine
Object
Hardware
Structure
Desktop
Milling Cutter Type
Three Blade Milling Cutter
Milling Cutter Structure
Inlaid Tooth
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Standard Wooden Packing
Specification
845*910*1020mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
10000

Product Description

Max.Drilling capacity 45mm
Max.milling capacity 80mm
Max.vertical milling capacity 32mm
Max. tapping M16
Table size 800x240mm
X spindle travel 580mm
Y spindle travel 200mm
Spindle taper MT4
Spindle travel 130mm
Distance from spindle to column guide rail 260mm
Distance from spindle end to table surface 450mm
Spindle box left&right rotation angle ±45°
Spindle speed range 50HZ 80~1250PRM
Motor Power 1.5KW
Net weight/Gross weight 325KG/375KG
Overall dimensions 845x910x1020mm
Package Size 720x720x1050mm
