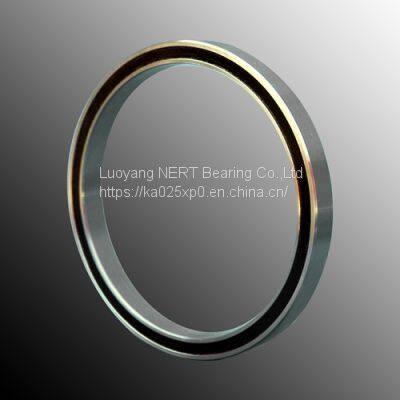

NERT brand Luoyang BOBI Thin Section Bearings are bearings with very small ring cross-section that can be used to save on design envelope and mass, as the name implies, the inside and outside diameters of the rings have been minimized. These thin section ball bearings are available as deep groove ball bearings, angular contact ball bearings, four point contact ball bearings and crossed roller bearing, and can be divided into different types according the working condition, such as open type bearings, shield type bearings, and sealed type bearings, they are also called slim ball bearings, thin type bearings, thin bearing, thin walled bearings.
Parameters:
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Sealed
Cross Section 1/2″ x 3/8″(12.7x12.7mm)
Part Number JU065CP0(NJU065CPO)
Bore Dia (d) 6.500"(165.1mm)
Bore Dia Tolerance -0.0010"– 0"
Outer Dia (D) 7.250"(184.15mm)
Outer Dia Tolerance -0.0010"– 0"
Width (B) 0.5"
Width Tolerance +.000 –.005"
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material Brass
Dynamic radial (lbs) 1397
Static radial (lbs) 3315
Lubrication Lubricated
Temperature Range -20° to 180 ℃
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
Weight (lbs) 0.870
ur Customer Bearings Show
We have R&D engineers who are able to meet your requirements of special design.
The Applications of NERT Bearings
Our BOBI precision thin section bearings are widely used in the following fields:
Medical Equipment, Rotary polishing equipment, X-ray – MRI, Rotary pipe cutting equipment, Rotary welding equipment, Semi-conductor equipment Rotary actuators, Rotary work holding tables, Aerospace - auxiliary equipment, Turrets, Gun turrets, Turntables, Indexing tables, Missile launchers, Machine tools, Lathe accessories, Radar equipment, Robotics, Radar drives, Antenna pedestals, Packaging equipment, Satellite antennas, Pedestals Labeling machines, Truck mounted communication equipment, Food processing equipment, Bottling equipment.
>>
