Mars Bd-2030A Stone CNC Engraving Machine/CNC Router Cutting Machine/Stone CNC Machine

US$8,500.00-28,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
BD-2030A
Function
Hollow out, Cutting, Line Engraving, Basso-relievo, Lettering
Application Material
Stone/Marble/Tile/Granite/Tombstone
Automation
Automatic
Control
CNC
Motor Power
High Power
Engraving Head Speed Adjustability
Wide Adjustable Range
Certification
CE, ISO, CCC
Current
AC
Application
Glass, Ceramics, Decoration, Advertising, Art & Craft, Stone Industry
Customized
Customized
Working Table
Aluminum T-Slot Table Protected with PVC
Cooling System
Water Cooling
Processing
2D Sculpture+3D Relief+Cutting+Chamfering+Drilling
Material
Milestones, Ceramic
Transport Package
Wrapped in Layers of Wrapping Film and Ponchos
Specification
2000*3000*200mm
Trademark
MARS or Boiro
Origin
China
HS Code
8464909000
Production Capacity
300 Sets/Month

Product Description

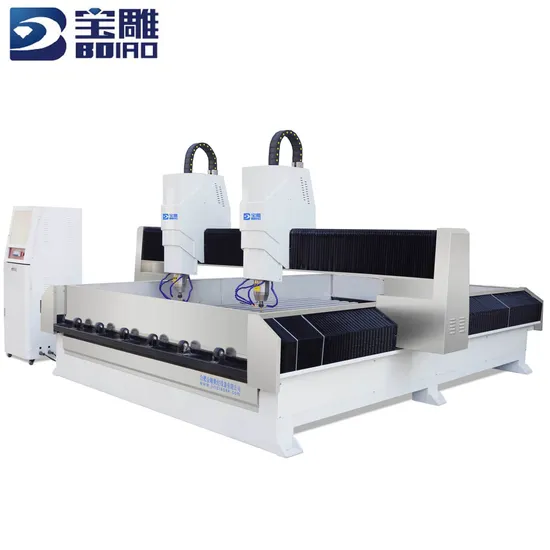

BD-2030A Stone CNC Engraving Router Cutting Machine
NO. performance index index parameters
1 stroke X stroke 2500mm
Y stroke 1300mm
Z stroke 200mm
2 Working Area 2500mm*1300mm*200mm
3 precision working accuracy ±0.05mm
Repeated positioning precision ±0.03mm
4 structure table structure Dustproof and waterproof structure
X,Y,Z structure X,Y gear rack,Z screw
5 Speed Max no-working speed 17000mm/min
Max working speed 10000mm/min
6 Spindle Spindle power 2*5.5KW Water cooling spindle
Spindle rotate speed 0-24000r/min
7 operational mode Bujin servo
8 working voltage AC380V/50Hz
9 Command code G code
10 operating system Weihong system
11 waterproofing system Waterproof folding film, cooling water pipe
12 fuel loading system Automatic oiling system
13 screw rod High precision imported lead screw
