Homemade small grinding ball mill 1 ton 2 3 4 50 tons per hour

Product Description

Product Description
Product Description

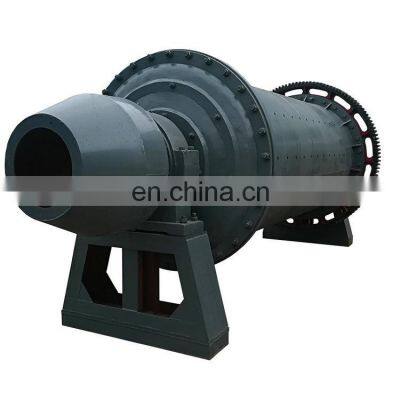

Wet dry ball mill 1 ton per hour:
Ball mill main parts : feeding part ,discharging part, ball mill cyclinder, transmission (reducer, gear, pinion, electric motor and electric control) and other major parts.

Ball Mill Features:
1) Ball mill is an efficient tool for grinding many materials into fine powder.
2) The ball mill is used to grind many kinds of mine and other materials, or to select the mine.
3) Ball mill is widely used in building material, and chemical industry.
4) There are two ways of grinding: the dry way and the wet way.
5) Ball mill can be divided into tabular type and flowing type according to differentexpelling mine.
6) To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains
grinding media.
7) As the barrel rotates, the material is crushed between the individual pieces of grinding media that
mix and crush the product into fine powder over a period of several hours.
8) The longer the ball mill runs, the finer the powder will be.
9) Ultimate particle size depends entirely on how hard the material you're grinding is, and the time
how long the ball mill runs.
Ball mill Working Principle:
Ball mill is a is horizontal type cylinder rotary device and outside the cylinder there is drive gear which drives the cylinder to rotate during the working process. Materials spirally and evenly go into the first cabin of the grinding machine through the feeding hollow shaft from the feeding device, and inside the first cabin, there are ladder lining boards or ripple lining board in which there are many steel balls with different specifications. The cylinder rotates and produces eccentric force to bring the steel balls to a certain height, and then the steel balls will fall down to impact and grind the materials. After being coarsely ground in the first cabin, the materials will go through the singlelayer partition board and into the secondary cabin in which there are flat lining board, and in the lining board there are steel balls to further grind the materials. Finally the powdery materials will be discharged from the discharging grating bar to complete the powder grinding process.
Wet dry gold ball mill for sale technicial parameters:

ModelRotation speed
(r/min)
Weight of
grinding media
(ton)
Size of feed opening
(mm)
Discharge size
(mm)
Capacity
(t/h)
Power
(kw)
Weight
(T)
Φ 900x1800381.5≤ 200.075-0.890.65-218.53.6
Φ 900x3000382.51≤ 200.075-0.891.1-3.5224.6
Φ 1200x2400323.8≤ 250.075-0.61.5-4.830-4512.5
Φ 1200x3000325≤ 250.074-0.41.6-530-4512.8
Φ 1200x4500327≤ 250.074-0.41.6-5.55513.8
Φ 1500x3000278≤ 250.074-0.42-5.875-9017
Φ 1500x45002714≤ 250.074-0.43-6.511021
Φ 1500x57002715≤ 250.074-0.43.5-813224.7
Φ 1830x30002411≤ 250.074-0.44-1018028
Φ 1830x64002423≤ 250.074-0.46.5-1521034
Φ 1830x70002425≤ 250.074-0.47.5-1724536
Φ 2200x55002130≤ 250.074-0.410-2237048.5
Φ 2200x65002131≤ 250.074-0.414-2628052.8
Φ 2200x75002133≤ 250.074-0.415-2947556

Ball mill parts:
Stone ball mill machine:
Packaging & Shipping
Working site
Stone ball mill machine working site of Zhengzhou Sinolion:
Our Services
1. Pre-sale service:
1) Sinolion will provide production line design, quotation sheet, working sites video, machinery photos, sample testing(gold ore, tin ore , iron ore, tungsten processing in laboratory).
2) Welcome to visit us at any time, we will pick you up.
2. Sale service:
1) Keep clients updated when our company gets advance payment.
2) Confirm production details with clients.
3) Take photos and send all pictures to customers during production.
4) Inspection and testing the product before delivery;
5) Clients are welcome to inspect the equipment when the equipment are ready to delivery.
6) logistics service if needed.
3. After Sale service:
1) Provide foundation drawing to the clients for installation.
2) Besides, our engineers are available to help with installation and workers training.
3) Repairing and maintenance if any problem during the warranty.
4) Spare parts and wearing parts will be offered with production cost in 10 years.
Company Information
FAQ
Question 1: What’s the delivery time after I pay the deposit ?
Answer: We will delivery the goods within 10-15 working days after receipt of the prepayment.
Question 2: Is mineral samples analysis available?
Answer: Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection.
Question 3: Do you have client in my country?
Answer: Our products have exported to Malaysia, Indonesia, the Philippines, Vietnam, Myanmar, Korea, Singapore, Thailand, Mongolia, Ghana, Sudan, Serbia, Kazakhstan, Canada, Nigeria, Australia, Chile, Brazil, Columbia, Ecuador, Peru, Bolivia, etc
Question 4: How long of your machine quality guarantee terms ?
Answer: Quality guarantee time is one year(wearing parts excluded).
