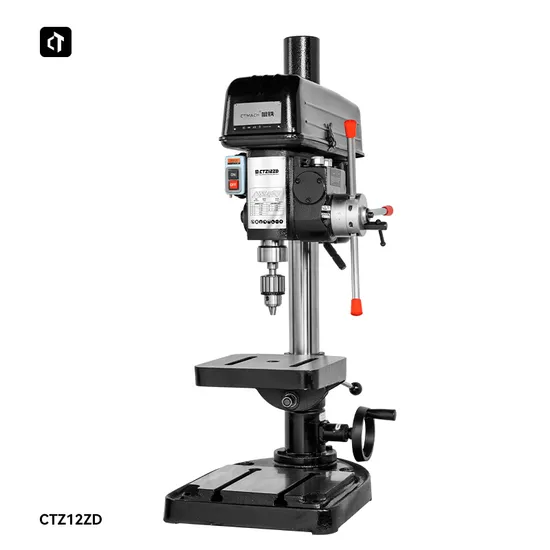

Ctz12zd Bench Drilling Machine

Product Description

Type	CTZ12ZD
Maximum drilling diameter	12 mm
Spindle maximum travel (manual)	100 mm
Spindle automatic feed stroke	90 mm
Spindle lower end taper hole	B16
Spindle speed series	5
Spindle speed range	480~4100 rpm
Spindle automatic feed speed	0.05, 0.08, 0.20 mm/r (3 types)
Distance from spindle axis to column surface	193 mm
Work surface size	265×265 mm
Base working surface size	250×300 mm
Distance from spindle end to table surface	0~215 mm
Distance from spindle end to base working surface	205~460 mm
Rotation angle of headstock around column	±180°
Electric motor	0.55 kw 380 v
Dimensions	690×425×1070 mm
Package Size	86×46×101cm
Net weight	115 Kg
Gross weight	140kg

Features
CTZ12ZD is a bench-type drilling machine with automatic tool feed, suitable for drilling, reaming, reaming, countersinking and countersinking on metal materials and other materials. The spindle feed of this machine has two modes: manual feed and automatic feed. The main shaft automatic feeding mechanism adopts pawl clutch device, manual feeding and automatic feeding can be quickly switched, has the advantages of high degree of automation, convenient use and adjustment, greatly reduces the labor intensity of the operator, and improves work efficiency. Widely used in instrumentation industry, machinery manufacturing department and repair department for single-piece and batch production.
Size/Weight
The appearance/package size of the product is measured manually, and there is a small error. It is normal, and the specific object shall prevail.
Machine package size 86x46x101cm
Net weight/gross weight of machine 115/140KG
Hydraulic forklifts or cranes are recommended for handling
Product display
Detaile Introrduce
Automatic Feed
Quick changeover between manual and automatic feeding is realized by the pawl clutch device.
B16 Spindle taper
The precision grinding spindle is matched with high-quality drill chuck to effectively improve the accuracy of the whole machine.

---
