Automatic Wire Straightening and Cutting Machine for Welding

Product Description

Product Description

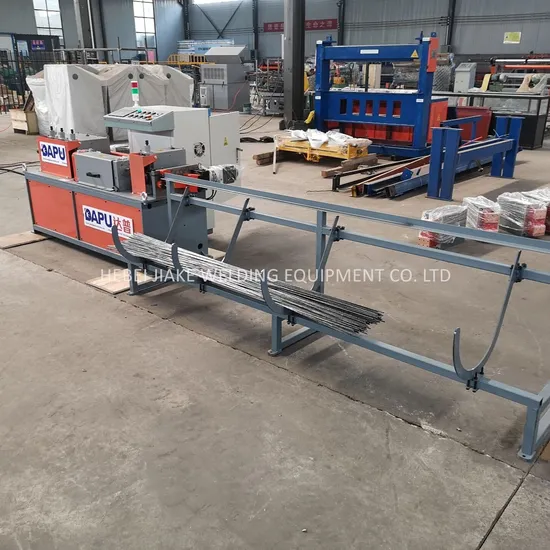

Wire straightening and cutting machine
High speed wire straighytening and cutting machine
Wire straightening and cutting machine mainly consists of tray bar rack, straightening rack, tractor cutting device, base support, motor rotation facility and electrical box. For different wire diameters, we have different machines for you to choose.
High speed wire straighytening and cutting machine

Model	GTY2-3.5	GTY2.5-6	GT3-8	GT6-12	GT4-12	GT6-14
Wire diameter (mm)	2-3.5	2.5-6	3-8	5-12	4-12	6-14
Cutting length (mm)	300-3000	500-6000	700-6000	1000-12000	800-12000	500-12000
Cutting error (mm)	±1	±1	±1	±1	±5	±5
Max. speed (m/min)	60-80	90-100	120	70-130	45	52
Straightening motor	4.0	4.0	11	22	7.5	11
Wire cutting motor (kw)	-	2.0	3	7.5	4	5.5

GTY2-3.5
GTY2.5-6	GT3-8
GT6-12	GT4-12

High speed wire straighytening and cutting machine
After Sales Service 1. Guarantee time: one year since the machine was at the buyer's factory but within 18 months against the B/L date.
2. Within guarantee time, if any components are broken under normal conditions, we can change for free.
3. Complete installation instructions, circuit diagram, manual operations, and machine layout.
4.Timely reply to your machine questions, 24 hours support service.

---
