Cross Table Round Column Z5045C/1 Multi-function Vertical Drilling Machine Tools

US$1,985.00
1-4 set
US$1,900.00
5+ set

Basic Info.

Model NO.
Z5045C/1
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Semiautomatic
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Max.drilling dia.
45mm
Spindle taper
MT4
Spindle travel
130mm
Spindle speed steps
6
Spindle speed range
50Hz 80-1250 60Hz 95-1500 rpm
Spindle feed steps
6
Spindle feed range
0.06-0.3 mm/r
Spindle box travel
250mm
Spindle box swivel angle
360°/+-90°
Table size
730*210mm
Table travel X/Y
500*205mm
Table vertical travel
570mm
Stand table size
417*416mm
Main motor power
1.5kw
Main motor speed
1400rpm
Transport Package
Plywood Case
Specification
1000*950*1850
Trademark
LUZHONG MACHINE TOOL
Origin
China
Production Capacity
2000 Pieces/Year

Packaging & Delivery

Package Size
100.00cm * 95.00cm * 185.00cm
Package Gross Weight
540.000kg

Product Description

Small Metal Cheap Z5045C/1 Vertical Drilling Machine Product Description
Product Parameters
Product main technical Specifications:
Specifications Z5045C/1
Max. Drilling dia. 45mm
Spindle taper M.T.4
Spindle travel 130mm
Step of speed 6
Range of spindle speed 50Hz 80-1250 r.p.m
60Hz 95-1500 r.p.m
Step of spindle auto-feeding 6
Range of spindle auto-feeding amount 0.06-0.30mm/r
Min.distance from spindle axis to column 290mm
Max.distance from spindle nose to worktable 700mm
Max.distance from spindle nose to stand table 1125mm
Max.travel of headstock 250mm
Swivel angle of headstock(horizontal) 360°
Max.travel of worktable bracket 600mm
Table Size 730×210mm
Size of stand worktable of avaliability 417×416mm
Forward and afterward travel of worktable 205mm
Left anf right travle of worktable 500mm
Vertical travel of worktable 570mm
Motor Power 1.5kw
speed of motor 1400rpm
Coolant pump power 0.04kw
Net weight/Gross weight 443/505kg
Packing size 1850x750x1000mm

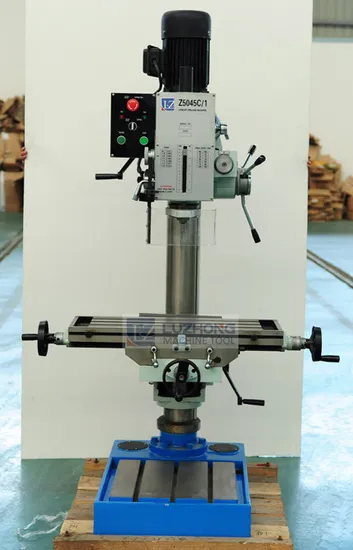

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
