Wl-Hbh High Speed Hot Bar Tin Soldering Machine China

Product Description

WL-HBH Wire Connector PCB Hot Bar Tin Soldering Machine
Introdution:
The hot bar soldering machine is mainly suitable for the hot bar soldering machine process between high-density Lvds, FPC, FFC, ACF, TAB, ultra-fine coaxial lines, wires and PCBs, and connectors. ○ Adopt PLC control system, pulse heating method, and cooperate with various alloy indenter(Titanium or molybdenum alloy indenter), accurate temperature control.

○ Touch screen display input, real-time temperature curve display, and all parameter setting browsing is simple and intuitive.
○ Power adaptive adjustment, the whole machine has leakage protection function, safe and reliable.
○ Using motor for pressurization, the welding position can be adjusted accurately, and the solder joints will be full and bright.
○ The platform can be used to pick and place materials, with a longitudinal stroke of 50MM, which can be customized according to needs.
Technique parameter:Features:

Model	WL-HBH
Rated voltage	220V, 50Hz
Temperature setting range	50-600ºC
Heating stage	1-4 stages
Hot head cooling method	air cooling
Indenter accuracy	±0.03mm
Temperature accuracy	±5ºC
Z-axis motion	screw drive
Z-axis travel	50mm
Drawing type automatic tin feeding	cylinder driven
Dimensions	450x560x850mm (width x length x height )
Weight	80KG
Heating power	2000W

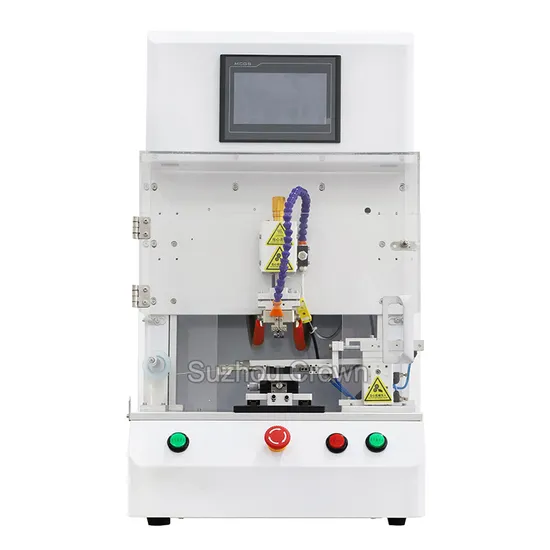

Product show:
Machine processing samples:
Packing & Shipping:
For small and light products packed by cartons,for large and heavy products packed by wooden

FAQ:

1.How to order?

Please contact my Email for much more details, you can place order with us directly or through ****** online transcation after confirmation.

2.What's your payment terms?

We accept trade assurance order, T/T,L/C, western union, Paypal etc.

3.How long does the production time?

Generally 3~7 days, if there's customized model or other request will be adjusted.

4.How do you packaged the products?

Small size machine, we will package it in standard neutral carton. Larrge size machine, we will package it in standard wooden cases.

5.What can you provide for us?

Our service We provide: · Best products and factory price. · On-time delivery and the shortest delivery time. · 1year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free and you need to pay for the delivery. · OEM and customized service. · User manuals will go with relative machines. · QC: All products will be checked before delivery. · Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers · Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance. · Operation Guidance: If you have any problem with operation, please feel free to contact us.

Company information:
Certificate:
Contact:
Pls contact Suzhou Crown for price inquiry or any other questions/doubt.

---
