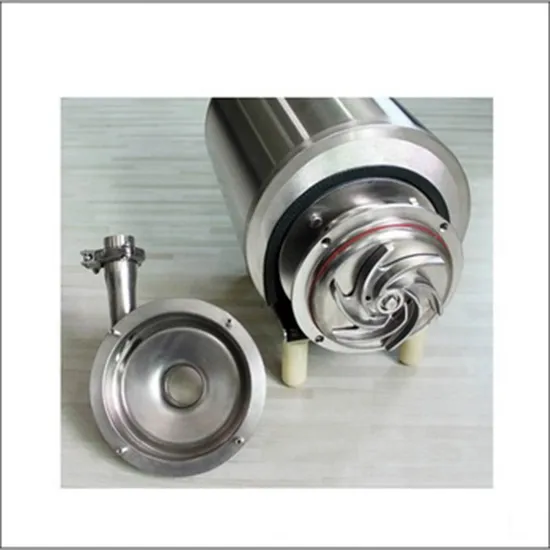

Wenzhou High Quality Sanitary Negative Pressure Pump

Product Description

Specifications :
1)Application:Belong to a turbine the diversion centrifugal pump can
extract the liqiud of the vacuum tank under the pressure of negative pressure 0.09Mpa .
2)Spec:3T-180T,0.75KW-75KW
Material:SUS304 SUS316L
the pump body,pump cover,impellerwhich is contact with medium material ,made of stainless steel SUS316L and SUSI304
Standard:DIN, SMS
Impeller:Open type impeller ,semi-close type impeller
Surface treatment:The parts contacted with medium is polished
Working condition;sanitary centrifugal pumps is a high and low level transmission ,as well as the level transmission ,
and has a amount of suction .
The max pressure of inlet:0.5MPa
Temperature range:-10°C to +140°C(EPDM)
washable mechanical sealing:
water pressure:Max 0.1MPa
3)Motor:
1. Configuration of "ABB" brand three-phase AC motor is in accordance with the International Electro-technical CommissionIEC60034.IEC60072 standard design comply with European "CE" marking requirements
2. The explosion-proof motor also available ,that can meet with the requirement of different applications .
3.It with excellent electric performance ,and with low noise,low vibration,
the protection grade is IP55,insulation grade is F.
4 .Operate in voltage:
≤3Kw,220-240V/380-420V,/Y
≥3Kw,380-420V/660-690V, /Y
5.frequency:50Hz/60Hz
6. working method:continuous(SI)
7.rotate speed:the standard rotate speed is 2900r/min

---
