Basic Info.
Measure Range
0.1~199.9m/S
Displacement
0.001~1.999 mm (P-P)
Transport Package
Gift Box and Carrying Case
Trademark
BESTONE, BENETECH
Production Capacity
100000 Pieces/Year
Product Description

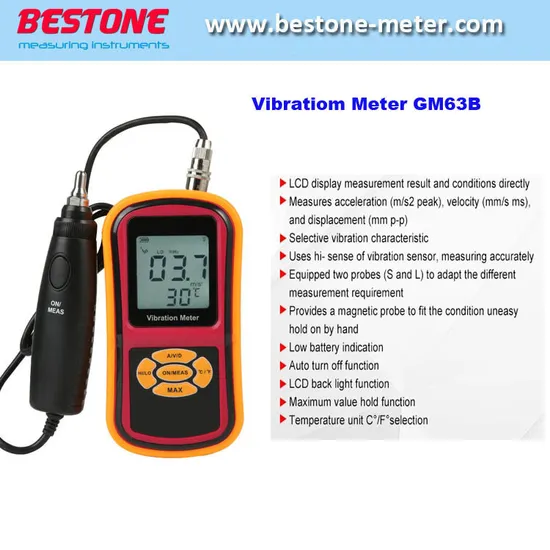

This Professional Vibration Meter adopts piezoelectric effect of artificial polarized ceramic for design. It is suitable for monitoring all kinds of vibrating mechanical facility, specially the vibration measurement of rotating and reciprocating machinery.
It measures Acceleration, Velocity and Displacement, in which widely used in mechanical manufacturing industry, electric power metallurgy and general aviation industry
Features :
* Simple to use, the structure is compact, portable for carrying with measurement
* Display measurement value and state instantly
* 3 measurements in one meter: Acceleration, Velocity and Displacement
* Different vibration frequency selection
* High sensitivity probe for accurate measurement
* Low power indication
* Auto Power-off
* LCD Backlight
* Max reading lock,temperature unit shift, environment condition display
Specifications:
* Vibration pickup: Piezoelectric ceramic accelerometer (shear-type)
* Measurement Range:
Acceleration: 0.1 ~ 199.9m/s2 peak
Velocity: 0.1 ~ 199.9 mm/s rms
Displacement: 0.001 ~ 1.9999mm p~p
(Velocity and displacement range is limited by acceleration 199.9m/s2)
* Accuracy: ±5% ±2digits
* Frequency Range
Acceleration: 10Hz ~ 1kHz (LO), 1kHz ~ 15kHz (HI)
Velocity: 10Hz ~ 1kHz (LO)
Displacement: 10Hz ~ 1kHz (LO)
* Displays update cycle: 1 second
* LCD display: 3½ digits display
* Max hold function
* Temperature selection
* Operation condition display
* Power Supply: 9V Alkaline Battery (included)
* Static current: ≤20µA
* Operating current: ≤20mA
* Battery Life: 20hrs. continuous use
* Auto Power-off: Turns off automatically in 60sec
* LCD Backlight: 7sec
* Operating Environment
Temperature: 0 ~ 40°C (32 ~ 104°F)
Humidity: 30 ~ 90% R.H.
* Low Battery Indication: 6.9V ±0.2V
* Size: approx. 80 x 38 x 150mm
* Packing method: Gift box + PP box
* Weight: 200g
| Technical parameter | Technical specification |
| Vibration pickup | Piezoelectric ceramic accelerometer(shear-type) |
| Measurement range of acceleration | 0.1~199.9m/s2peak |
| Measurement range of velocity | 0.1~199.9mm/s rms |
| Measurement range of displacement | 0.001~1.999mm p-p Velocity and displacement range is limited by acceleration199.9m/s2 |
| Measurement accuracy | ±5% ±digits |
| Measurement frequency range of acceleration | 10Hz~1KHz(LO) 1KHz~15KHz(HI) |
| Measurement frequency range of velocity | 10Hz~1KHZ (LO) |
| Measurement frequency ange of displacement | 10Hz~1KHz (LO) |
| Displays update cycle | 1 seconds |
| LCD display | 3 1/2 digits display |
| Single output | AC output 2 V peak (display full scale) Load impedance 10KΩ or more earphones can be connected |
| Power supply | 9V battery |
| Stand-by current | ≤15μA |
| Operating current | ≤25mA |
| Battery life | 20H continuous use |
| Auto power-off function | Turns off automatically after 60 seconds |
| LCD backlight function | 7 seconds |
| Operating temperature range | 0~40C |
| Operating humidity range | 30~90%RH |
| Low battery indication | 6.4V±0.2V |
| Dimensions | 72×35×145mm |
| Weight | 229g (not including battery ) |
| Temperature range | -10ºC~80ºC |
| Temperature accuracy | ±2ºC |
