Yz Series Large Capacity Industrial Cleaner Ultrasonic Cleaning Machine Ultrasonic Washing Machine

Product Description

Product DescriptionEfficient surface cleaning equipment - Ultrasonic cleaning machine
Ultrasonic waves propagate in the liquid, so that the liquid and cleaning tank vibrate together under the ultrasonic frequency, the liquid and cleaning tank vibration has its own inherent frequency, this vibration frequency is the frequency of sound waves, so people hear the humming sound. With the continuous development of the cleaning industry, more and more industries and enterprises use the ultrasonic cleaning machine.
Ultrasonic cleaning machine is suitable for cleaning clock and watch parts, hardware and machinery small parts, lenses, glasses frames, jewelry, scientific research laboratory use; also suitable for home use, cleaning dentures, glasses, knives and forks, watches, jewelry, etc..

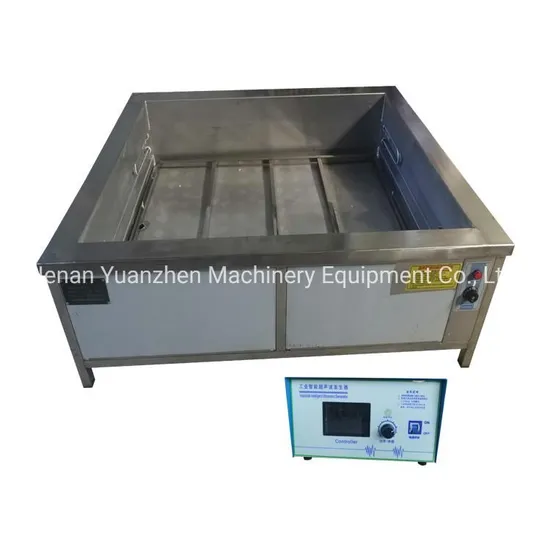

Single-slot ultrasonic cleaning machine consists of two parts: ultrasonic generator and cleaning tank, the generator adopts imported high-power power supply module, stable performance, and can change the size of the cleaning tank according to customer requirements, or add heating function.
Structural principle
Ultrasonic cleaning machine principle is issued by the ultrasonic generator high-frequency oscillation signal, through the transducer into high-frequency mechanical oscillation and spread to the medium - cleaning solvent, ultrasound in the cleaning liquid sparse and dense forward radiation, so that the liquid flow and produce tens of thousands of tiny bubbles of 50-500μm diameter, the presence of The tiny bubbles in the liquid vibrate under the action of the acoustic field. These bubbles in the ultrasonic longitudinal propagation of the negative pressure zone formation, growth, and in the positive pressure zone, when the sound pressure reaches a certain value, the bubble rapidly increased, and then suddenly closed.
And in the bubble closure when the shock wave, in its surroundings to produce thousands of atmospheric pressure, the destruction of insoluble dirt and make them scattered in the cleaning fluid, when the group particles are wrapped in oil and adhering to the surface of the cleaning parts, the oil is emulsified, solid particles are separated, so as to achieve the purpose of cleaning parts purification. In this is called "cavitation" effect of the process, the bubble closure can form a few hundred degrees of high temperature and more than 1000 air pressure instant high pressure.Product Features
1. ultrasonic cleaning effect is good, simple operation.
2. the sound people hear is the frequency of 20-20000Hz acoustic signal, higher than 20000Hz sound waves called ultrasonic, the transmission of sound waves in accordance with the sine curve longitudinal propagation, resulting in a large number of small bubbles.
3. local tensile stress in the liquid and the formation of negative pressure, the reduction in pressure so that the original gas dissolved in the liquid supersaturation, and escape from the liquid, becoming a small bubble.
4. The strong tensile stress "tears" the liquid into a cavity, called "cavitation", which can effectively remove the stains attached to the surface of the workpiece.
Common Model

Model	Frequency(kHZ)	Capacity(L)	Tank size(L*W*H mm)	Ultrasonic power(W)	Heater power(W)	Timer(H)	Heater(ºC)
YZ-120	28/40	38	500*300*250	0~600	1500	0~99	20~95
YZ-180		61	500*350*350	0~900	1500
YZ-240		88	550*400*400	0~1200	3000
YZ-300		108	600*450*400	0~1500	3000
YZ-360		135	600*500*450	0~1800	4500
YZ-480		175	700*500*500	0~2400	6000
YZ-600		264	800*600*550	0~3000	6000
YZ-720		360	1000*600*600	0~3600	9000
YZ-900		560	1000*800*700	0~4500	12000
Support customized production (Click here to get accurate quotation)

How to select the right type?
Attention:
The selection of screening equipment and your use of demand has a lot to do with the following information you need to provide.
If you have ever used the screen machine Kindly please tell us its Model,Size,Length, width and height.
If never use the machine until now Please offer us the info about material as below:
1.The size of the workpiece to be cleaned.
2.The characteristics of the dirt attached to the surface of the workpiece and the difficulty of cleaning.
3.Other usage requirements.
4.Voltage(V),Frequency(Hz),Phase(P)---------------------------------------------------------------------------------------------------------In order to make it more convenient for you, you can compare the following table to clear your machine configuration(You can also click this link to contact us directly)

General requirements	Model	YZ - 120 / 180 / 240 / 300 / 360 / 480 / 600 / 720 / 900
	Frequency(kHZ)	28/40
	Main Material	Stainless Steel(304/316L)·Carbon Steel(Q235)
	Capacity(L)	38-560
	Ultrasonic power(W)	0~600 - 0~4500
	Heater power(W)	1500 - 12000
	Timer(H)	0~99
	Heater(ºC)	20~95
Special requirements	Overall height of the fuselage	Please communicate specifically
	Internal spray(mm)	PTFE / ePTFE / WC / Al2O3
	Other	Please click here to contact us

Show DetailsProduct Show
We provide you with quality products and services. ---------------------------------------------------------------------------------------------------------Please click on the pictures below to learn about related products ApplicationApplication Scenario Description:
Ultrasonic cleaning machine is widely used in surface spraying treatment industry, machinery industry, electronics industry, medical industry, semiconductor industry, watch and jewelry industry, optical industry, textile printing and dyeing industry, other industries, etc.
Common cleaning materials are:Ultrasonic cleaning machine is suitable for cleaning clock and watch parts, hardware and machinery small parts, lenses, glasses frames, jewelry, scientific research laboratory use; also suitable for home use, cleaning dentures, glasses, knives and forks, watches, jewelry, etc. Customer CaseWhy Choose UsWhat can I do for you?
1.Rich production experience
2.Numerous industry application cases
3.Provide suitable design solutions according to user requirements
4.Reliable quality and cost-effective price
5.Perfect service
6.International sales route
Factory Display Creating a trustworthy factory
About YuanzhenHenan Yuanzhen Machinery Equipment Co., Ltd. is an enterprise integrating production, technology research and development, and trade. Our main products are screening equipment and conveying equipment, and we can also provide design, production and installation of other related equipment.
Yuanzhen's sales network has penetrated the whole China, and many products have gone to the world through other foreign trade companies. Now it is necessary to build a more complete sales network so that users in more countries can use our products and feel our dedicated service.
Yuanzhen sincerely treat every customer, hope to make friends with people from all over the world, and very looking forward to establishing a long-term win-win partnership with you. Our Team & ServiceBasis service1.Your sample material can be free analysis in our laboratory. 2.24 hours a week online & quick response within 12 hours. 3.Production lead time and delivery time guaranteed. Customized services 1.Professional R & D team to develop the new products as you requirements. 2.Help customers to develop the local market 3.All packing and shipping can customized as per your requirements.
After-sale servicesAfter customers received the goods,if have any questions or quality problems, Our customer service Dept. will
be always available. Packaging & Shipping---------------------------------------------------------------------------------------------------------All packing and shipping can customized as per your requirements.Please click here to contact usFAQQ:What is the quality of the product?
A:We have complete quality control system. We have team leader, section leader and quality control manager to control the quality by each step. Welcome to our factory for cooperation!
Q:What factors I need to get a quotation?
A: Name & bulk density of materials;Capacity per hour;Mesh size and decks;Material of the machine;Voltage Frequency(Hz).
Q:How about price?
A:We are a factory, we provide you with quality and reliable products while giving you better prices, "high cost performance" - that's what we are.
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
Q: How do your after-sale service work if the product got damaged?
A: In the guarantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of cost.(note: Vulnerable parts do not include.)
Q:Service and Payment Terms?
A:We usually accept T/T, L/C; T/T: 30% in advance as down payment, the balance before delivery; We take pictures of finished products before delivery.
