Roll Paper Die-Cutting and Creasing Machine 210times/Min

Product Description

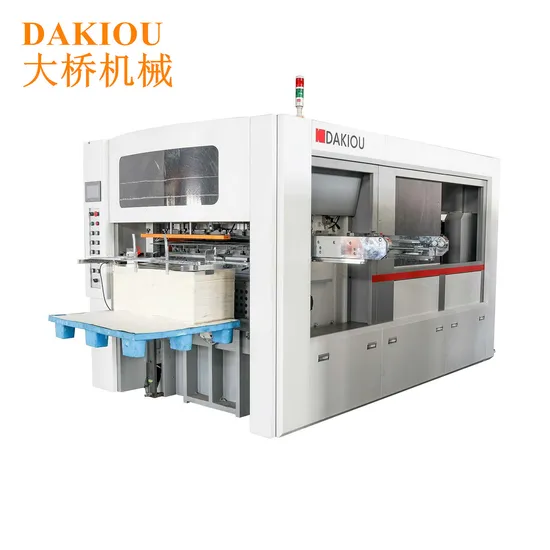

Roll paper die-cutting machine
Description:
PY-950 is an ideal and professional machine in die-cutting creasing and embossing various PE coated paper, normal paper, corrugating paper and plastic material. It applies to paper cup, paper box, medical package, wine package, food package and other environmental protection products. It adopts micro-computer, HMI, servo positioning, alternating current frequency converter, automatic counting, photoelectric rectifying, pneumatic lock cutting plate, electromagnetic clutch, centralized oil lubrication, , overload protection and distinctive gearing. All of these is the guarantee of steady pressure, precise positioning, smooth running, safety and reliability operation.
Technical Specification

Type	PY-950	PY-1200
Cut Precision:	± 0.10mm
Production capacity	150-210times/min
Maximum cutting size:	950 X540mm	1200*640mm
Suitable Material:	100-800G/M2 PE coated paper corrugating paper plastic material
Maximum Pressure:	350T
Total Power:	14KW
Total Weight:	6.3T	8.4T
Overall Dimension:	4200 X 2100 X 1850 mm
Working Air Source:	Air pressure 0.5-0.7MPa (Need to buy compressor)

FAQ:
1.Q:Are your company a manufacturer or trading company?
A:We are a manufacturer with ten years of exporting experience by own trading company

2.Q:Where is your factory? How can I get there?
A:Our factory is located in wenzhou City, Zhejiang Province. It takes about one and a half hours by train from Shanghai to our city. all of our customers can take the flight to wenzhou international airport first, and then we can send a car to pick up you.

3.Q:Can your products be customized?
A: Almost all of our products can be customized, including the sizes, color, logo, package and so on. OEM orders are highly welcome.

4.Q . how's the delivery time ?
A. Usually it will take about 3-4 weeks for production,all of our machinery shall be packed well with film to be water proof, and then loading and fix in a wooden case

Ruian Daqiao Packaging Machinery Co.,Ltd.
No.46,North youdian road,Linyang industrial zone ,Ruian City,Zhejiang Province,China
Tel:0086-577-65593666|Fax:0086-577-65595666

Website:daqiao3066.en.made-in-china.com

---
