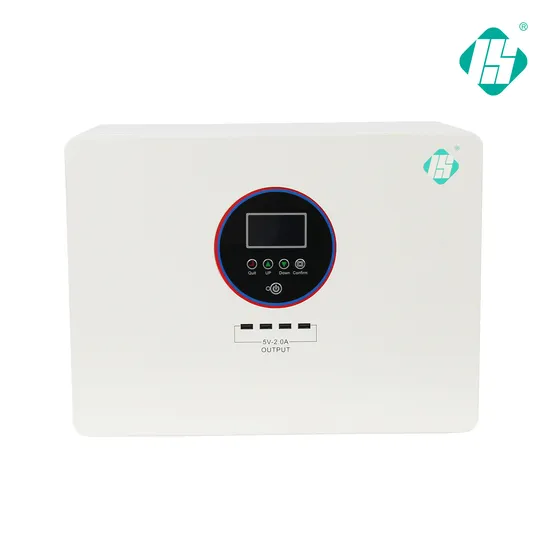

Low-Frequency 25.6V 1.2kw Offgrid Solar Inverter Built-in Battery Charger 1.28kwh LiFePO4

Product Description

All ine one 25.6V 1.2kw Offgrid Solar Inverter Built-in Battery Charger 1.28kwh LiFePO4 Detailed Photos

Model No.	M-BOX1200
Rated power:	1200W
Battery voltage:	25.6V
Battery Type:	LiFePo4/25.6V52AH
Battery Capacity:	1.28KWH
Net Weight(KGS):	20KG
Gross Weight (KGS):	22KG
INPUT
Phase:	L+N+G
AC Input range:	110V:85-138VAC;220V:170-275VAC
Input Frequency range:	45Hz~65Hz
OUT PUT
Output voltage:	inverter mode:110VAC/220V+-5%;AC mode:110VAC/220VAC+-10%;
Frequency range (AC mode)	Automatic tracking(
Frequency range(inverter mode )	50Hz/60Hz +-1%
Over load capacity	AC mode:(100%~110%:10min;110%~130%:1min;>130%:1s;) (100%~110%:10mins;110%~130%:1min;>130%:1min;)
	Inverter Mode:(110%~110%:30s;110%~130%:10s;>130%:1s;)
Peak current ratio	3:1 MAX
Conversion time	<10ms(Typical loads)
Wave form	Pure sine wave
Eficiency	>88%
Protection functions	short circuit protection,overtemperature protection,etc.
Built in solar charge controller MPPT
Max charge current()	30A
Battery voltage	25.6V
PV input voltage range,	30V-60V
Max PV input(W)	550W
Cooling method:	Fans cooling
Environmental conditions
Operating temperature	0C-40c( Battery life decreases at ambient temperatures above 25 degrees Celsius)
Operation humidity	<95% (without condesing)
Operating altitude	<1000m(with increase of 100m,it will reduce output of 1%) max5000m
Noise	<58dB(distance to machine 1m)
Management
Display	LCD+LED

FAQ
1. What types of loads can the M-Box1200 handle? The M-Box1200 is designed to handle a wide range of load types due to its power frequency design and built-in isolation transformer and inductance. It can support both resistive and inductive loads, making it suitable for various applications.
2. Does the M-Box1200 provide pure sine wave output? Yes, the M-Box1200 provides pure sine wave output, which ensures that connected electrical equipment operates smoothly and is protected from potential damage caused by irregular power supply.
3. What is the battery capacity of the M-Box1200? The M-Box1200 has a built-in 1280Wh lithium battery pack, which allows for extended use and reliable backup power in case of a mains power failure.
4. Does the M-Box1200 have UPS functionality? Yes, the M-Box1200 includes UPS (Uninterruptible Power Supply) functionality, allowing for fast switching between power sources to ensure uninterrupted power supply to connected devices.
5. What kind of batteries are used in the M-Box1200? The M-Box1200 uses high-end lithium iron phosphate (LiFePO4) cells, known for their low internal resistance, high safety, high cycle life, and long lifespan, providing reliable and efficient energy storage.
6. Can the M-Box1200 be used for solar power applications? Yes, the M-Box1200 is equipped with a built-in MPPT (Maximum Power Point Tracking) controller, making it highly efficient for solar charging. This allows it to be used effectively in solar power systems.
7. How can I adjust the settings on the M-Box1200? The settings of the M-Box1200 can be adjusted using the LCD display interface. This user-friendly interface allows for easy customization of parameters to suit different working environments.
8. What protection features are included in the M-Box1200? The M-Box1200 includes multiple protection features, such as low voltage, high voltage, high temperature, short circuit, leakage, overcurrent, and overload protection, ensuring the safety of the unit and connected devices.
9. What types of output does the M-Box1200 provide? The M-Box1200 provides dual AC output through universal sockets, compatible with various international plug standards. It also includes four 5V-2A USB DC outputs, making it convenient to charge small electronic devices.
10. Is the M-Box1200 suitable for outdoor use? Yes, the M-Box1200 is designed to be portable and easy to install, making it suitable for outdoor activities such as camping, exploration, and rescue operations. Its robust design ensures reliable performance in various environments.

---
